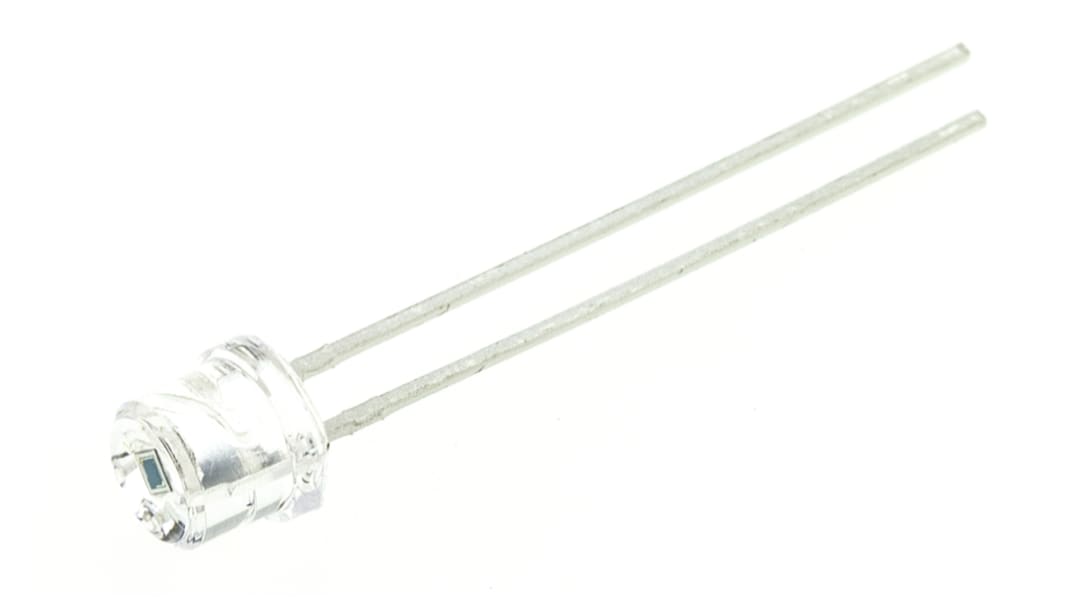

Osram Opto SFH 203 P IR + Visible Light Si Photodiode, 75 °, Through Hole 5mm package

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

PIN Photodiodes - 5mm (T-1 3/4) Package

This family of photodiodes, from OSRAM Opto Semiconductors, come in standard 5mm (T-1 3/4) through-hole packages. They are designed to detect either full spectrum or visible light and come in clear packages. Photodiodes with the daylight filter option are available for blocking out ambient visible light. Suitable applications for the 5mm PIN photodiodes include; high speed photointerrupters, industrial electronics and for control/drive circuits.

5mm (T-1 3/4) packages
Clear plastic packages
Through-hole mounted
Radiant sensitive area: 1 x 1 mm²
Variety of acceptance angles
Wavelength range: 400 to 1100 nm
Short switching time

Photodiodes, OSRAM Opto Semiconductors

Specifications
Attribute Value
Spectrums Detected Infrared, Visible Light
Wavelength of Peak Sensitivity 850nm
Package Type T-1 3/4
Mounting Type Through Hole
Number of Pins 2
Diode Material Si
Minimum Wavelength Detected 400nm
Maximum Wavelength Detected 1100nm
Length 5.9mm
Width 5mm
Height 5mm
Polarity Forward
Peak Photo Sensitivity 0.62A/W
Angle of Half Sensitivity 75 °
5 : Next working day (AU stock)
360 : 5 working days (Global stock)
Price (ex. GST) Each (In a Pack of 5)
$ 1.74
(exc. GST)
$ 1.91
(inc. GST)
units
Per unit
Per Pack*
5 - 20
$1.74
$8.70
25 - 95
$1.604
$8.02
100 - 245
$1.51
$7.55
250 - 495
$1.476
$7.38
500 +
$1.45
$7.25
*price indicative
