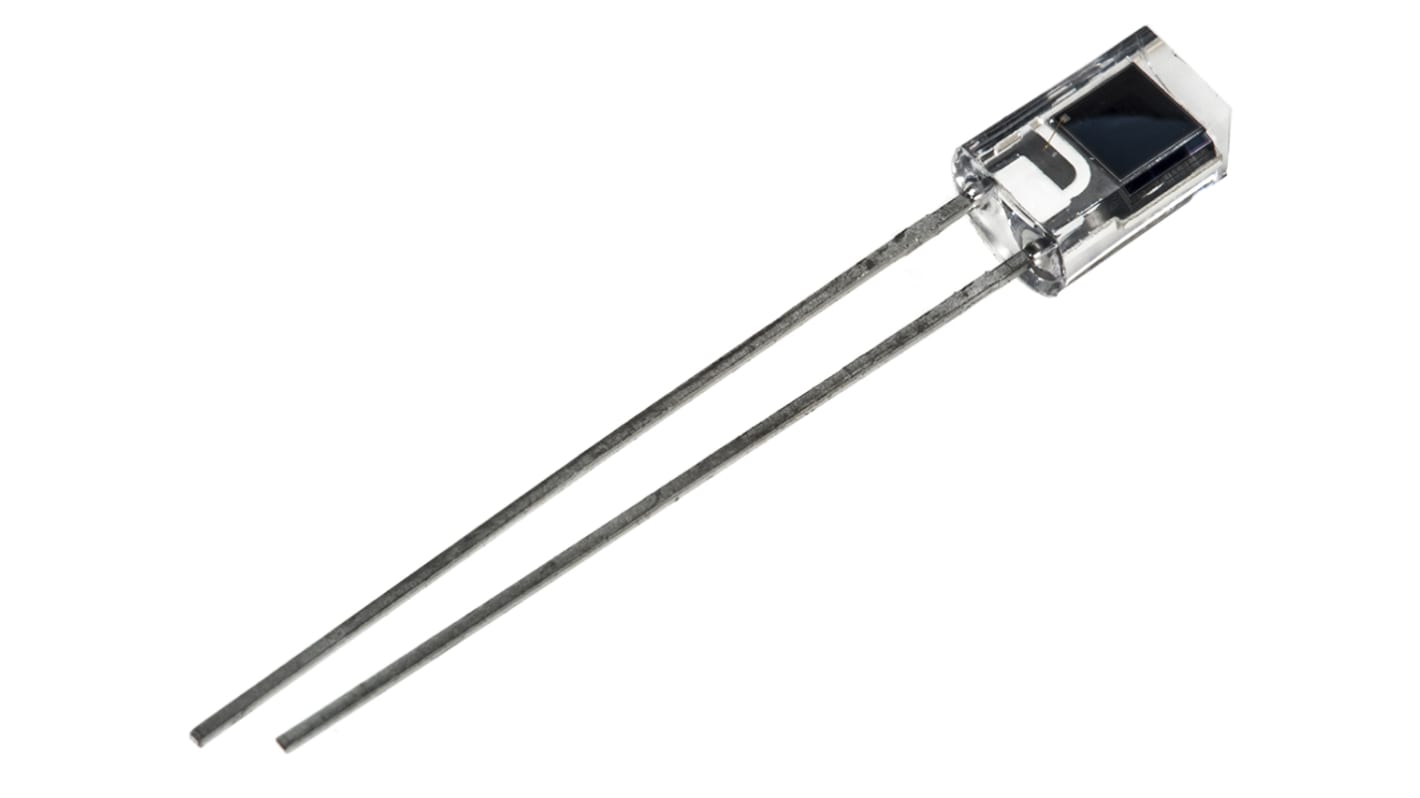

ams OSRAM, SFH 206 K IR + Visible Light Si Photodiode, Through Hole 5mm package
- RS Stock No.:
- 654-8659
- Mfr. Part No.:
- SFH 206 K
- Brand:
- ams OSRAM
40 In AU stock for next working day delivery
690 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$1.678
(exc. GST)
$1.846
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 245 | $1.678 | $8.39 |
| 250 - 495 | $1.636 | $8.18 |
| 500 + | $1.614 | $8.07 |
| *price indicative | ||
- RS Stock No.:
- 654-8659
- Mfr. Part No.:
- SFH 206 K
- Brand:
- ams OSRAM
Technical data sheets
Legislation and Compliance
Product Details
PIN Photodiodes Sidelooker Package
A range of photodiodes, from OSRAM Opto Semiconductors, are in Sidelooker through-hole packages.
The SFH 206 K, from OSRAM Opto Semiconductors, is a PIN photodiode within a Sidelooker package. The SFH 206 K has a 5mm LED clear plastic package and is through-hole mounted. Suitable applications for this photodiode include; photointerrupters, industrial electronics, computer-controlled flashes and for control/drive circuits.
The SFH 206 K, from OSRAM Opto Semiconductors, is a PIN photodiode within a Sidelooker package. The SFH 206 K has a 5mm LED clear plastic package and is through-hole mounted. Suitable applications for this photodiode include; photointerrupters, industrial electronics, computer-controlled flashes and for control/drive circuits.
Features of the SFH 206 K photodiode:
Side looking package
Through-hole mounted
5mm clear package
Radiant sensitive area: 2.65 mm²
For 400 to 1100 nm applications
Short switching time
Acceptance angle: 120°
Side looking package
Through-hole mounted
5mm clear package
Radiant sensitive area: 2.65 mm²
For 400 to 1100 nm applications
Short switching time
Acceptance angle: 120°
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Photodiodes, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Wavelength of Peak Sensitivity | 850nm |
| Package Type | T-1 3/4 |
| Mounting Type | Through Hole |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Length | 5.1mm |
| Width | 4.1mm |
| Height | 6.9mm |
| Angle of Half Sensitivity | 60 ° |
| Peak Photo Sensitivity | 0.62A/W |
| Polarity | Forward |
