Product Details

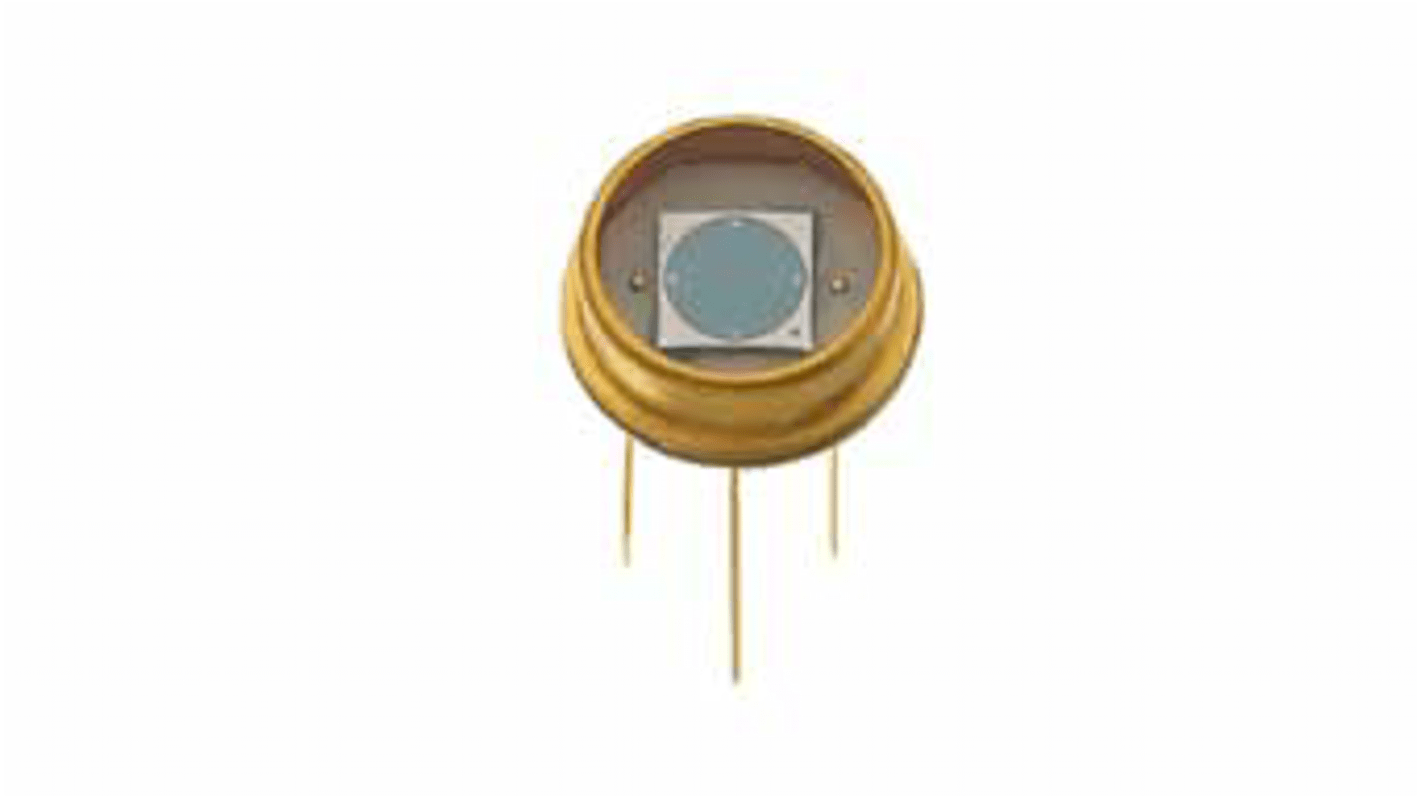

OSI Photoconductive Series Photodiodes
The Photoconductive series, from OSI Optoelectronics, are planar diffused silicon photodiodes designed for high speed and high sensitivity applications.Their spectral range (350-1100nm) makes the Photoconductive series suitable for visible and near IR applications. These general purpose photodiodes are suitable for applications including; pulse detectors, bar code readers, optical remote control, optical communications, medical equipment and high speed photometry.
Features of the Photoconductive series:
High responsivity
Low capacitance
Low dark current
Wide dynamic range
High responsivity
Low capacitance
Low dark current
Wide dynamic range
Photodiodes, OSI Optoelectronics
Specifications
Attribute | Value |
---|---|
Spectrums Detected | Infrared |
Wavelength of Peak Sensitivity | 970nm |
Package Type | TO-18 |
Mounting Type | Through Hole |
Amplifier Function | No |
Number of Pins | 3 |
Diode Material | Si |
Minimum Wavelength Detected | 350nm |
Maximum Wavelength Detected | 1100nm |
Length | 4.64mm |
Height | 5.08mm |
Peak Photo Sensitivity | 0.65A/W |
Series | D |
Typical Rise Time | 6ns |
