Vishay, VEMD1160X01 Si Photodiode, Surface Mount 0805
- RS Stock No.:
- 161-2166
- Mfr. Part No.:
- VEMD1160X01
- Brand:
- Vishay
50 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 25)
$0.97
(exc. GST)
$1.07
(inc. GST)
| Units | Per unit | Per Pack* |
| 25 - 725 | $0.97 | $24.25 |
| 750 - 1475 | $0.952 | $23.80 |
| 1500 + | $0.931 | $23.275 |
| *price indicative | ||
- RS Stock No.:
- 161-2166
- Mfr. Part No.:
- VEMD1160X01
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

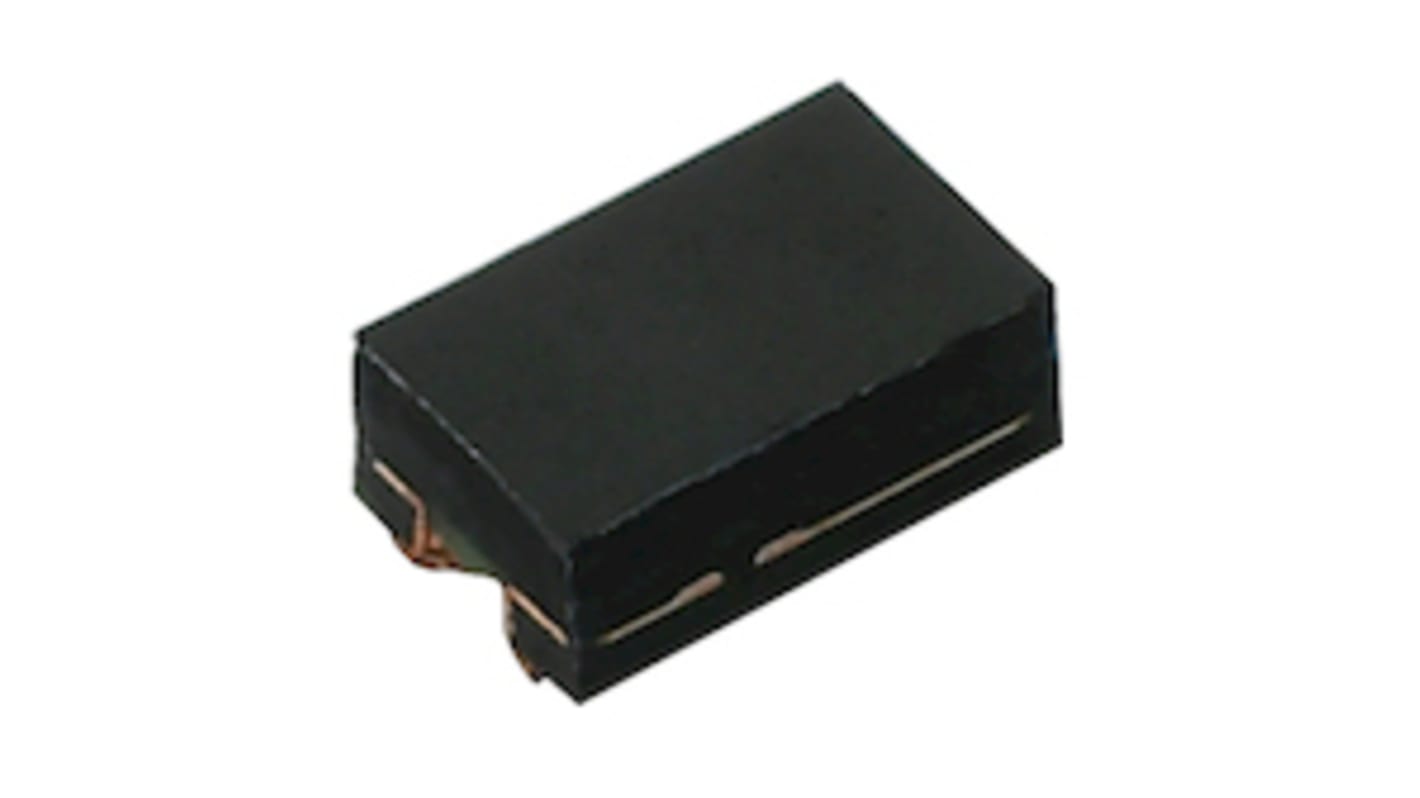

VEMD1160X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse. It is a low profile surface mount device (SMD) including the chip with a 0.23 mm2 sensitive area and a daylight blocking filter.
Package type: surface mount
Package form: 0805 top view
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85
Radiant sensitive area (in mm2): 0.23
Daylight blocking filter
AEC-Q101 qualified
High photo sensitivity
High radiant sensitivity
Excellent Ira linearity
Fast response times
Angle of half sensitivity: ϕ = ± 70°
Floor life: 72 h, MSL 4, according to J-STD-020
APPLICATIONS:
High speed photo detector
Small signal detection
Proximity sensors
Package form: 0805 top view
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85
Radiant sensitive area (in mm2): 0.23
Daylight blocking filter
AEC-Q101 qualified
High photo sensitivity
High radiant sensitivity
Excellent Ira linearity
Fast response times
Angle of half sensitivity: ϕ = ± 70°
Floor life: 72 h, MSL 4, according to J-STD-020
APPLICATIONS:
High speed photo detector
Small signal detection
Proximity sensors
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Wavelength of Peak Sensitivity | 840nm |
| Package Type | 0805 |
| Amplifier Function | No |
| Mounting Type | Surface Mount |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 700nm |
| Maximum Wavelength Detected | 1070nm |
| Typical Fall Time | 80ns |
| Length | 2mm |
| Width | 1.25mm |
| Height | 0.85mm |
| Breakdown Voltage | 20V |
| Typical Rise Time | 60ns |
| Automotive Standard | AEC-Q101 |
| Series | VEMD |
| Short Circuit Current | 1.8µA |
