- RS Stock No.:
- 543-897
- Mfr. Part No.:
- TS25D
- Brand:
- Fluke Networks
Stocked by manufacturer – available for delivery 11/06/2024
Added
Price (ex. GST) Each
$642.00
(exc. GST)
$706.20
(inc. GST)
Units | Per unit |
1 + | $642.00 |
- RS Stock No.:
- 543-897
- Mfr. Part No.:
- TS25D
- Brand:
- Fluke Networks
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

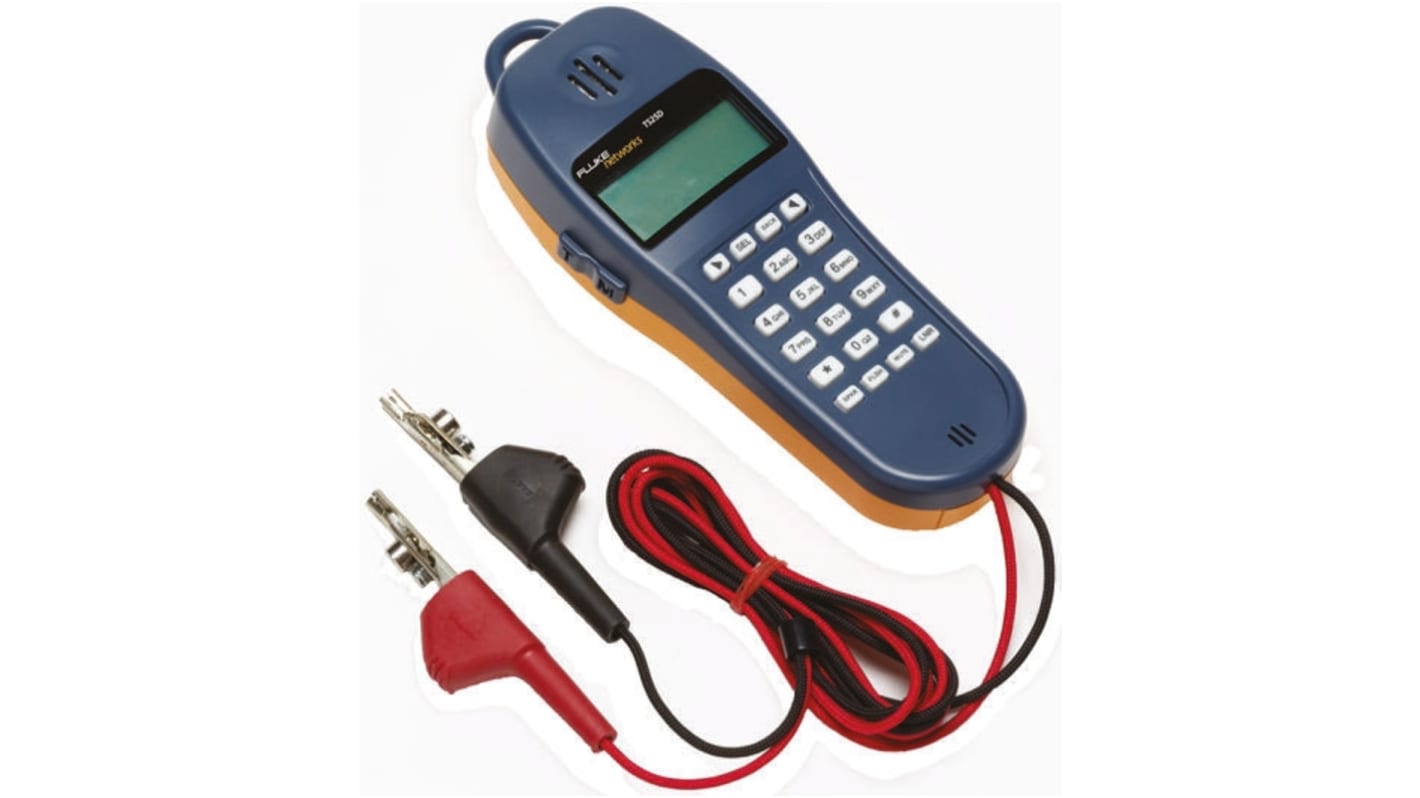

Fluke TS25D
Data lockout and data lockout override
DSL/POTS filtering technology allows user to safely draw dial tone from a pair that is carrying voice and ADSL without downing the ADSL service
Built-in analog tone generator for tracing and identifying wires with a probe
DTMF digit-grabbing capability
Talk battery to supply power to non-powered (dry) pairs to carry voice conversation
Row/column tones for single tone dialing
High voltage Lockout/Low voltage Lockout
Continual data detection in monitor mode
Amplified speaker for hands-free monitoring
Programmable phonebook stored in non-volatile memory
Speed dial (10 memories, 23 digits each)
Selectable flash and pause duration
Battery level indicator
DSL/POTS filtering technology allows user to safely draw dial tone from a pair that is carrying voice and ADSL without downing the ADSL service
Built-in analog tone generator for tracing and identifying wires with a probe
DTMF digit-grabbing capability
Talk battery to supply power to non-powered (dry) pairs to carry voice conversation
Row/column tones for single tone dialing
High voltage Lockout/Low voltage Lockout
Continual data detection in monitor mode
Amplified speaker for hands-free monitoring
Programmable phonebook stored in non-volatile memory
Speed dial (10 memories, 23 digits each)
Selectable flash and pause duration
Battery level indicator
Note
This product has been safety certified for indoor use only.
Standards
Conforms to relevant European Union directives.
Test Telephones
All the telephones in this range have a high impedance passive monitor, last number redial, tone-pulse dialling and time-break recall.
Specifications
Attribute | Value |
---|---|
Manufacturer k.i.m. | Fluke Networks |
Model Number p | FLUKE TS25D |
Pause | Yes |
Hands Free | Yes |
ADSL Compatible | Yes |
Dial Type | Digital |
Low Battery Indication | Yes |
High Voltage Detection and Lockout | Yes |
Auto Powerdown | Yes |
Power Source | Battery |
Battery Type | 9V |
Weight | 284g |
Maximum Operating Temperature | +50°C |
Length | 260mm |
Width | 68mm |
Dimensions | 260 x 68 x 40mm |
Height | 40mm |
Minimum Operating Temperature | 0°C |
