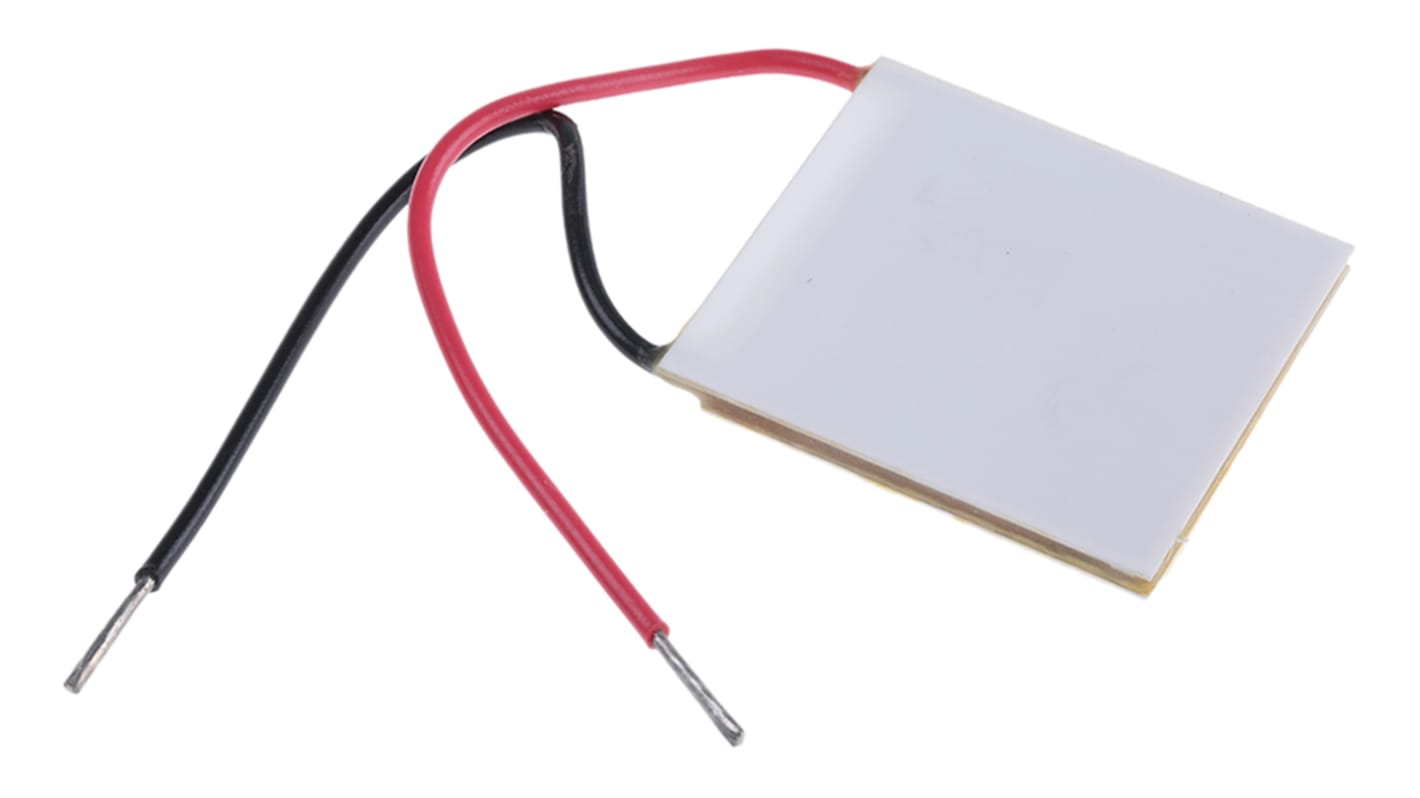

Peltier Module, 151.4W, 15.4A, 15.8V, 40 x 40mm

  • RS Stock No. 693-5094
  • Mfr. Part No. ETC-128-14-06-E
  • Manufacturer Adaptive
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RU
Product Details

Peltier Effect Thermoelectric Module

Thermoelectric Modules - Peltier Effect

A range of semiconductor thermoelectric devices working on the Peltier effect. When supplied with a suitable electric current, they can either cool or heat. When subject to an externally applied temperature gradient these devices will generate a small amount of electrical power.The larger devices can be used for cooling or controlling the temperature of sub-assemblies. The small size of the mini module makes it ideally suited for cooling miniature electronic components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.,Alternatively, it may be used to minimise the effects of temperature coefficients on oscillator stability, reference voltages, amplifier offsets etc. by providing temperature control.

Solid-state long term stability
Generates no acoustic noise

Specifications
Attribute Value
Maximum Cooling Capacity 151.4W
Maximum Temperature Difference +68K
Maximum Current 15.4A
Maximum Voltage 15.8V
Active Area 40 x 40mm
Active Area Length 40mm
Active Area Thickness 3.3mm
Active Area Width 40mm
19 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 112.76
(exc. GST)
$ 124.04
(inc. GST)
units
Per unit
1 - 9
$112.76
10 - 24
$109.95
25 - 49
$107.06
50 - 99
$104.09
100 +
$101.50
