Fluke 6500 2 PAT Tester, Class I, Class II Test Type

  • RS Stock No. 808-2561
  • Mfr. Part No. FLUKE-6500-2 AU
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): RO
Product Details

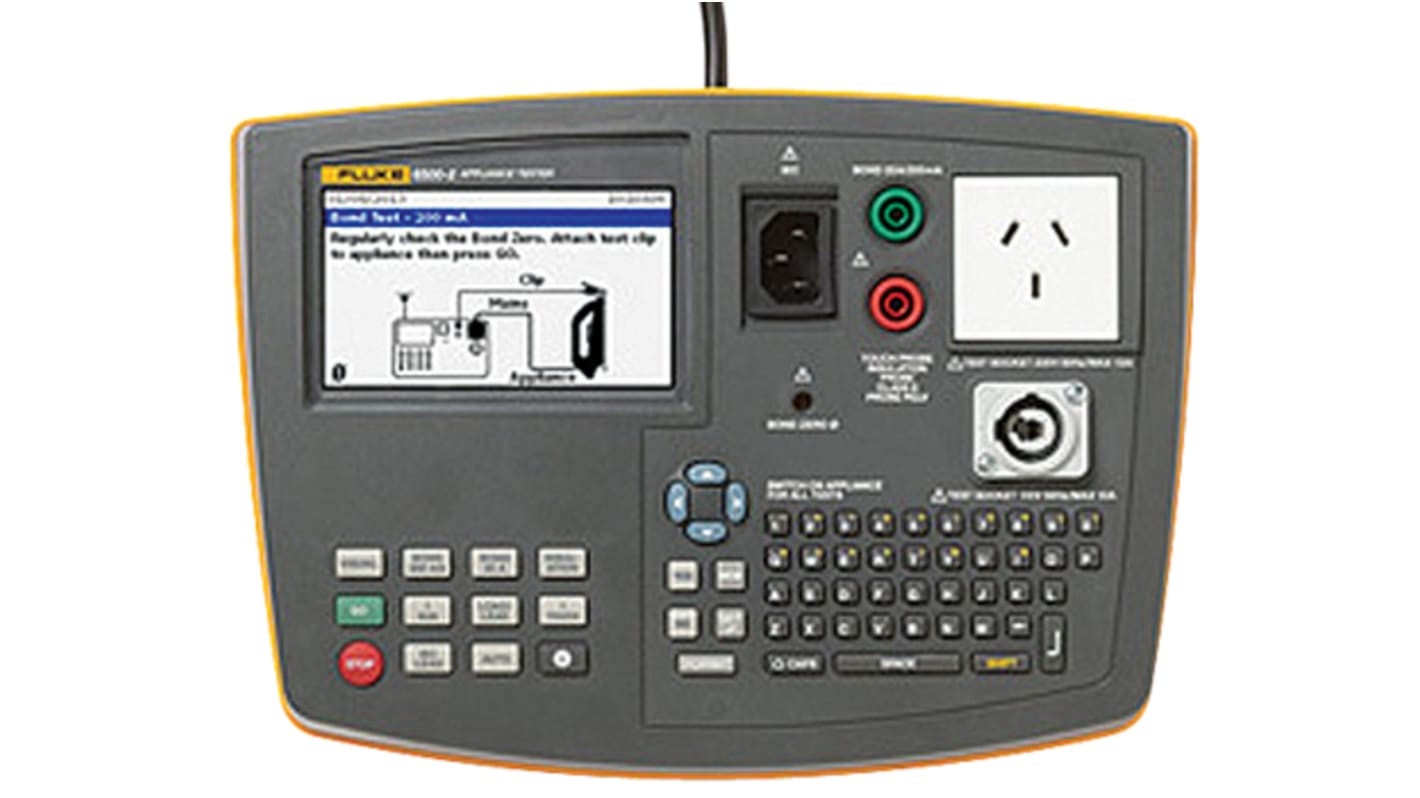

Fluke 6500-2 PAT Tester Australia Version

The Fluke 6500-2 Portable appliance tester verifies the electrical safety and operation of portable appliances in accordance with relevant guidelines and regulations.

With powerful auto test capabilities and simplified controls, including ’one touch’ test routines, the Fluke 6500-2 PAT Tester increases the number of tests you can perform per day without compromising results
The Fluke 6500-2 is suitable for testing both 230 V and 110 V appliances,the 6500-2 model runs all the required safety tests: Earth bond low (low/high current, Insulation 500 V, 250 V, Leakage (PE current, touch current, substitute current), Can test 110 V appliances (earth bond, insulation) via the 110 V adapter kit
Integral QWERTY keyboard for rapid data entry
Memory for back-up data storage and USB port for transfer to PC
Large backlit graphics display
Pre-set, auto-test sequences for user convenience
Integral site, location and description codes for faster data processing
Memory review facility for more on-site control
Dedicated key for each test for ’one-touch’ testing
Pre-set pass/fail levels to save time
Large display for easy reading
Single mains socket for appliance connection
Separate IEC socket for easy mains/extension lead testing
Detachable test leads for quick field replacement
Integral carrying handle
Dimensions: 200 x 275 x 114 mm
Weight: 3.13 kg

Test specifications

Power-on test
Earth bond test (Rpe)
Insulation test (RISO)
Touch current test
Substitute leakage current
RCD Test: trip current
RCD Test: trip time
Load/Leakage test: load current
Load/Leakage test: load power display range 230 V mains
Load/Leakage test: Leakage current
PELV test

Standards

Complies with EN61010-1 3rd edition CAT II, 300 V, pol 2

Supplied with

Test Lead, test probe, crocodile clip, mains cord, storage case, quick reference guide, USB stick, USB cable, User’s manual on CD.

Specifications
Attribute Value
Tester Type Advanced PAT
Test Type Class I, Class II
Testing Method Automatic
Power Source Mains
Dimensions 200 x 275 x 114mm
Weight 3.1kg
Height 114mm
Length 200mm
Maximum Operating Temperature +40°C
Maximum Supply Voltage 264V
Width 275mm
Minimum Operating Temperature 0°C
Model Number p 6500 2
Minimum Supply Voltage 90V
1 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$ 3,694.00
(exc. GST)
$ 4,063.40
(inc. GST)
units
Per unit
1 +
$3,694.00
