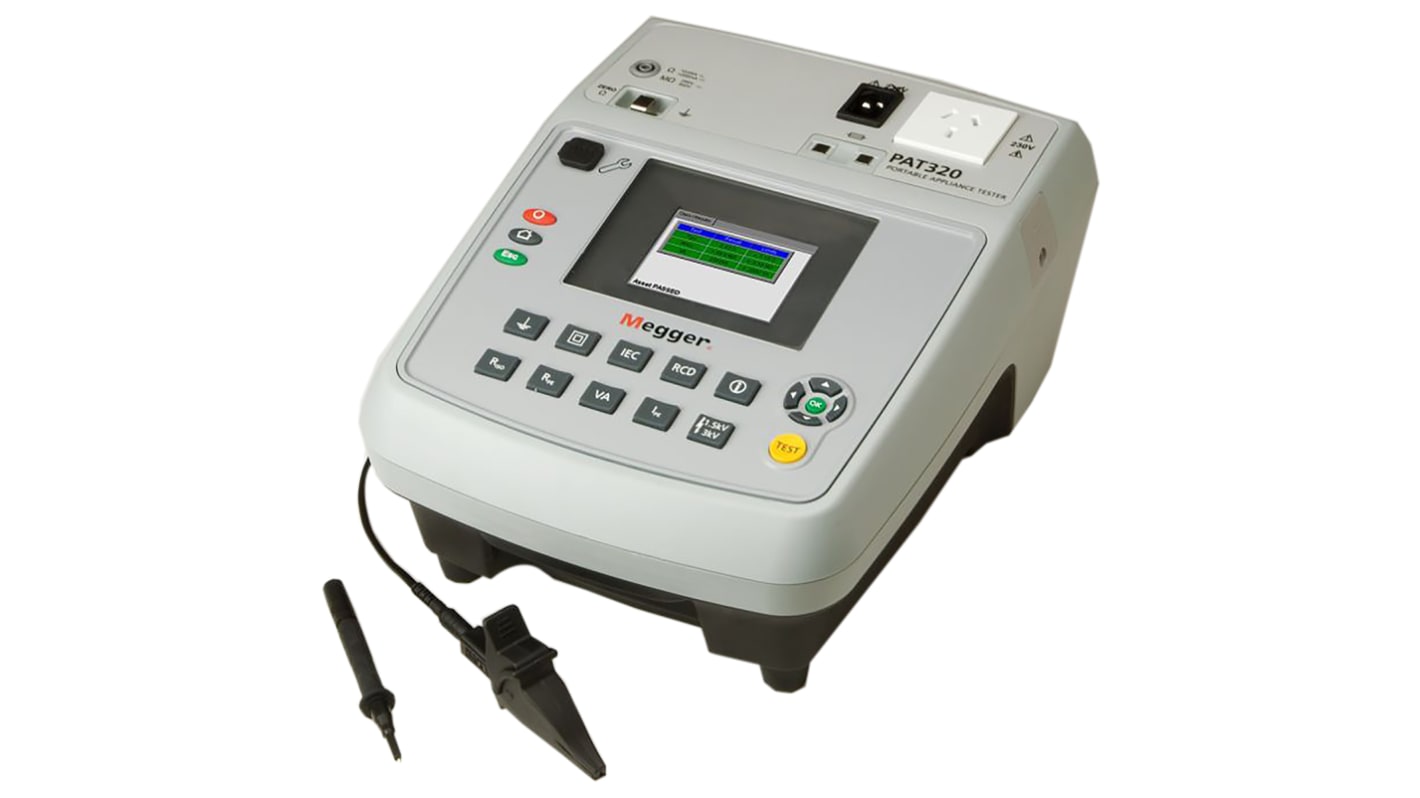

Megger PAT320 Portable Appliance Tester, Class I, Class II Test Type

  • RS Stock No. 712-7058
  • Mfr. Part No. PAT320-AU
  • Manufacturer Megger
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PAT300 Series Portable Appliance Testers

Portable desktop appliance testers providing manual or automatic electrical equipment safety testing in accordance with DIN VDE 0701-0702.

250V and 500V insulation tests & 200mA continuity test
Differential, substitute & touch current tests with 10 μA resolution
High resolution backlit colour screen with all test details displayed before, during and after testing
Tests standard, RCD protected and anti-surge extension leads
Instant re-start for faster testing across multiple rooms
Pre-defined test sequences
Adjustable test pass limits and adjustable test duration times
Push-button operation for test groups or individual test functions
Test results are marked as a PASS or FAIL, and compared to the pass/fail limits for each test indicating a good or marginal result
Selectable PASS/FAIL limits
Direct testing of IEC power cords with no adapter

PAT320 only:

10A & 25A High current test capability

Supplied with

User Guide CD, extension lead adaptor, quick-start guide, carry case and document wallet, bond/continuity test lead with croc-clip and probe.

Attribute Value
Tester Type Pass/Fail PAT
Test Type Class I, Class II
Testing Method Automatic, Manual
Power Source Mains
Dimensions 320 x 250 x 175mm
Weight 4.5kg
Height 175mm
Length 320mm
Maximum Operating Temperature +50°C
Maximum Supply Voltage 230V ac
Model Number p PAT320
Plug Type Type G - British 3-pin
Minimum Operating Temperature +10°C
Minimum Supply Voltage 110V ac
Width 250mm
Temporarily out of stock - back order for despatch 09/07/2020, delivery within 1 working days from despatch date.
Price (ex. GST) Each
$ 3,209.00
(exc. GST)
$ 3,529.90
(inc. GST)
Per unit
1 +
