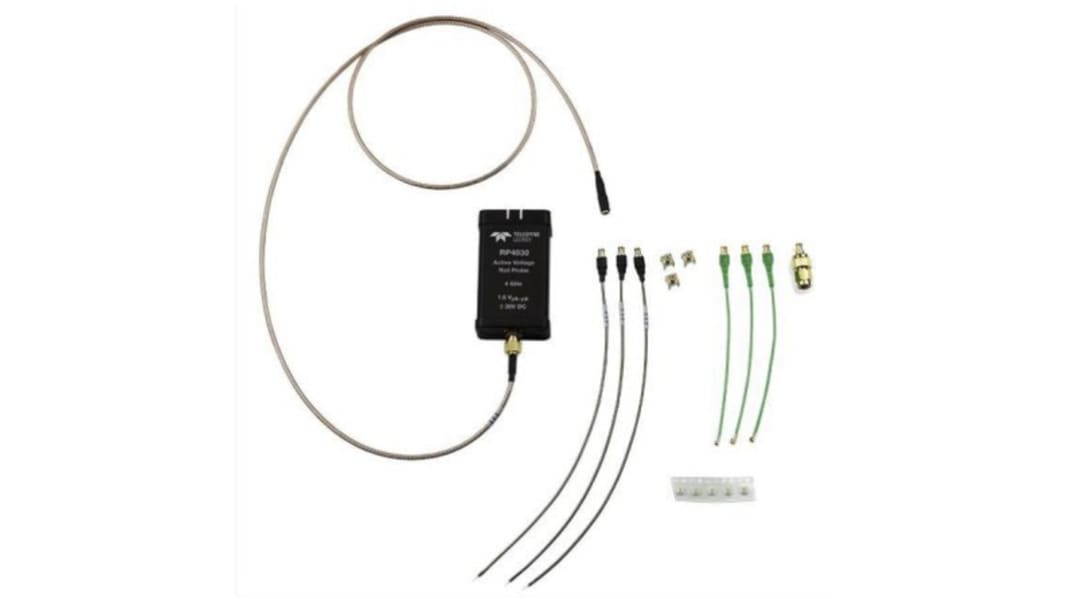

RP4030 Active Voltage Rail Probe
The RP4030 is designed specifically to probe a 50Ω DC power/voltage rail. The probe has large built-in offset, low attenuation (noise), and high DC input impedance. Built-in offset and low attenuation permit the power/voltage rail to be offset in the oscilloscope by its mean DC voltage with high oscilloscope gain (sensitivity) to achieve a noise-free view of small signal variations. The high DC input impedance eliminates loading of the DC rail.
Features and Benefits
- 4 GHz Bandwidth
- ±30 V Offset Capability
- ±800 mV Dynamic Range
- 50 kΩ DC Input Impedance
- 1.2x Attenuation (Low Additive Noise, ∼5%)
- MCX terminated cable with wide variety of connections:
- Solder-in (4 GHz)
- Coaxial Cable to U.FL receptacle (3 GHz)
- MCX PCB Mount (4 GHz)
- Browser (350 MHz)
- ProBus Interface
Applications
- Automotive
- Power Applications
- Motor Drive Development
- Product Design Applications
Specifications
Attribute | Value |
---|---|
Probe Type | Active |
Attenuation | 1:10 |
Bandwidth | 4GHz |
Model Number p | RP4030 |
