Fluke Mixed Signal Oscilloscope BNC Adapter, Model PM9081 for use with 80i-110s

  • RS Stock No. 850-7681
  • Mfr. Part No. PM9081
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

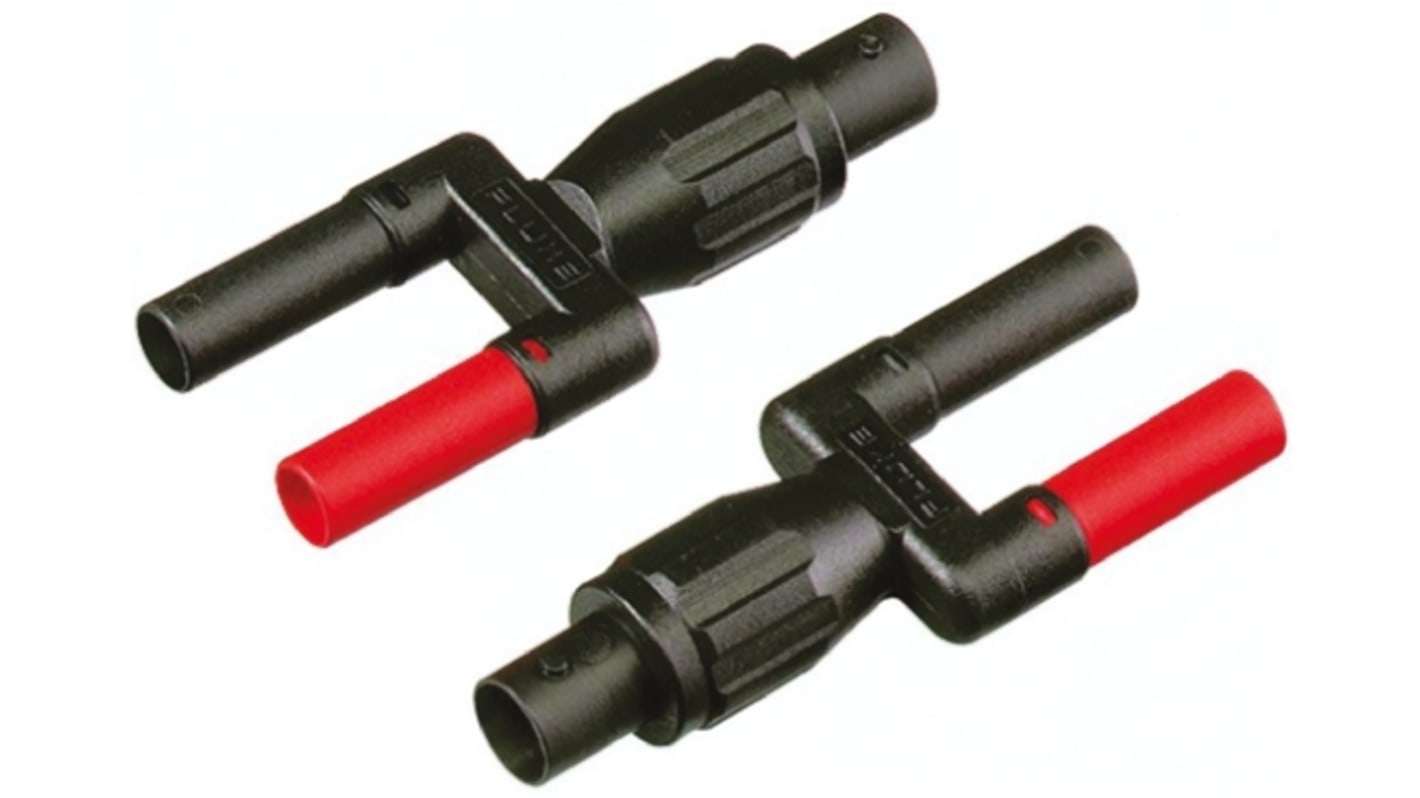

Fluke PM9081 Dual Banana Plug (male) to Female BNC Adapter

Fluke PM9081 consists of two adapters. One red (signal) and one black (ground) 4-mm banana contact. Converts test equipment with BNC plug into banana plugs for use with digital multimeters.

Maximum Signal Voltage: 600V rms
Maximum Voltage to Ground: 600V rms
CAT III per IEC 61010-031

Specifications
Attribute Value
Adapter Type BNC Adapter
For Use With 80i-110s
Model Number p PM9081
Temporarily out of stock - back order for despatch 07/07/2020, delivery within 1 working days from despatch date.
Price (ex. GST) Each
$ 87.00
(exc. GST)
$ 95.70
(inc. GST)
units
Per unit
1 +
$87.00
