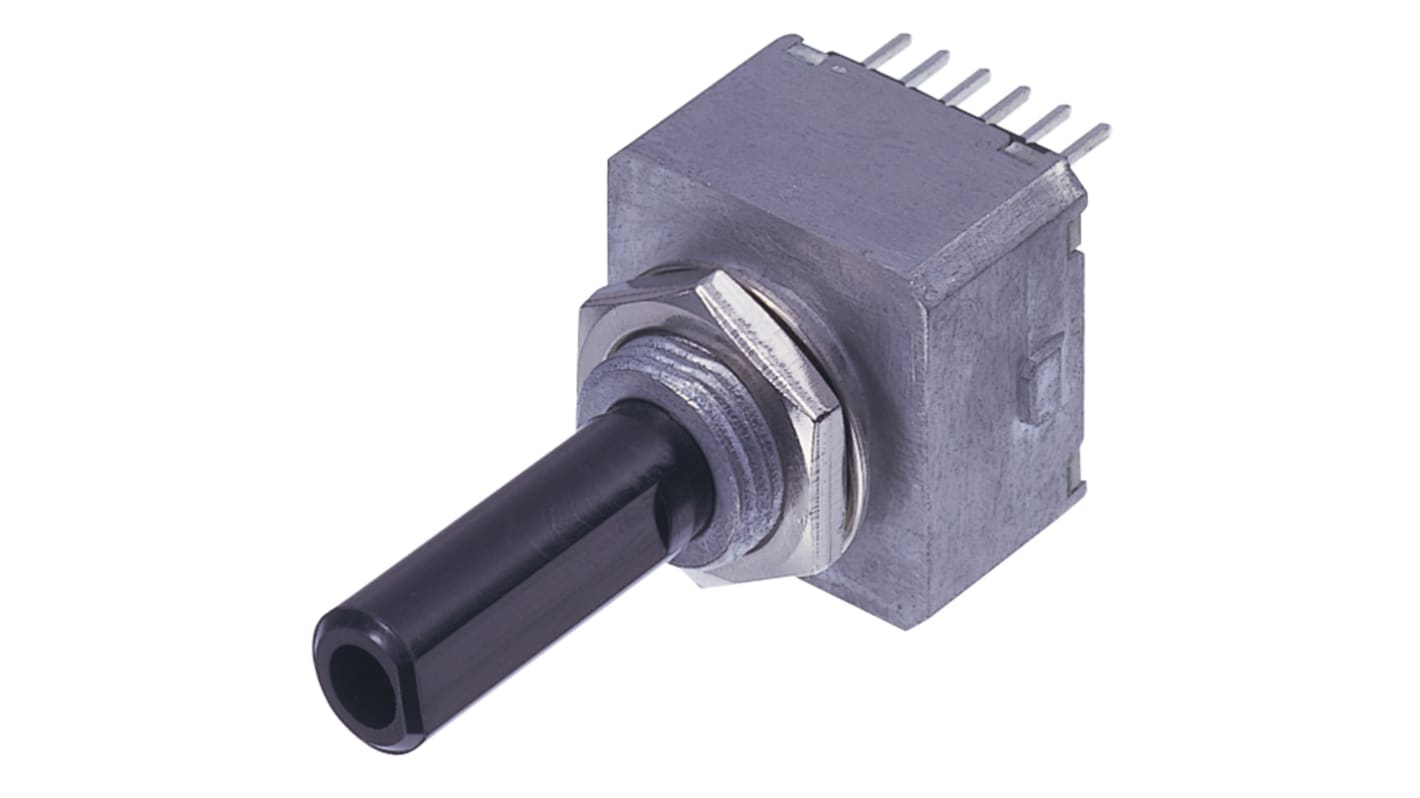

Copal Electronics 5V dc 25 Pulse Optical Encoder with a 6 mm Flat Shaft, Through Hole, Wire Lead

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

High resistant to electrostatic noise by using a plastic shaft
Compact size of 16 mm square
With mechanical ON/OFF push switch
Long life

Specifications
Attribute Value
Pulses Per Revolution 25
Encoder Signal Digital Square Wave
Supply Voltage 5V dc
Shaft Diameter 6 mm
Shaft Length 16.5mm
Mounting Hole Diameter M9
Mounting Type Through Hole
Shaft Style Flat
Termination Style Wire Lead
Current Rating 30mA
2 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 45.00
(exc. GST)
$ 49.50
(inc. GST)
units
Per unit
1 - 4
$45.00
5 - 9
$41.45
10 +
$39.67
