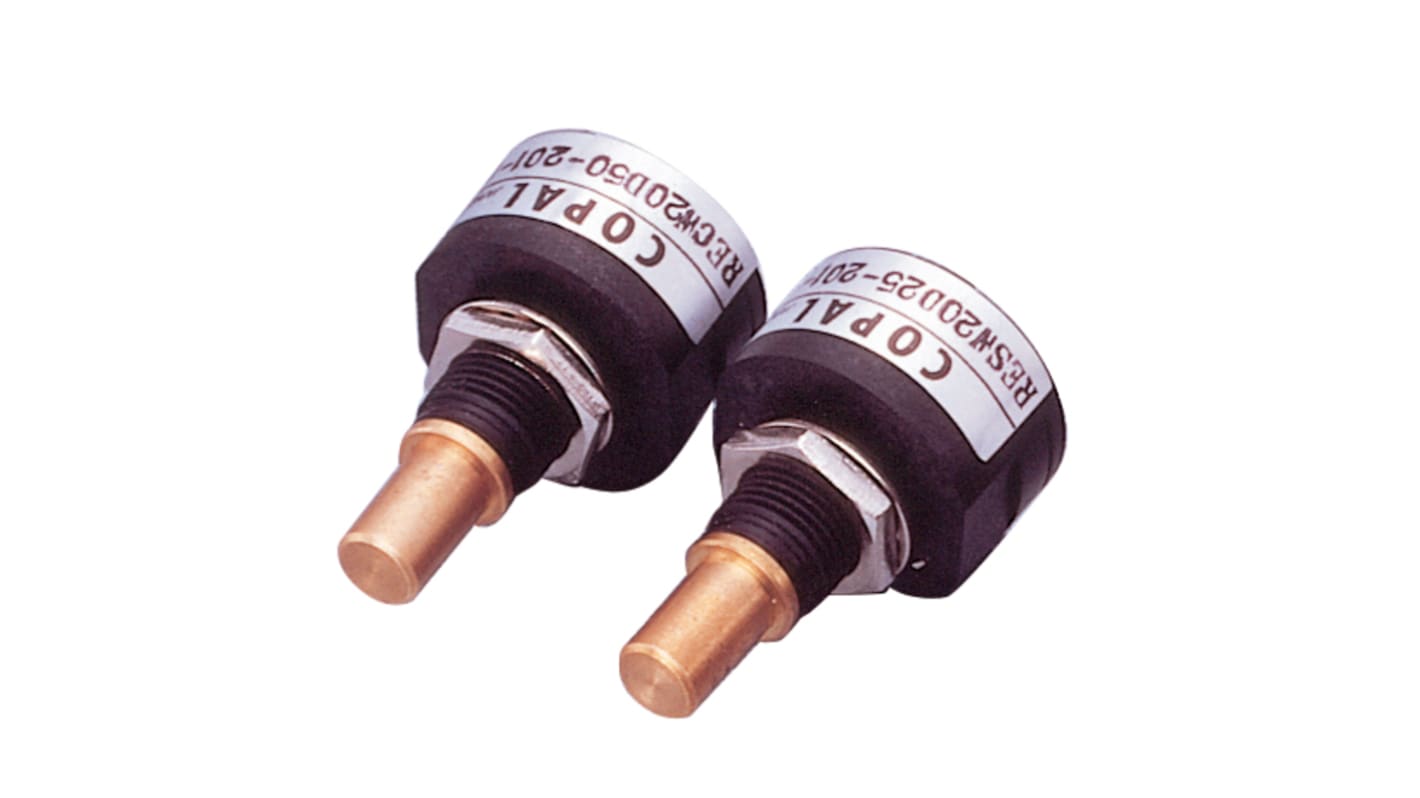

- RS Stock No.:
- 182-5627
- Mfr. Part No.:
- RESW20D-50-201-1
- Brand:
- Nidec Components
- RS Stock No.:
- 182-5627
- Mfr. Part No.:
- RESW20D-50-201-1
- Brand:
- Nidec Components
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Contactless, manual adjustment only
Compact, light weight
Compact, light weight
Specifications
Attribute | Value |
---|---|
Pulses Per Revolution | 50 |
Encoder Signal | Digital Square Wave |
Supply Voltage | 5V dc |
Shaft Diameter | 6 mm |
Shaft Length | 12mm |
Mounting Hole Diameter | M9 |
Shaft Style | Round |
Termination Style | Wire Lead |
Current Rating | 50mA |
