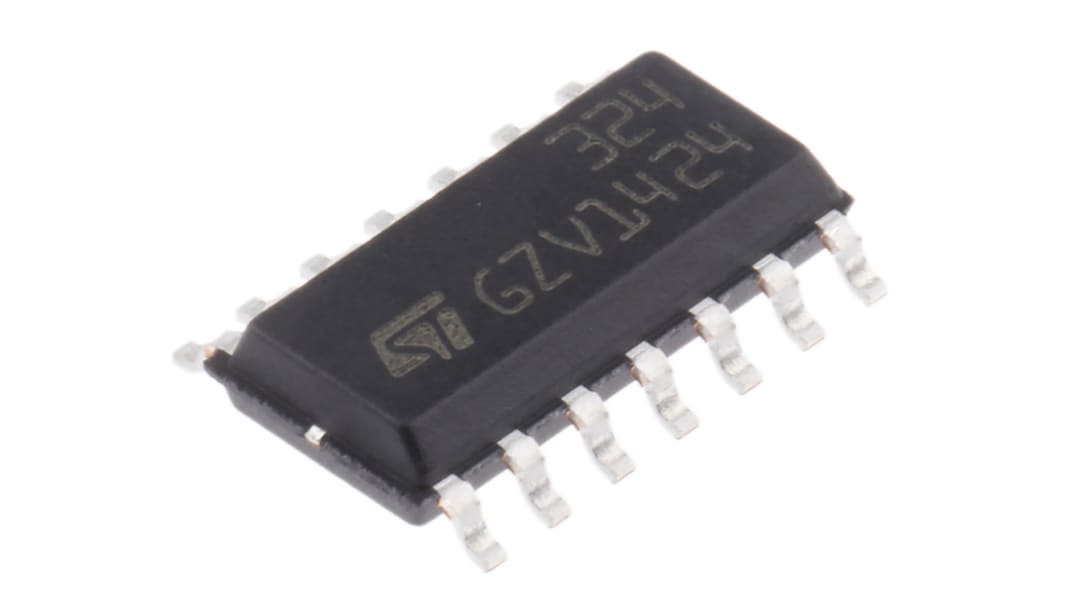

LM324DT STMicroelectronics, Low Power, Op Amp, 1.3MHz, 5 → 28 V, 14-Pin SOIC

RS Stock No.:: 714-0809
Mfr. Part No.:: LM324DT
Brand:: STMicroelectronics

LM324DT STMicroelectronics, Low Power, Op Amp, 1.3MHz, 5 → 28 V, 14-Pin SOIC

200 In AU stock for next working day delivery

280 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 20)

$0.577

(exc. GST)

$0.635

(inc. GST)

Units	Per unit	Per Pack*
20 - 620	$0.577	$11.54
640 - 1240	$0.568	$11.36
1260 +	$0.558	$11.16
*price indicative

RS Stock No.:: 714-0809
Mfr. Part No.:: LM324DT
Brand:: STMicroelectronics

Technical data sheets

Legislation and Compliance

Product Details

LM124, LM224, LM324, Low Power Quad Operational Amplifiers with Low Input Bias Current

The LM124, LM224 and LM324 operational amplifiers consist of four independent, high gain circuits, with frequency compensation implemented internally.

Wide gain bandwidth: 1.3 MHz
Input common-mode voltage range includes ground
Large voltage gain: 100 dB
Low supply current per amplifier: 375 μA
Single power supply: +3 V to +30 V

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Amplifier Type	Low Power
Mounting Type	Surface Mount
Package Type	SOIC
Power Supply Type	Dual, Single
Number of Channels per Chip	4
Pin Count	14
Typical Single Supply Voltage	5 → 28 V
Typical Gain Bandwidth Product	1.3MHz
Typical Dual Supply Voltage	±12 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate	0.4V/µs
Minimum Operating Temperature	0 °C
Maximum Operating Temperature	+70 °C
Typical Voltage Gain	100 dB
Rail to Rail	No
Height	1.65mm
Typical Input Voltage Noise Density	40nV/√Hz
Dimensions	8.75 x 4 x 1.65mm
Length	8.75mm
Width	4mm
