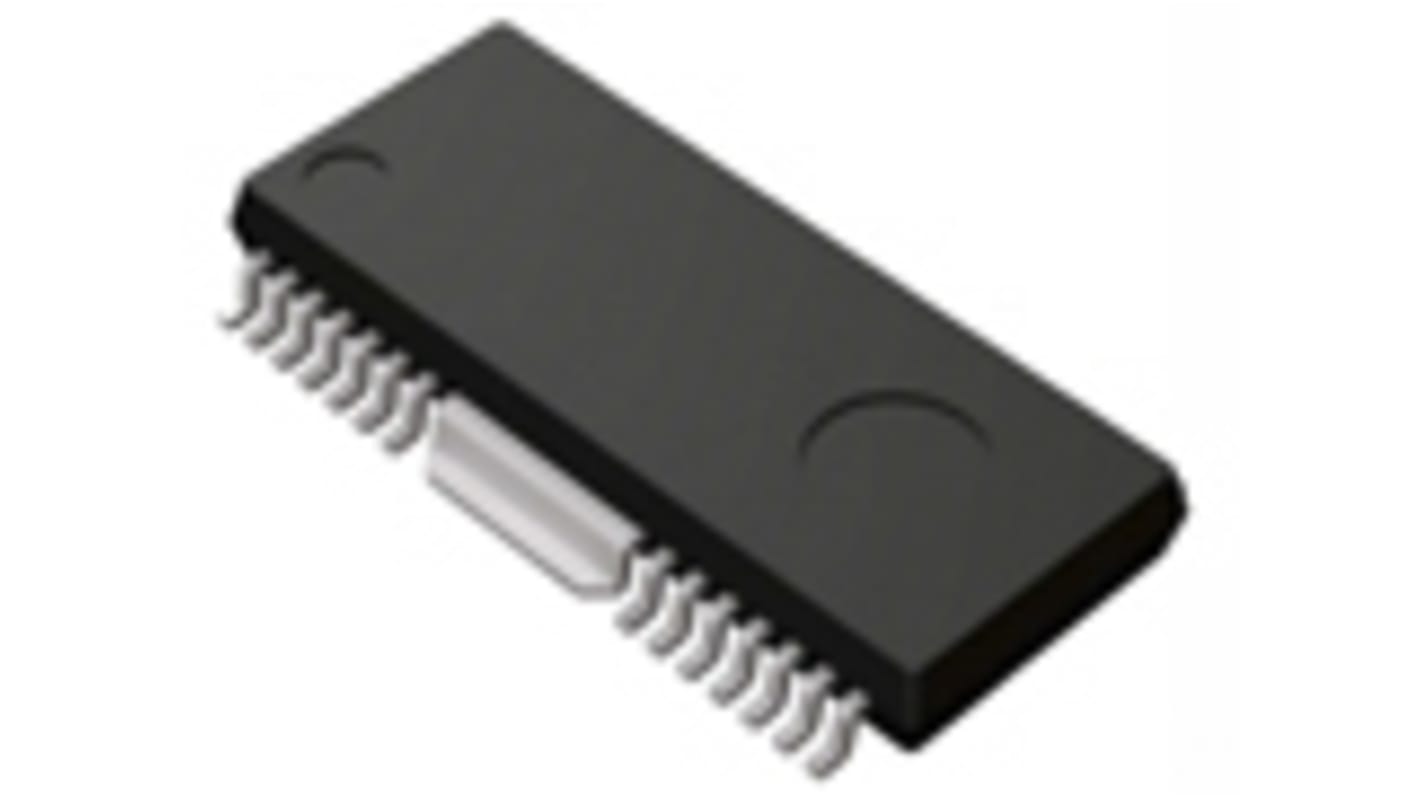

ROHM BD6237FM-E2, Brushed Motor Driver IC 28-Pin, HSOP

  • RS Stock No. 167-7597
  • Mfr. Part No. BD6237FM-E2
  • Manufacturer ROHM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

ROHM offers a wide lineup of H-bridge drivers in different supply voltages (7V/18V/36V) and output currents (0.5A/1A/2A) to meet the needs of a variety of applications. Our standard products also contain a VREF variable function that contributes to lower power consumption and greater efficiency. In addition, multiple built-in protection circuits (i.e. thermal shutdown, overcurrent, overvoltage) protect the IC and load from damage while ensuring a high degree of reliability.

Low standby current
Compatible with PWM control signal input (20k to 100kHz)
PWM duty control via VREF voltage setting terminal
Cross-conduction prevention circuit
Four protection circuits provided: OCP, OVP, TSD and UVLO
Applications:
Coin Processing Machines
Air-conditioner
Car Navigation
Refrigerator
Portable Audio
PPC (Plain Paper Copier)
Motor Control: Brushed DC
TV
DVD

Specifications
Attribute Value
Motor Type Brushed DC
Configuration Half Bridge
Output Configuration Half Bridge
Maximum Output Current 2A
Maximum Supply Voltage 36 V
Mounting Type Surface Mount
Package Type HSOP
Pin Count 28
Maximum Operating Supply Voltage 32 V
Minimum Operating Supply Voltage 6 V
Typical Switching Frequency 100kHz
Series BD6237FM
Dimensions 13.6 x 5.4 x 1.79mm
Minimum Operating Temperature -40 °C
Product Height 1.79mm
Product Length 13.6mm
Length 13.6mm
Width 5.4mm
Product Width 5.4mm
Maximum Operating Temperature +85 °C
Height 1.79mm
23 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) 1 Pack of 1
$ 12.33
(exc. GST)
$ 13.56
(inc. GST)
Pack(s)
1 - 9
$12.33
10 - 19
$11.46
20 - 49
$10.31
50 - 249
$9.29
250 +
$8.46
