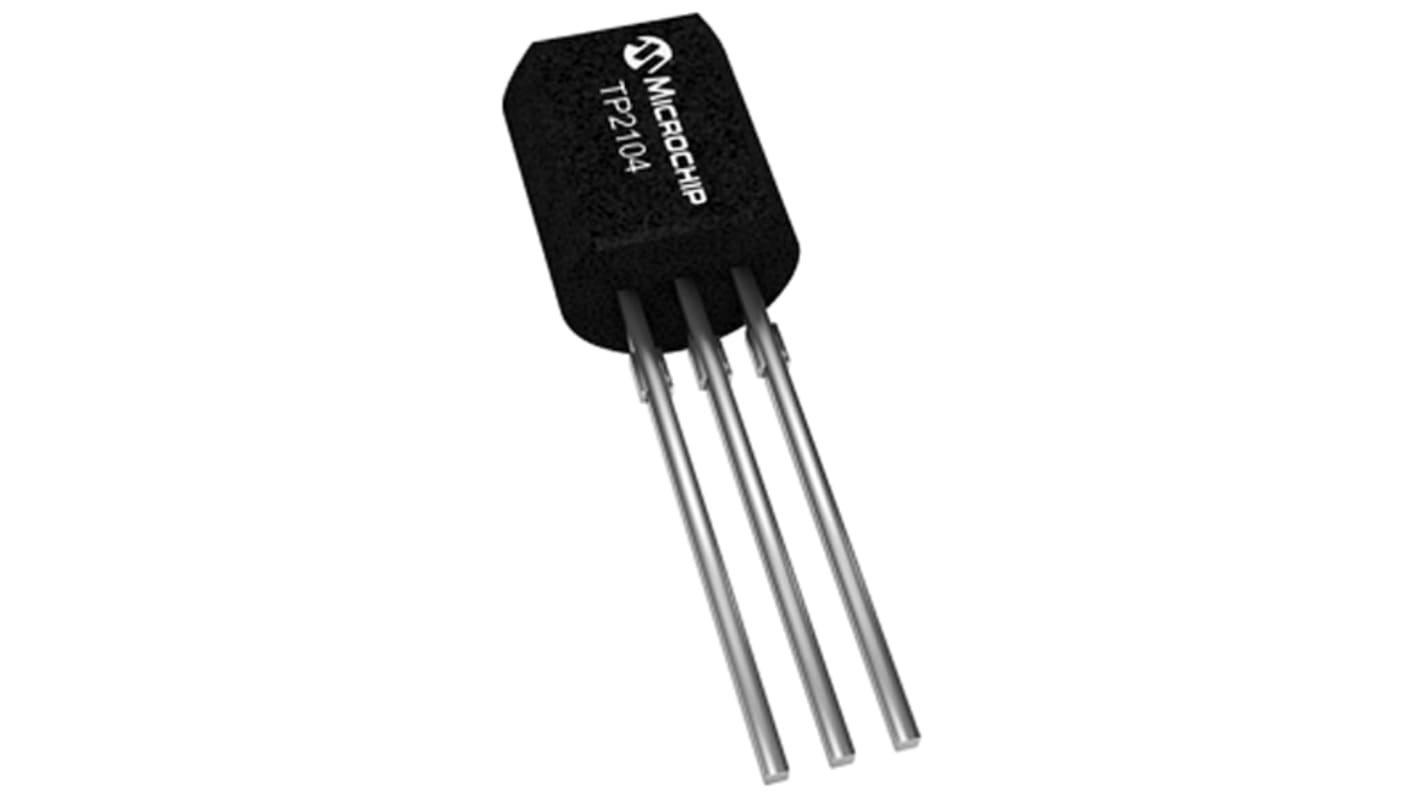

P-Channel MOSFET, 175 mA, 40 V, 3-Pin TO-92 Microchip TP2104N3-G
- RS Stock No.:
- 879-3270
- Mfr. Part No.:
- TP2104N3-G
- Brand:
- Microchip
100 In Global stock for delivery within 5 working day(s)
950 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 25)
$1.222
(exc. GST)
$1.344
(inc. GST)
| Units | Per unit | Per Pack* |
| 25 - 225 | $1.222 | $30.55 |
| 250 - 1225 | $1.192 | $29.80 |
| 1250 + | $0.982 | $24.55 |
| *price indicative | ||
- RS Stock No.:
- 879-3270
- Mfr. Part No.:
- TP2104N3-G
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details
Supertex P-Channel Enhancement Mode MOSFET Transistors
The Supertex range of P-channel enhancement-mode (normally-off) DMOS FET transistors from Microchip are suited to a wide range of switching and amplifying applications requiring a low threshold voltage, high breakdown voltage, high input impedance, low input capacitance and fast switching speeds.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
MOSFET Transistors, Microchip
Specifications
Attribute | Value |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 175 mA |
| Maximum Drain Source Voltage | 40 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 10 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 740 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 5.08mm |
| Transistor Material | Si |
| Width | 4.06mm |
| Maximum Operating Temperature | +150 °C |
| Height | 5.33mm |
| Forward Diode Voltage | 2V |
| Minimum Operating Temperature | -55 °C |
