- RS Stock No.:
- 136-2122
- Mfr. Part No.:
- NX7002AK,215
- Brand:
- Nexperia
- RS Stock No.:
- 136-2122
- Mfr. Part No.:
- NX7002AK,215
- Brand:
- Nexperia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Sample our robust and easy-to-use MOSFETs in the 40 V to 60 V range, part of our massive MOSFET device portfolio. They are perfect for space- and power-critical applications, delivering excellent switching performance and class-leading safe operating area (SOA)

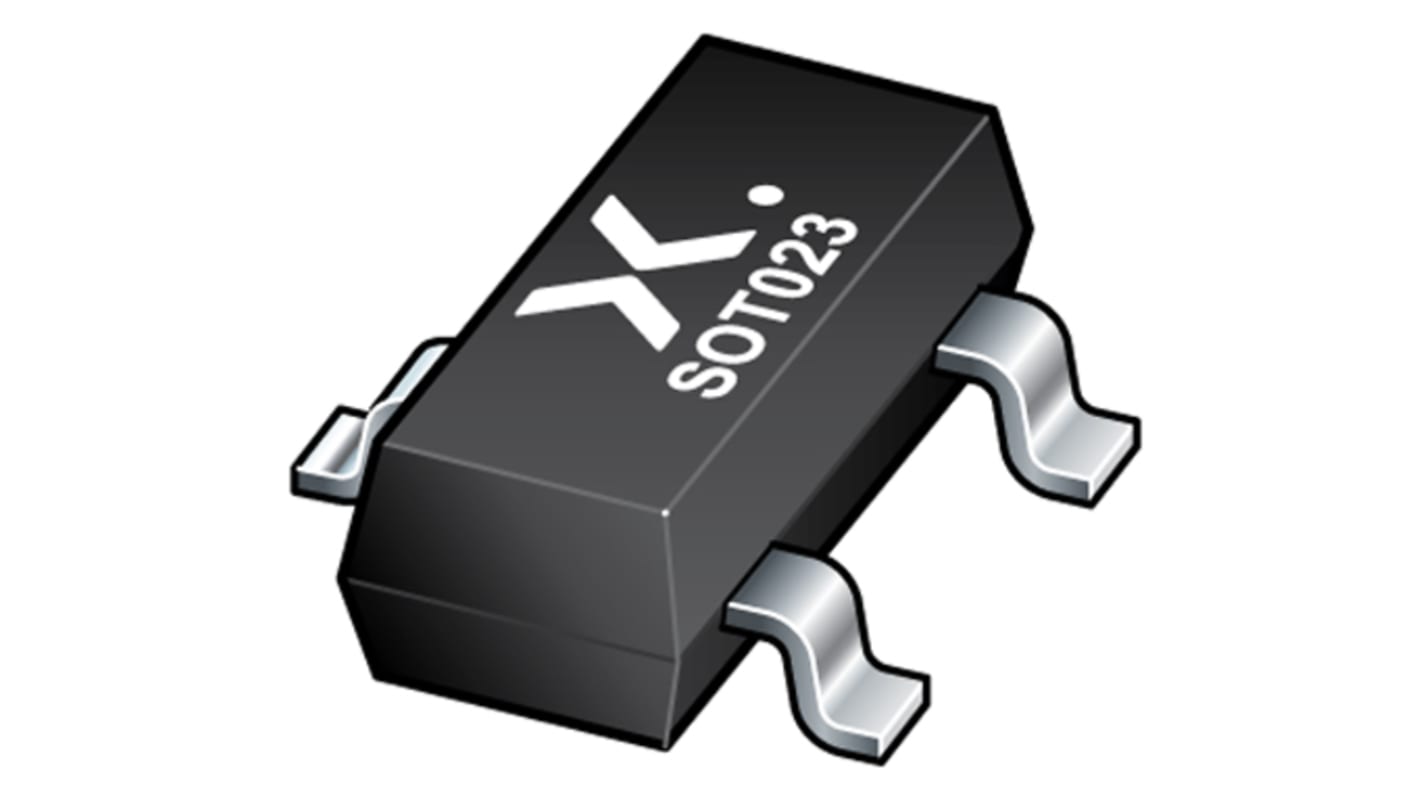

N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology
Very fast switching
Trench MOSFET technology
ESD protected
Trench MOSFET technology
ESD protected
Specifications
Attribute | Value |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 300 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 9.2 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.1V |
Minimum Gate Threshold Voltage | 1.1V |
Maximum Power Dissipation | 1.33 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Width | 1.4mm |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Length | 3mm |
Typical Gate Charge @ Vgs | 0.33 nC @ 4.5 V |
Number of Elements per Chip | 1 |
Height | 1mm |
Forward Diode Voltage | 1.2V |
Minimum Operating Temperature | -55 °C |
