- RS Stock No.:
- 715-4195
- Mfr. Part No.:
- PIC18F46K80-I/PT
- Brand:
- Microchip
- RS Stock No.:
- 715-4195
- Mfr. Part No.:
- PIC18F46K80-I/PT
- Brand:
- Microchip
Legislation and Compliance
Product Details

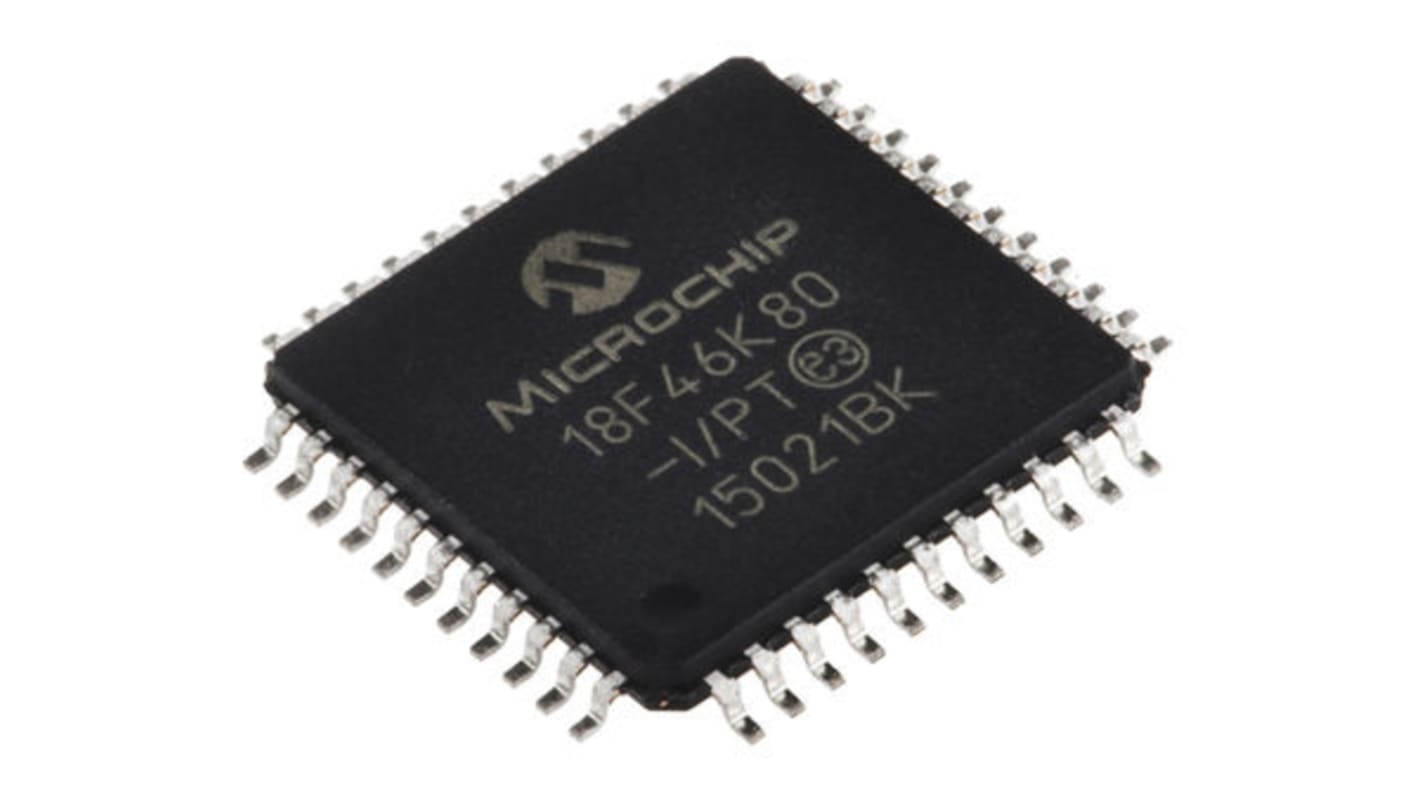

PIC18F2xK80/4xK80/6xK80 8-Bit Flash Microcontrollers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | PIC18F |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 1.024 kB, 3.648 kB |
Number of PWM Units | 2 |
Number of SPI Channels | 1 |
Number of CAN Channels | 1 |
Typical Operating Supply Voltage | 3.3 V |
Number of UART Channels | 0 |
Number of I2C Channels | 1 |
Number of USART Channels | 2 |
Minimum Operating Temperature | -40 °C |
Height | 1mm |
Number of LIN Channels | 0 |
Dimensions | 10 x 10 x 1mm |
Pulse Width Modulation | 1 x 10 bit, 4 x 10 bit |
Number of Ethernet Channels | 0 |
Program Memory Type | Flash |
Number of PCI Channels | 0 |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
ADCs | 11 x 12 bit |
Width | 10mm |
