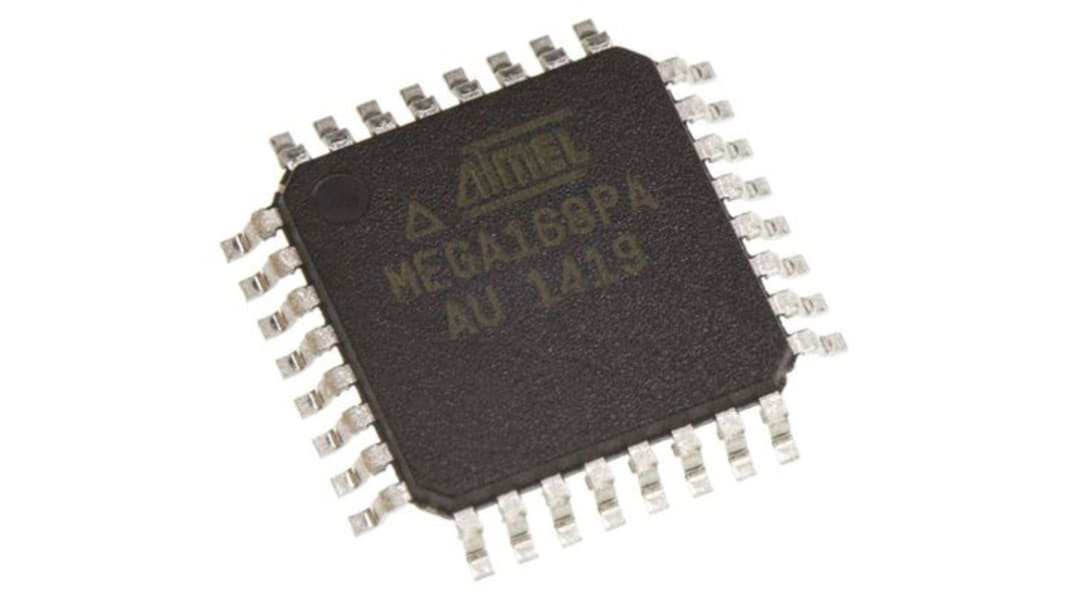

Microchip ATMEGA168PA-AU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 32-Pin TQFP
- RS Stock No.:
- 127-8265
- Mfr. Part No.:
- ATMEGA168PA-AU
- Brand:
- Microchip
5400 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$3.396
(exc. GST)
$3.736
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 20 | $3.396 | $16.98 |
| 25 - 95 | $3.35 | $16.75 |
| 100 - 495 | $3.284 | $16.42 |
| 500 + | $3.22 | $16.10 |
| *price indicative | ||
- RS Stock No.:
- 127-8265
- Mfr. Part No.:
- ATMEGA168PA-AU
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
8-Bit PicoPower megaAVR Family Microcontrollers
This range of megaAVR microcontrollers feature picoPower technology — perfect for energy saving. They offer generous program and data memories with performance of up to 20 MIPS.
Features & Benefits of picoPower megaAVR microcontrollers
•On-chip Flash
•SRAM
•Internal EEPROM
•SPI
•TWI (I²C)
•USART, USB, CAN & LIN interfaces
•Watchdog timer
•Precision oscillator
•GPIO pins
•ADC
•DAC
•Built-in temperature sensor
•Internal voltage reference
•Brown-out detector
Features & Benefits of picoPower megaAVR microcontrollers
•On-chip Flash
•SRAM
•Internal EEPROM
•SPI
•TWI (I²C)
•USART, USB, CAN & LIN interfaces
•Watchdog timer
•Precision oscillator
•GPIO pins
•ADC
•DAC
•Built-in temperature sensor
•Internal voltage reference
•Brown-out detector
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Family Name | ATmega |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 1 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 |
| Number of SPI Channels | 2 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of UART Channels | 1 |
| Number of USART Channels | 1 |
| Dimensions | 7.1 x 7.1 x 1.05mm |
| Length | 7.1mm |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 1 (6 Channel) |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 0 |
| Number of Ethernet Channels | 0 |
| ADCs | 8 x 10 bit |
| Width | 7.1mm |
| Instruction Set Architecture | RISC |
