Hi-Bond HB 720A Conductive Metallic Tape, 12mm x 33m

RS Stock No.:: 832-6316
Mfr. Part No.:: HB 720A 12mm x 33m
Brand:: Hi-Bond

Hi-Bond HB 720A Conductive Metallic Tape, 12mm x 33m

8 In AU stock for next working day delivery

83 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$58.03

(exc. GST)

$63.83

(inc. GST)

Units	Per unit
1 +	$58.03

RS Stock No.:: 832-6316
Mfr. Part No.:: HB 720A 12mm x 33m
Brand:: Hi-Bond

Technical data sheets

HB720A Data Sheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: KR

Product Details

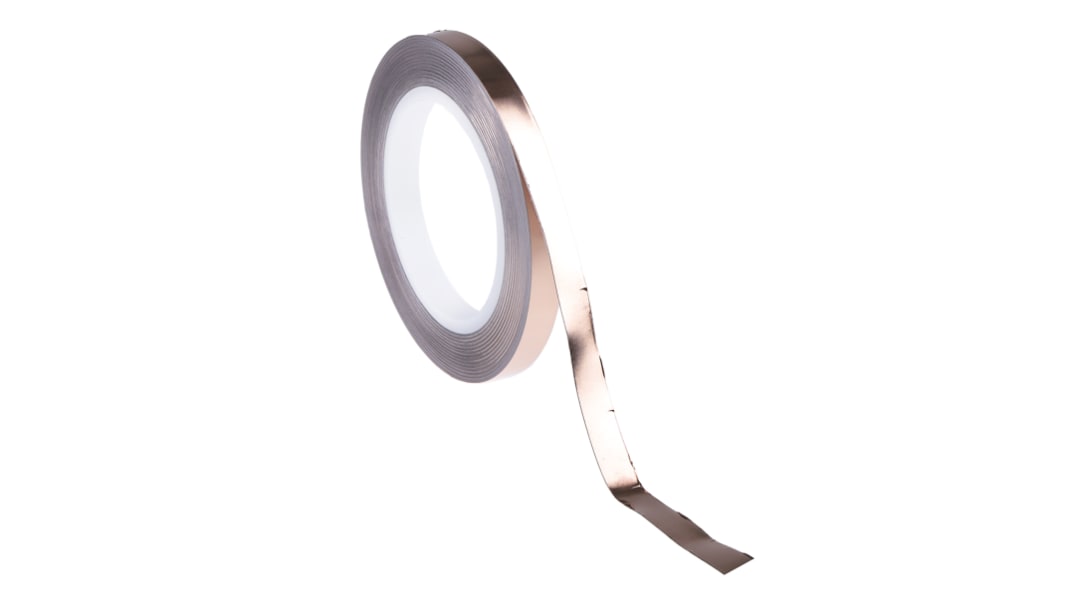

Hi-Bond Copper Foil Tape

The Hi-Bond copper foil tape has a conductive acrylic pressure-sensitive adhesive with a uniform dispersion of conductive particles of nickel silver. This tape is 0.07mm thick, 12mm wide and 33m long. The foil carrier is 25μ thick, with an additional 40-micron thick coating of acrylic adhesive containing nickel silver conductive particles.

Features and Benefits

Copper foil (25μm/.001in)
Release liner
Operating temperature ranges between -30°C and 130°C
Peel strength is 1.6lb/in
Tensile strength is 43N/cm

Applications

Electro-magnetic compatibility
Shielding
Radio frequency insulation
Earthling and static electric control
Shielding of signal cable
Shielding signal cable or FCC repairs
Blinding the end of knitted wire mesh of shielding cable
Shield leaking or invading electromagnetic waves
Tape for EMR/RFI shielding

Specifications

Attribute	Value
Tape Type	Copper Tape
Total Thickness	0.07mm
Foil Thickness	0.035mm
Width	12mm
Length	33m
Conductivity	Conductive
Adhesion Strength	2.7 N/cm
Adhesive Material	Acrylic
Material Plating	None
Tensile Strength	43N/cm
Maximum Temperature Resistance	+130°C
Minimum Temperature Resistance	-30°C
Model Number	HB 720A
