Advance Tapes AT521 Conductive Metallic Tape, 25mm x 33m

RS Stock No.:: 542-5454
Brand:: Advance Tapes

Advance Tapes AT521 Conductive Metallic Tape, 25mm x 33m

132 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$6.272

(exc. GST)

$6.899

(inc. GST)

Units	Per unit	Per Reel*
33 +	$6.272	$206.976
*price indicative

RS Stock No.:: 542-5454
Brand:: Advance Tapes

Technical data sheets

AT521 40 Micron Aluminium Foil Shielding Tape Data Sheet

Legislation and Compliance

Non Compliant

COO (Country of Origin):: IE

Product Details

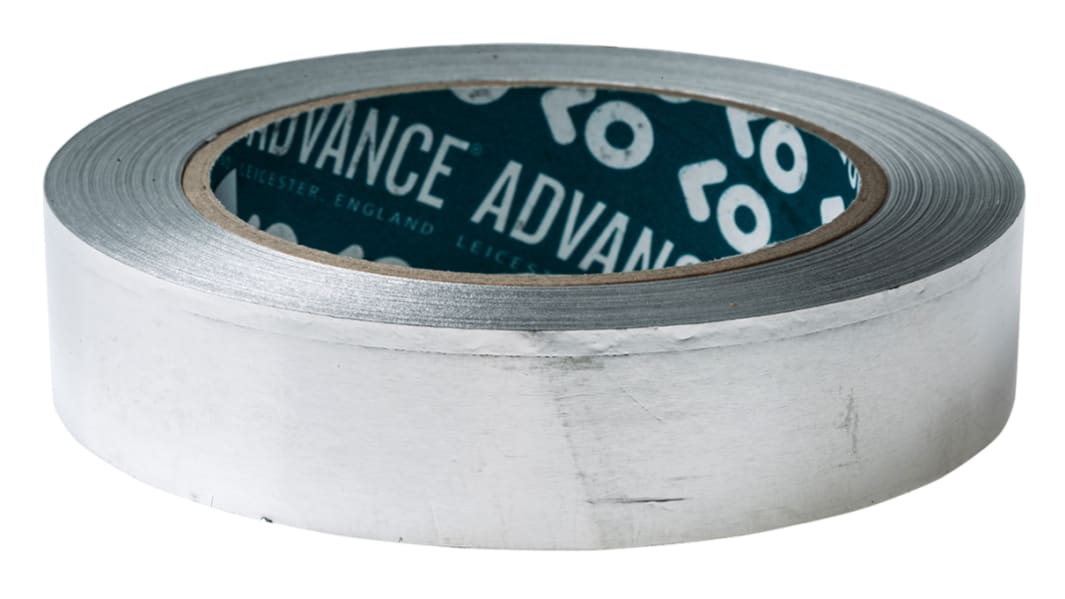

Advance Tapes Aluminium Tape

The Advance Tapes conductive aluminium shielding tape is a 40μm foil, coated with an electrically conductive acrylic adhesive supplied on a removable silicone liner. This tape is 0.07mm thick, 25mm wide and 33m long.

Note:
Always think about the galvanic compatibility before using the AT521 tapes.
EMI/RFI shielding tapes:
The galvanic compatibility should be taken into account while using these tapes.

Features and Benefits

Breaking load is 25N/cm
Adhesion to steel is 4.5N/cm
Elongation is 8%
Operating temperature ranges between -20°C and 155°C

Good shielding effectiveness and z-axis conductivity
Good high and low-temperature resistance
Good resistance to chemical, heat, acid, and alkali
Easy unwind, easy to use, and aesthetically pleasing

Applications

Use the AT521 tape for your EMI/RFI and static shielding
Heating and ventilation
Construction industry
Manufacturing
Duct sealing

Certifications

ASTM D-1000
BS EN 60454
MIL – T - 47012
UL510 approved

Specifications

Attribute	Value
Total Thickness	0.07mm
Tape Type	Aluminium Tape
Foil Thickness	0.04mm
Width	25mm
Length	33m
Conductivity	Conductive
Adhesion Strength	4.5 N/cm
Adhesive Material	Acrylic
Tensile Strength	25N/cm
Maximum Temperature Resistance	+155°C
Complies with EN Legislation	BS EN 60454 - Part 2
Minimum Temperature Resistance	-20°C
Model Number	AT521
