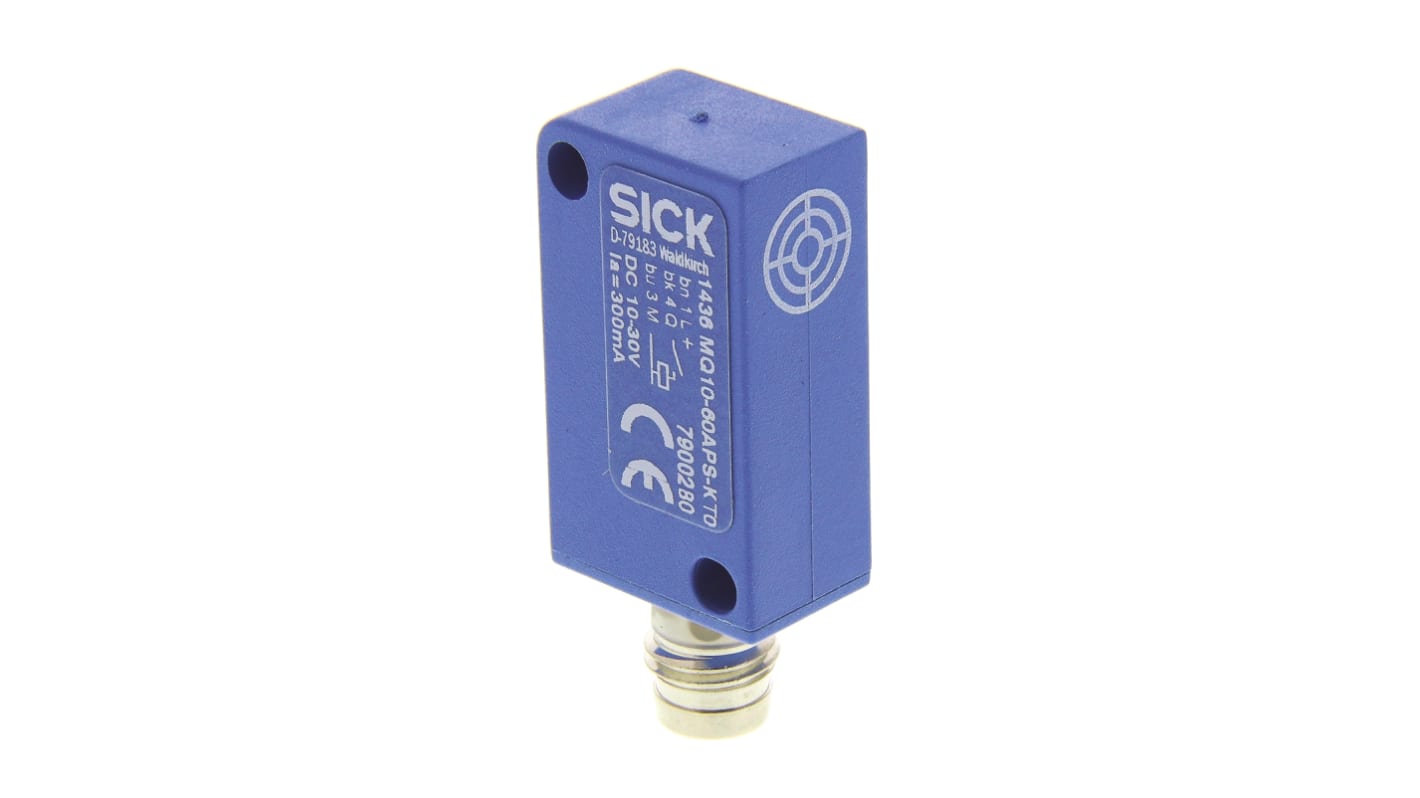

Magnetic Reed Switch,

  • RS Stock No. 303-0442
  • Mfr. Part No. MQ10-60APS-KTO
  • Manufacturer Sick
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): HU
Product Details

V3 Micro Switch Style, Pre-Wired and Plug-In

Plastic housed, flush or non-flush mounting switches protected to IP67
Supply voltage 10 to 30Vdc
Operating temperature range -25 to +75°C
Response delay 2ms
PNP transistor output
Switching current 300mA
Switching frequency 5000Hz
LED status indicator
Short circuit and reverse polarity protection

Specifications
Attribute Value
Normal State Configuration NO
Output Type PNP
Terminal Type Wire Lead
Maximum Current 300 mA
Switching Frequency 5000 Hz
Dimensions 37 x 10.3 x 16 mm
2 : Next working day (AU stock)
4 : 5 working days (Global stock)
Price (ex. GST) Each
$ 142.80
(exc. GST)
$ 157.08
(inc. GST)
units
Per unit
1 - 5
$142.80
6 - 11
$137.66
12 +
$135.87
