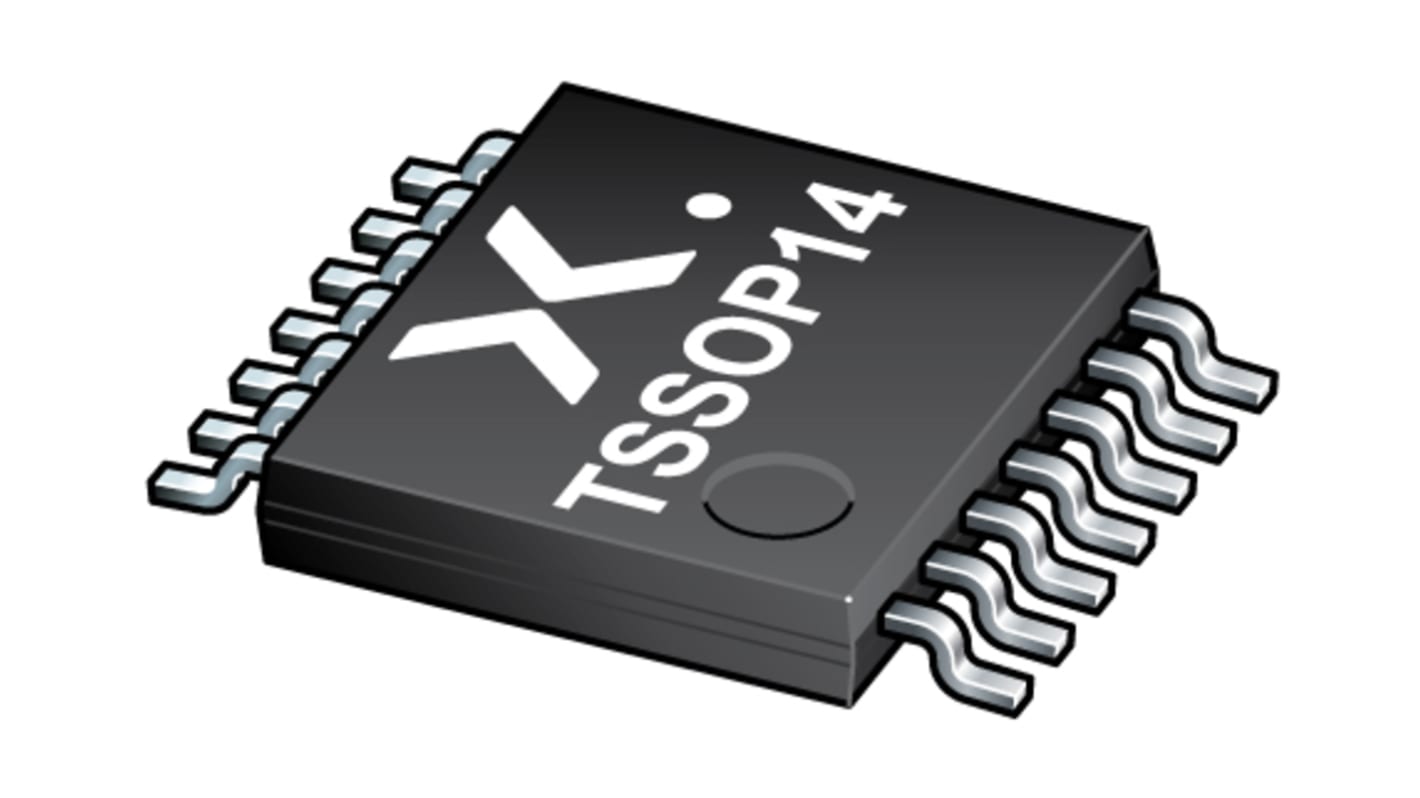

    Nexperia 74HCT32PW,118, Quad 2-Input OR Logic Gate, 14-Pin TSSOP

    View all Logic Gates
    Bulk discount available

    Subtotal 650 units (supplied on a reel)**

    $385.45

    (exc. GST)

    $423.80

    (inc. GST)

    Add to Basket
    Select or type quantity
    500 In Global stock for delivery within 10 working day(s)*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per unit
    650 - 1200$0.578
    1250 +$0.569

    **price indicative

    Packaging Options:
    RS Stock No.:
    170-5505P
    Mfr. Part No.:
    74HCT32PW,118
    Brand:
    Nexperia
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Nexperia

    Logic Function

    OR

    Mounting Type

    Surface Mount

    Number of Elements

    4

    Number of Inputs per Gate

    2

    Package Type

    TSSOP

    Pin Count

    14

    Logic Family

    74HCT

    Input Type

    TTL

    Maximum Operating Supply Voltage

    5.5 V

    Maximum High Level Output Current

    -4mA

    Maximum Propagation Delay Time @ Maximum CL

    36 ns @ 50 pF

    Minimum Operating Supply Voltage

    4.5 V

    Maximum Low Level Output Current

    5.2mA

    Maximum Operating Temperature

    +125 °C

    Dimensions

    5.1 x 4.5 x 0.95mm

    Minimum Operating Temperature

    -40 °C

    Propagation Delay Test Condition

    50pF

    Length

    5.1mm

    Height

    0.95mm

    Width

    4.5mm
