- RS Stock No.:
- 902-6925
- Brand:
- RS PRO
11 In AU stock for next working day delivery
8 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$72.63
(exc. GST)
$79.89
(inc. GST)
Units | Per unit |
1 - 4 | $72.63 |
5 + | $59.76 |
- RS Stock No.:
- 902-6925
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

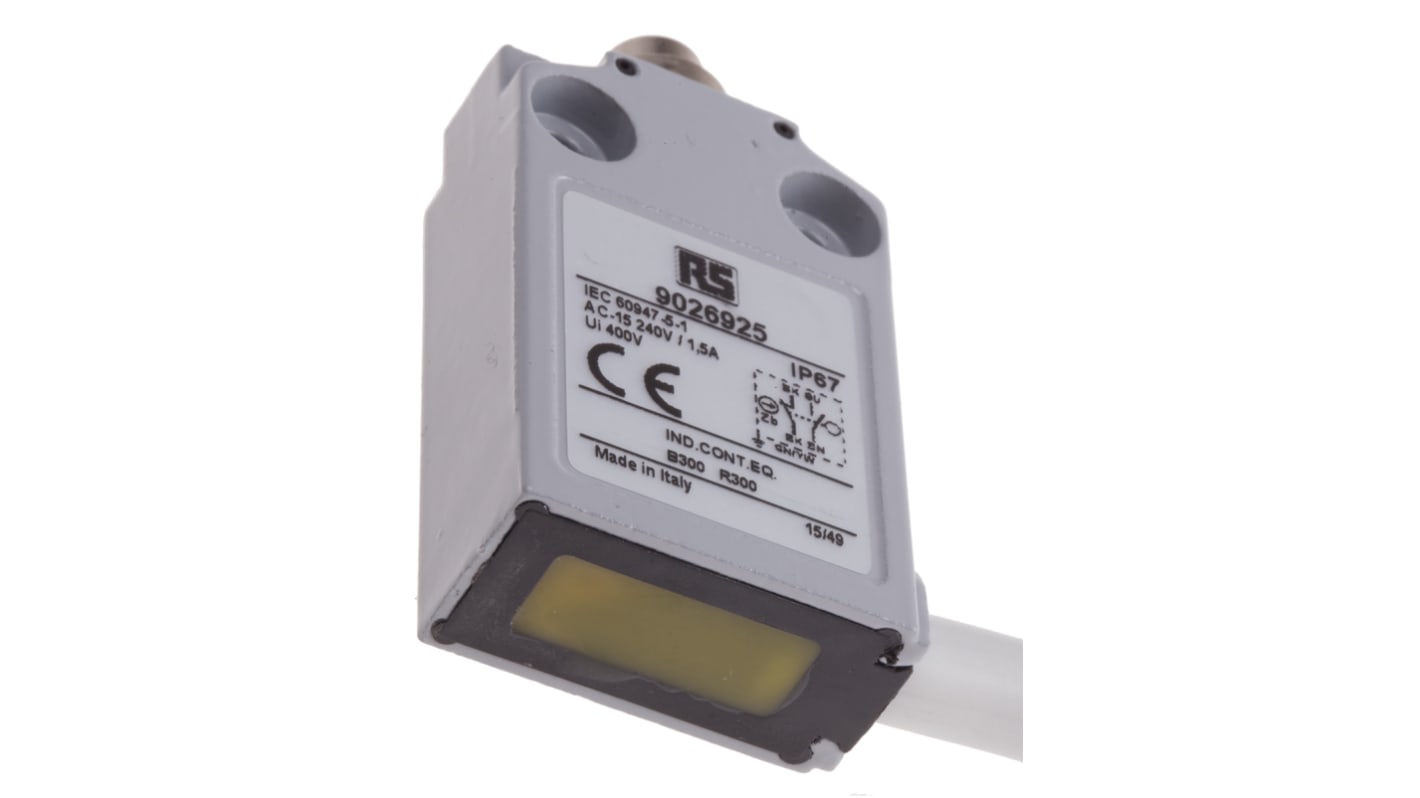

RS IP67 EM/EP Series Limit Switches
Easy to use electromechanical limit switches offer special qualities and purpose built detection devices with characteristics such as, presence/absence, positioning and travel limit, objects passing and counting. The EP Series limit switches are made from thermoplastic material and the EM series limit switches are made from zinc alloy sealed with epoxy resin at the box base and have a degree of protection of IP 67
Visible operation
Able to switch strong currents – 5 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Metal Casing to IP67
All are pre wired
Plastic casing are double insulated
Able to switch strong currents – 5 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Metal Casing to IP67
All are pre wired
Plastic casing are double insulated
Plastic and Metal Casing IP67 Limit switches
Note
Metal Casing stock numbers 902-6922, 902-6913, 902-6925, 902-6929, 902-6938, 902-6931, 902-6935.
Plastic Casing stock numbers 902-6944, 902-6947, 902-6941, 9026950
Plastic Casing stock numbers 902-6944, 902-6947, 902-6941, 9026950
Approvals
IEC 947-5-1, EN 60 947-5-1
Specifications
Attribute | Value |
---|---|
Actuator Type | Plunger |
Pole and Throw Configuration | DPST |
Normal State Configuration | NO/NC |
IP Rating | IP67 |
Maximum Current | 5A |
Housing Material | Die Cast Zinc |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 250V |
Connection Type | Cable |
Action Type | Snap Action |
Length | 31.5mm |
Depth | 16mm |
Maximum Operating Temperature | +70°C |
Width | 60mm |
Minimum Operating Temperature | -25°C |
Mechanical Life | 10000000Operations |
Operating Force | 15 N |
Mounting Orientation | Vertical |
