- RS Stock No.:
- 828-1018
- Mfr. Part No.:
- WL-CA2-7GN
- Brand:
- Omron
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$196.71
(exc. GST)
$216.38
(inc. GST)
Units | Per unit |
1 + | $196.71 |
- RS Stock No.:
- 828-1018
- Mfr. Part No.:
- WL-CA2-7GN
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

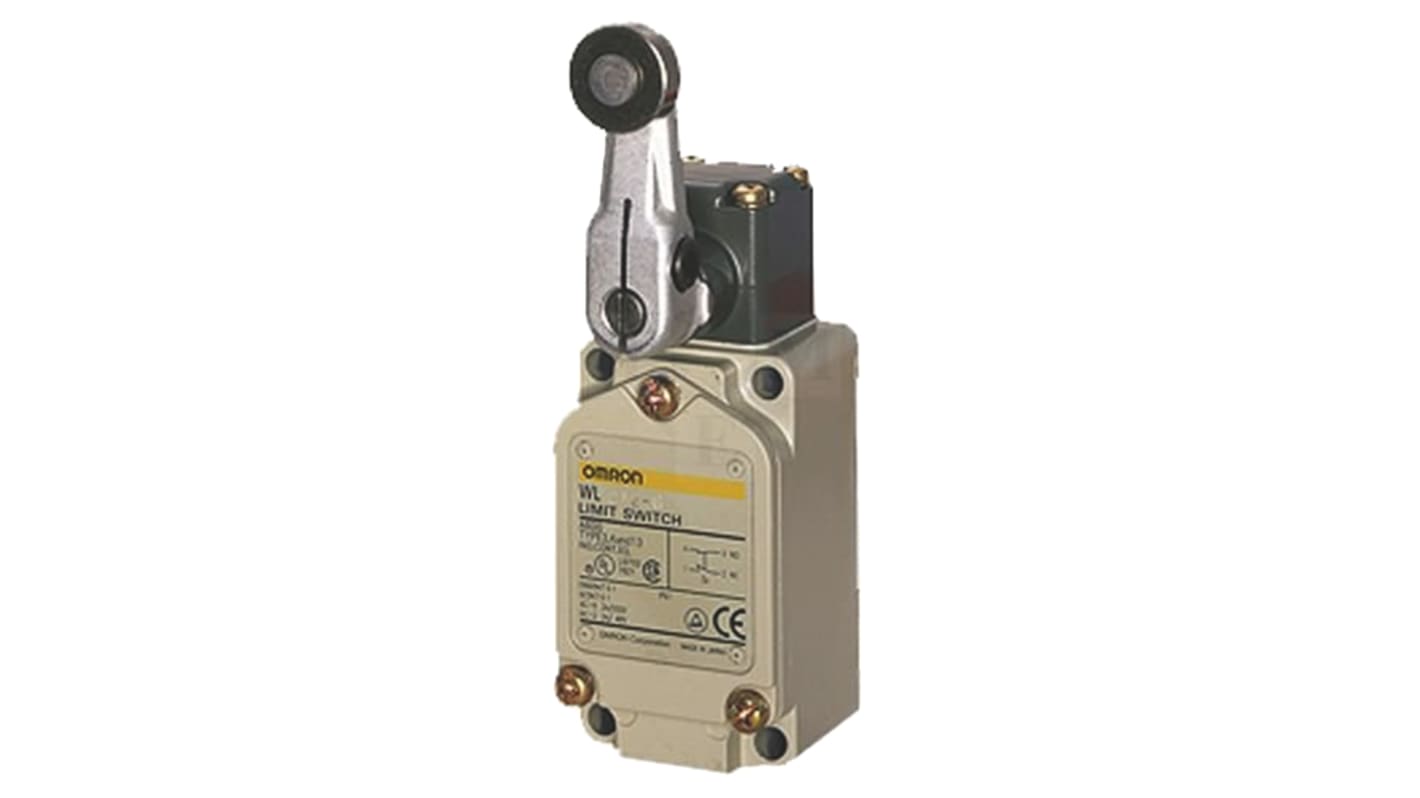

WL Series General Purpose Limit Switch
Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (Ith250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5
Approvals
UL, CSA
Specifications
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | DPDT |
Normal State Configuration | 1NO/1NC |
IP Rating | IP67 |
Maximum Current | 2A |
Housing Material | Metal |
Maximum AC Voltage | 250V |
Maximum DC Voltage | 48V |
Connection Type | G1/2 |
Series | WL |
Action Type | Double Break |
Length | 137mm |
Maximum Operating Temperature | +80°C |
Depth | 67.2mm |
Width | 40mm |
Minimum Operating Temperature | -10°C |
Mounting Orientation | Side |
Mechanical Life | 15000000Operations |
