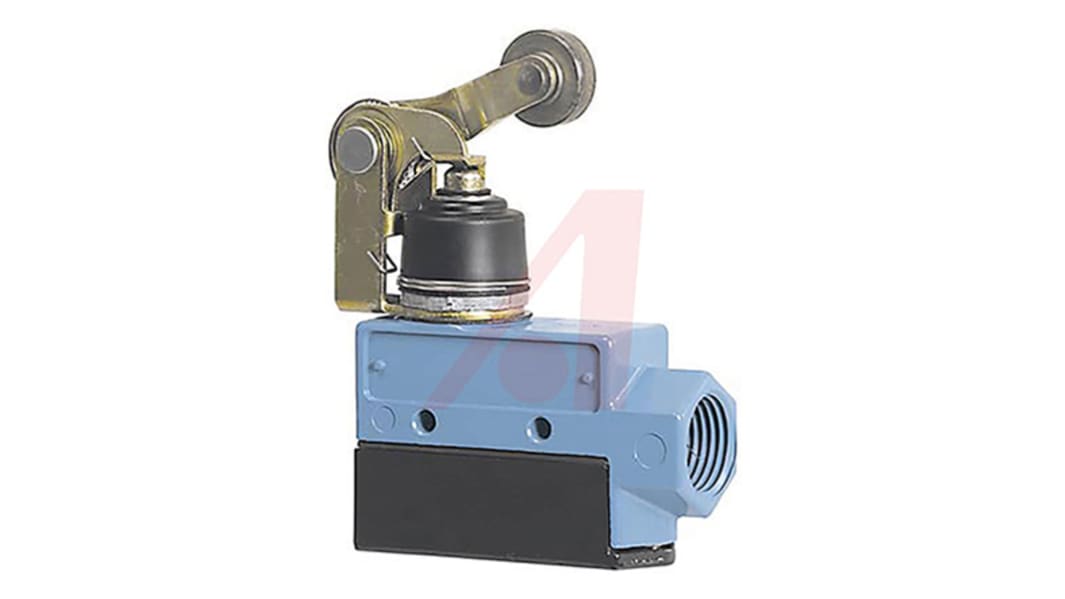

Honeywell BZE6 Series Roller Lever Limit Switch, NO/NC, IP66, SPDT, Die Cast Zinc Housing, 600V ac Max, 15A Max
- RS Stock No.:
- 808-2754
- Mfr. Part No.:
- BZE6-2RN2
- Brand:
- Honeywell
9 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$381.54
(exc. GST)
$419.69
(inc. GST)
Units | Per unit |
1 - 24 | $381.54 |
25 - 124 | $377.23 |
125 + | $310.46 |
- RS Stock No.:
- 808-2754
- Mfr. Part No.:
- BZE6-2RN2
- Brand:
- Honeywell
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
BZE6 Enclosed Limit Switches
The BZE6 series from Honeywell provides a range of metal housed limit switches with enhanced precision operation and robust actuation. The BZE6 limit switches allow for easy wiring by featuring a large wiring enclosure, the BZE6 range are all side mountable.
BZE6 series featuring side mounting
Die-cast zinc housing for robustness and durability
Wide temperature operating range
Die-cast zinc housing for robustness and durability
Wide temperature operating range
Approvals
UL, CSA.
Specifications
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | SPDT |
Normal State Configuration | NO/NC |
IP Rating | IP66 |
Maximum Current | 15A |
Housing Material | Die Cast Zinc |
Maximum AC Voltage | 600V |
Maximum DC Voltage | 250V |
Connection Type | 1/2 in NPT |
Series | BZE6 |
Action Type | Snap Action |
Length | 25.4mm |
Maximum Operating Temperature | +71°C |
Width | 44.4mm |
Depth | 77.2mm |
Minimum Operating Temperature | -32°C |
Mounting Orientation | Side |
