- RS Stock No.:
- 757-9140
- Mfr. Part No.:
- D4B4111N
- Brand:
- Omron
- RS Stock No.:
- 757-9140
- Mfr. Part No.:
- D4B4111N
- Brand:
- Omron
Legislation and Compliance
Product Details

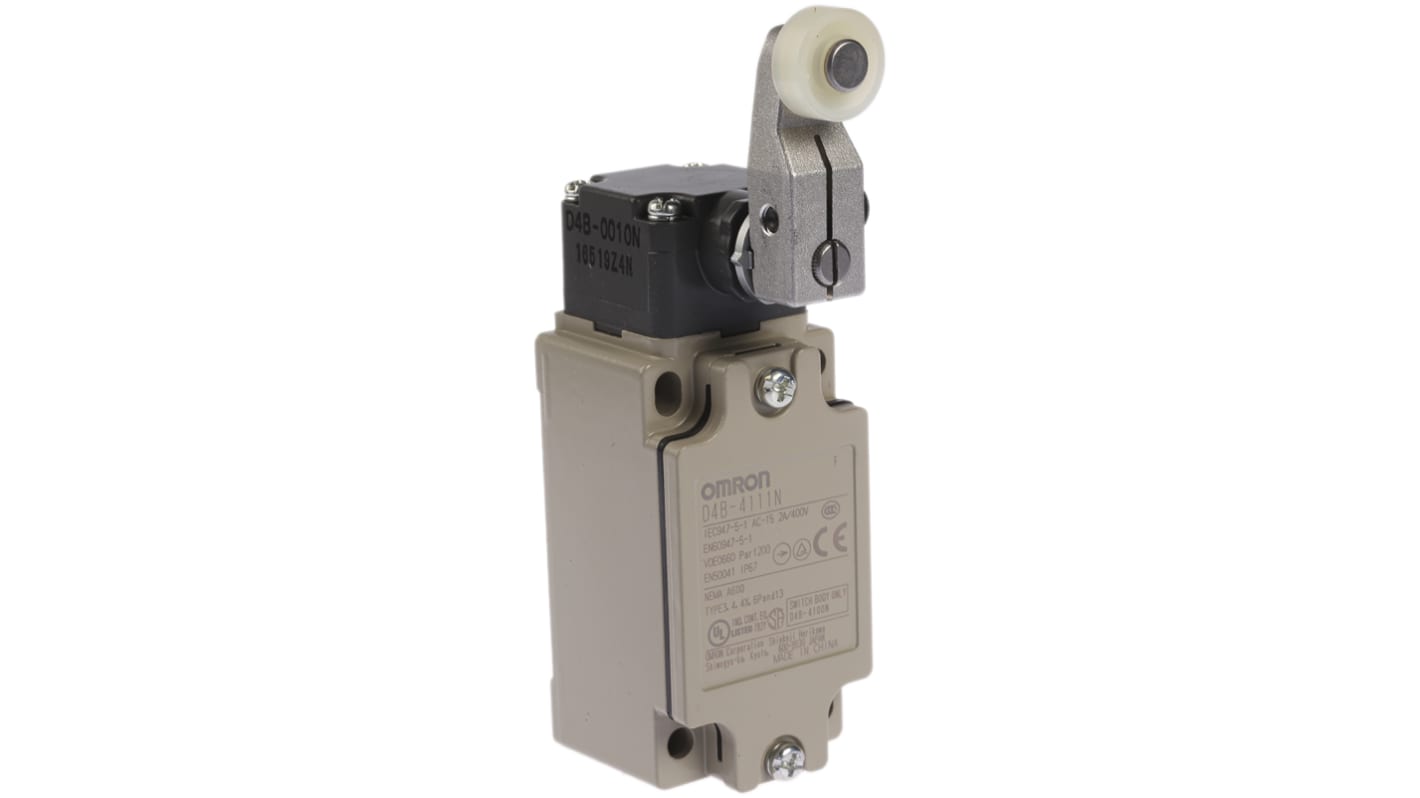

OMRON Interlock Switch, 99.5 (L) x 40 (W) x 43mm (D), 30 Operations/Minute Operating Frequency - D4B-N Series - D4B4111N
To prevent workers from accessing hazardous areas, put this interlock switch from OMRON on guard. When an object comes into contact with the roller lever actuator, it signals the switch to open or close the contacts, turning the machine off. Moving this unit to the left or right is a breeze thanks to the push button. As this switch resists shock and vibration, it remains stable on shaky grounds. The metal lever is completed with a resin roller, which resists wear and doesn't damage objects it touches.
Features & Benefits
Operating frequency of 30 operations/minute for reliable long-term performance
Tough metal housing withstands impacts and abrasion
Head seal function is strengthened for dust-tight finishing
4-position turret head gives you flexibility during assembly
Tough metal housing withstands impacts and abrasion
Head seal function is strengthened for dust-tight finishing
4-position turret head gives you flexibility during assembly
Applications
Manufacturing industry
Mining equipment
Railway sector
Mining equipment
Railway sector
What operating speed will I get from this switch?
Thanks to an operating speed of 1mm/s to 0.5m/s, you can trust this switch to rapidly change the contact's state.
How durable is the switch?
A mechanical service life of 30 million cycles tells you this switch lasts for a long time with minimal risk of damage.
Specifications
Attribute | Value |
---|---|
Actuator Type | Roller Lever |
Pole and Throw Configuration | DPST |
Normal State Configuration | NO/NC |
IP Rating | IP67 |
Housing Material | Metal |
Connection Type | M20 |
Series | D4B-N |
Action Type | Snap Action |
Length | 99.5mm |
Minimum Operating Temperature | -40°C |
Depth | 43mm |
Width | 40mm |
Maximum Operating Temperature | +80°C |
Standards Met | CCC, CE, CSA, UL |
Mechanical Life | 30000000Cycles |
