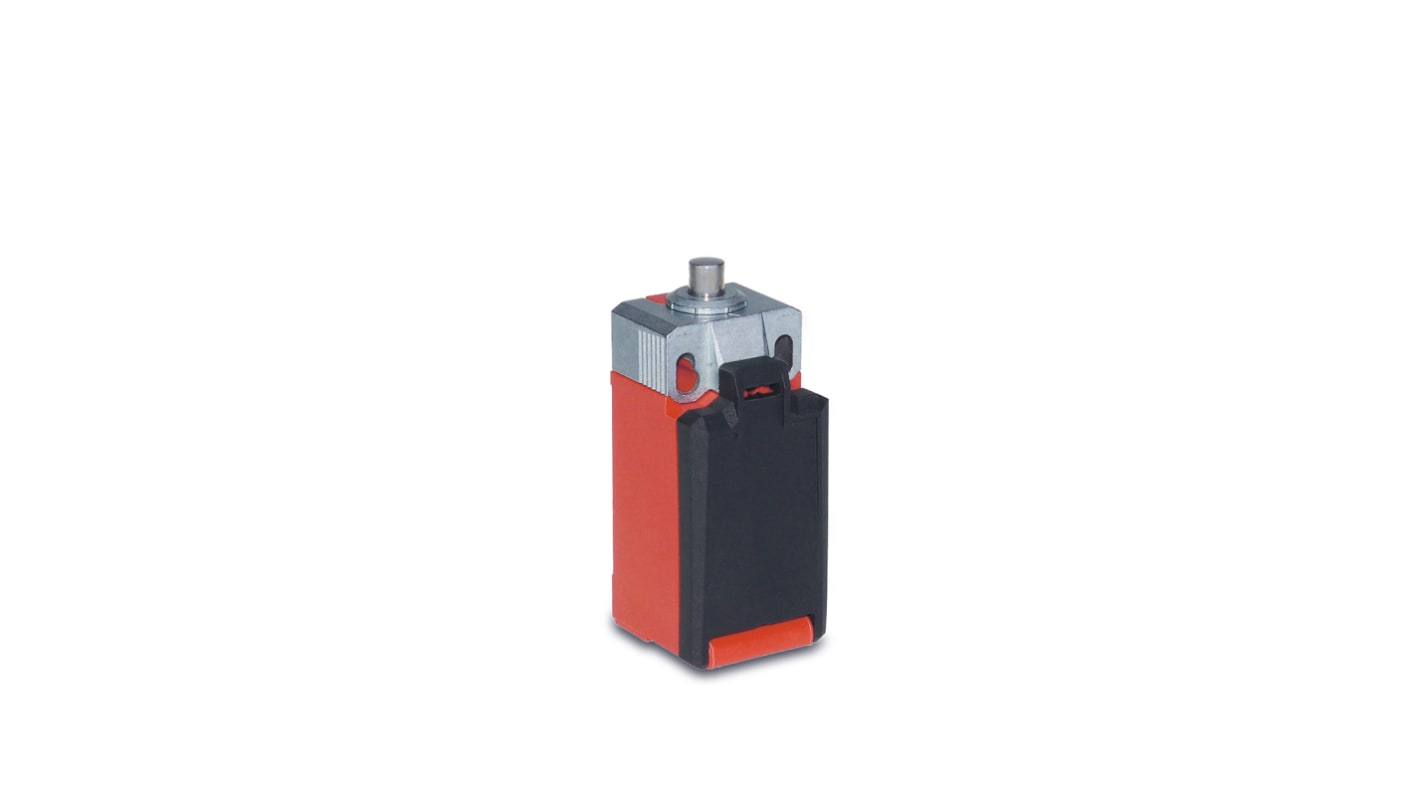

Bernstein AG IN65 Series Plunger Limit Switch, NC/NO, IP66, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max
- RS Stock No.:
- 189-5279
- Mfr. Part No.:
- 6083000208
- Brand:
- Bernstein AG
2 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$57.21
(exc. GST)
$62.93
(inc. GST)
Units | Per unit |
1 + | $57.21 |
- RS Stock No.:
- 189-5279
- Mfr. Part No.:
- 6083000208
- Brand:
- Bernstein AG
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The IN65 switches can be used on safety facilities and for position monitoring in virtually any industrial application. The modularity allows for great flexibility, enabling individual customer solutions to be realised. Due to the metal actuator locking and mounting clip the product is particularly robust. The IN65 ideally combines the economic advantages of a plastic bodied switch, with the sturdiness of a metal bodied one.
Standard switches
Modular design
High reliability at low currents (1 mA)
Tool-free turning and changing of actuator
Metal actuator locking
Metal mounting clip
Hinged snap-on cover
Slow-action and snap-action contacts
Mechanical service life: up to 30 million switching cycles
Different actuators available
Adjustable actuator elements (8 x 45° repositioning)
Adjustable lever
Rotatable lever
Modular design
High reliability at low currents (1 mA)
Tool-free turning and changing of actuator
Metal actuator locking
Metal mounting clip
Hinged snap-on cover
Slow-action and snap-action contacts
Mechanical service life: up to 30 million switching cycles
Different actuators available
Adjustable actuator elements (8 x 45° repositioning)
Adjustable lever
Rotatable lever
Specifications
Attribute | Value |
---|---|
Actuator Type | Plunger |
Pole and Throw Configuration | DPST |
Normal State Configuration | NC/NO |
IP Rating | IP66, IP67 |
Maximum Current | 5A |
Housing Material | Glass Fibre Reinforced Thermoplastic |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 24V |
Connection Type | M20 |
Series | IN65 |
Action Type | Slow Action, Snap Action |
Length | 31mm |
Width | 74mm |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +75°C |
Depth | 30.3mm |
Mechanical Life | 30000000Cycles |
Operating Force | 10 N |
Mounting Orientation | Screw |
