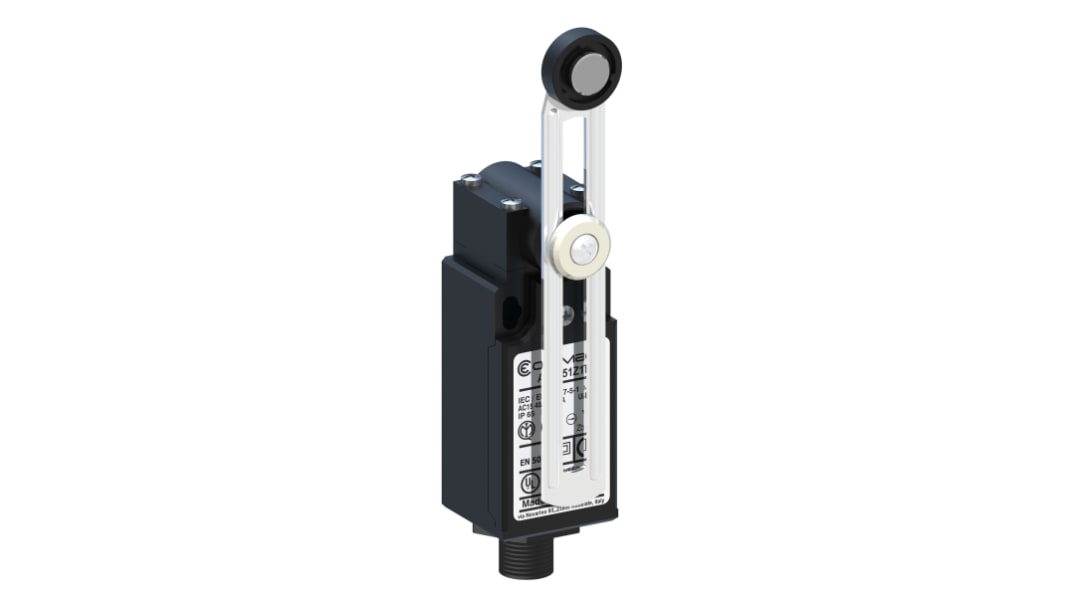

RS PRO Roller Lever Limit Switch, NO/NC, IP65, DPST, Plastic Housing, 400V ac Max, 10A Max

RS Stock No.:: 153-3965
Brand:: RS PRO

RS PRO Roller Lever Limit Switch, NO/NC, IP65, DPST, Plastic Housing, 400V ac Max, 10A Max

25 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$73.95

(exc. GST)

$81.35

(inc. GST)

Units	Per unit
1 - 4	$73.95
5 +	$60.88

RS Stock No.:: 153-3965
Brand:: RS PRO

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

RS M20 AP Series Limit Switches

Easy to use electromechanical limit switches offer special qualities and purpose built detection devices with characteristics such as, presence/absence, positioning and travel limit, objects passing and counting. These limit switches are made from reinforced UL-VO thermoplastic fibre-glass offering double insulation and protection of IP65.

Visible operation
Able to switch strong currents – 10 A conventional thermal current
Electrically separated contacts
Precise operating points – consistency
Immune to electromagnetic disturbances
Variety of operating heads, plain plunger, roller plunger, Roller lever
Standardized dimension to EN 50047 and EN 50041
Plastic casing to IP65
Double insulation

Double Insulated Plastic Casing IP65 Limit Switches

Approvals

IEC 947-5-1, EN 60947-5-1

Specifications

Attribute	Value
Actuator Type	Roller Lever
Pole and Throw Configuration	DPST
Normal State Configuration	NO/NC
IP Rating	IP65
Maximum Current	10A
Housing Material	Plastic
Maximum AC Voltage	400V
Maximum DC Voltage	250V
Connection Type	M12
Action Type	Snap Action
Length	30.3mm
Maximum Operating Temperature	+70°C
Depth	171mm
Minimum Operating Temperature	-25°C
Width	46mm
Mounting Orientation	Vertical
Mechanical Life	15000000Cycles
