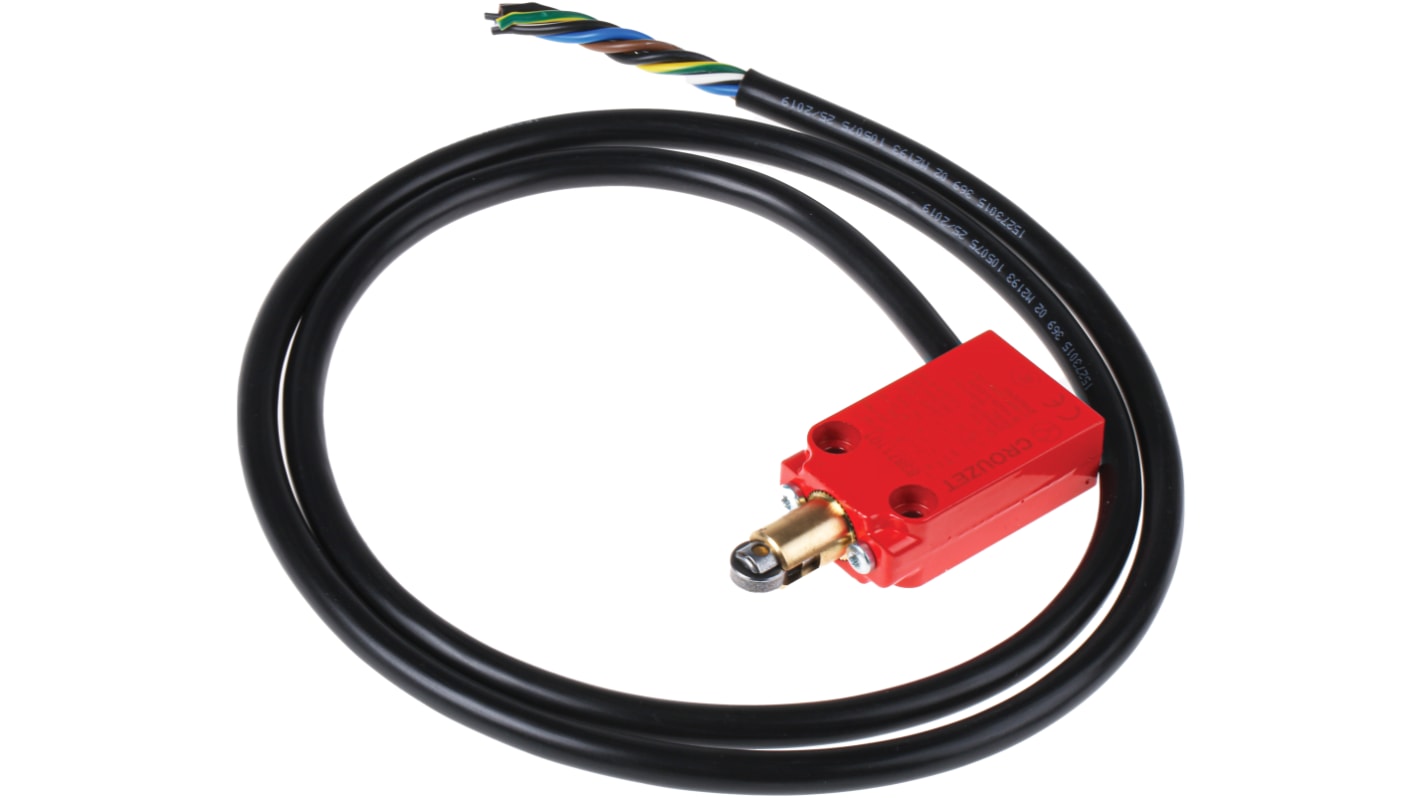

IP66, IP67 Snap Action Limit Switch Plunger Metal, NO/NC, 240V

  • RS Stock No. 539-343
  • Mfr. Part No. 83871101
  • Manufacturer Crouzet
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Compact Metal Limit Switch with Cable Output

Metal cased limit switches complete with fitted 5 core 0.75mm2 7.3mm ext. dia.cable and four terminal double break two-way contact elements with positive opening contacts which are electrically isolated from one another.

Impulse voltage 2500V
Insulation voltage 500V
Thermal Current (Ith) 10A
Minimum load switching voltage 10V
Minimum load switching current 10mA
Temperature range -25 to +70 deg C
Minimum current switching load 100mA
1 Metre cable length
20mm pitch mounting holes
IP66/67

Note

Dimensions refer to limit switch body only.

Approvals

UL508, UL50

Telemecanique, Square D & Crouzet

Specifications
Attribute Value
Actuator Type Plunger
Normal State Configuration NO/NC
IP Rating IP66, IP67
Maximum Current 6 A
Housing Material Metal
Maximum AC Voltage 240V
Maximum DC Voltage 125V
Connection Type Cable
Contact Type Snap Action
Length 69.9mm
Width 30mm
Depth 16mm
Maximum Operating Temperature +70°C
Dimensions 69.9 x 30 x 16 mm
Minimum Operating Temperature -25°C
3 : Next working day (AU stock)
18 : 5 working days (Global stock)
Price (ex. GST) Each
$ 92.53
(exc. GST)
$ 101.78
(inc. GST)
units
Per unit
1 - 5
$92.53
6 - 11
$90.27
12 +
$89.60
