- RS Stock No.:
- 539-246
- Mfr. Part No.:
- 83870301
- Brand:
- Crouzet
11 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$203.20
(exc. GST)
$223.52
(inc. GST)
Units | Per unit |
1 - 5 | $203.20 |
6 - 11 | $198.33 |
12 + | $194.39 |
- RS Stock No.:
- 539-246
- Mfr. Part No.:
- 83870301
- Brand:
- Crouzet
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MA
Product Details

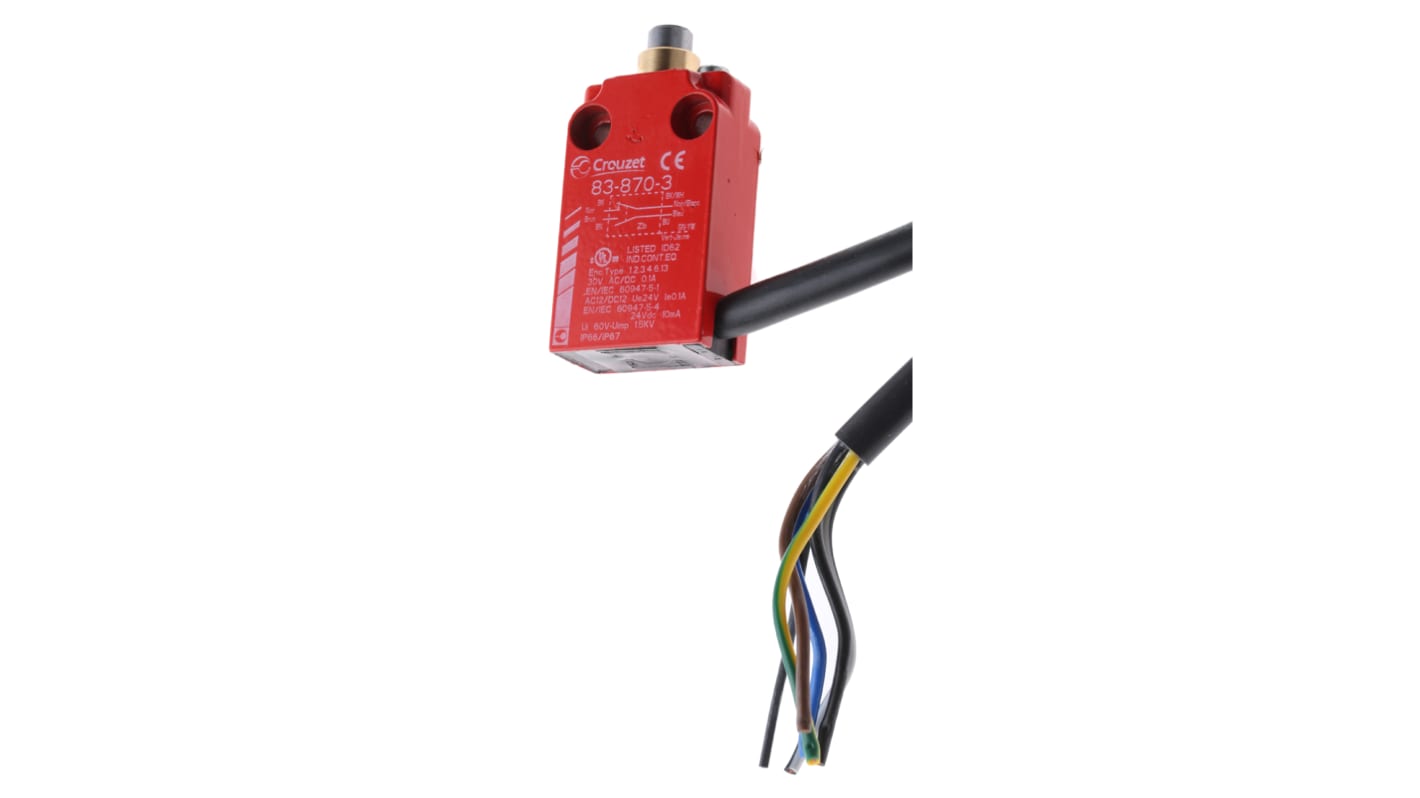

Compact Limit Switch with Low Level Cable Output Short Travel Series
Short travel series of Limit Switches, metal cased limit switches complete with fitted 5 core 0.75mm2 7.3mm ext. dia.cable, four terminal double break two-way contact elements.The 2 moving contacts are electrically isolated from one another.
Impulse voltage 2500V
Insulation voltage 250V
Operating voltage 4 to 30V
Operating current 1 to 100mA
1 metre cable length
Temperature range -25 to +70 deg C
20mm pitch mounting holes
IP66/67
Insulation voltage 250V
Operating voltage 4 to 30V
Operating current 1 to 100mA
1 metre cable length
Temperature range -25 to +70 deg C
20mm pitch mounting holes
IP66/67
Note
Dimensions refer to limit switch body only.
Approvals
UL508
Telemecanique, Square D & Crouzet
Specifications
Attribute | Value |
---|---|
Actuator Type | Plunger |
Normal State Configuration | NO/NC |
IP Rating | IP66, IP67 |
Maximum Current | 100mA |
Housing Material | Metal |
Maximum AC Voltage | 30V |
Maximum DC Voltage | 30V |
Connection Type | Cable |
Action Type | Snap Action |
Length | 59.8mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
Depth | 16mm |
Width | 30mm |
Mechanical Life | 10000000Cycles |
