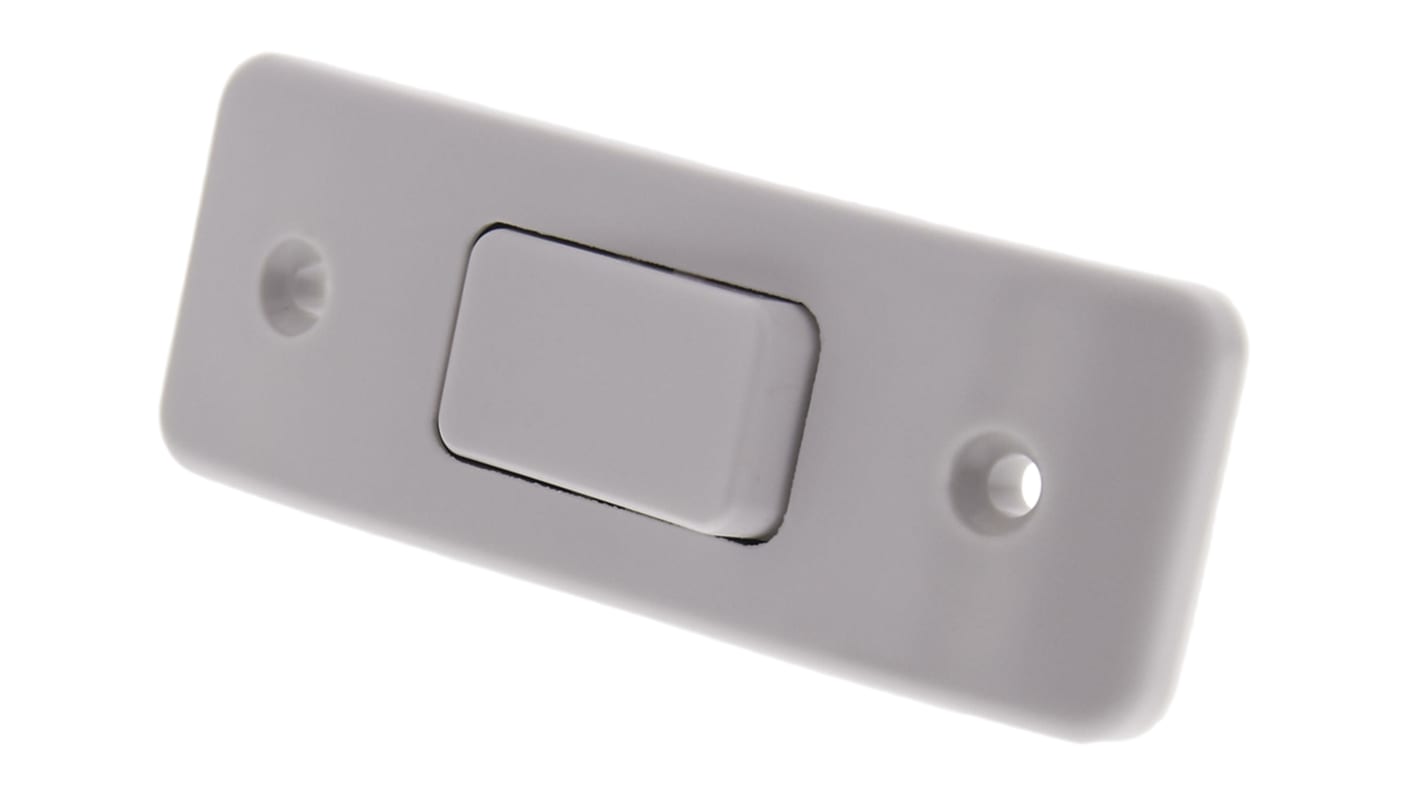

White 10 A Flush Mount Rocker Light Switch MK White 7 mm, 2 Way Clip In Semi Gloss, 1 Gang BS Standard, 250 V ac 86mm

  • RS Stock No. 440-8773
  • Mfr. Part No. K4841 WHI
  • Manufacturer MK Electric
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

10A Flush Mount Architrave Switches

A flush 10A single pole two way switch and a separately available blanking plate
Antimicrobial properties which inhibit the growth of infectious diseases
No derating necessary when used with fluorescent or inductive loads
Wire as one or two way as required

Standards

BS3676 Pt.1 : 1989

Standards

BS3676 Pt.1 : 1989

Supplied with

8888

MK Logic Plus Flush Mounting

Stylish, quality, reliable and safe products that incorporate a host of design features which make the installers job easier and quicker. Logic Plus products are made from a high grade thermoset material which has an inherent antimicrobial property. In recent independent tests, the Logic Plus products were equal to, or exceeded, competitor ’Anti-Bac’ products when tested for resistance to MRSA, E-Coli, Salmonella and Klebsiella Pneumoniae.

Specifications
Attribute Value
Switch Type Rocker
Number of Gangs 1
Number of Poles 1
Number of Ways 2
Mount Type Flush
Current Rating 10 A
IP Rating IP2X
Colour White
Material Urea Formaldehyde
Series Logic Plus
Voltage Rating 250 V ac
Finish Semi Gloss
Illumination Not Illuminated
Faceplate Fixing Clip In
Faceplate Depth 7 mm
Colour Shade MK White
Length 86 mm
Minimum Box Depth 16mm
Width 32 mm
Height 86mm
Termination Type Captive Screw
Fixing Standard BS Standard
Number of Modules 1
53 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 12.64
(exc. GST)
$ 13.90
(inc. GST)
units
Per unit
1 - 9
$12.64
10 - 49
$12.42
50 +
$12.18
