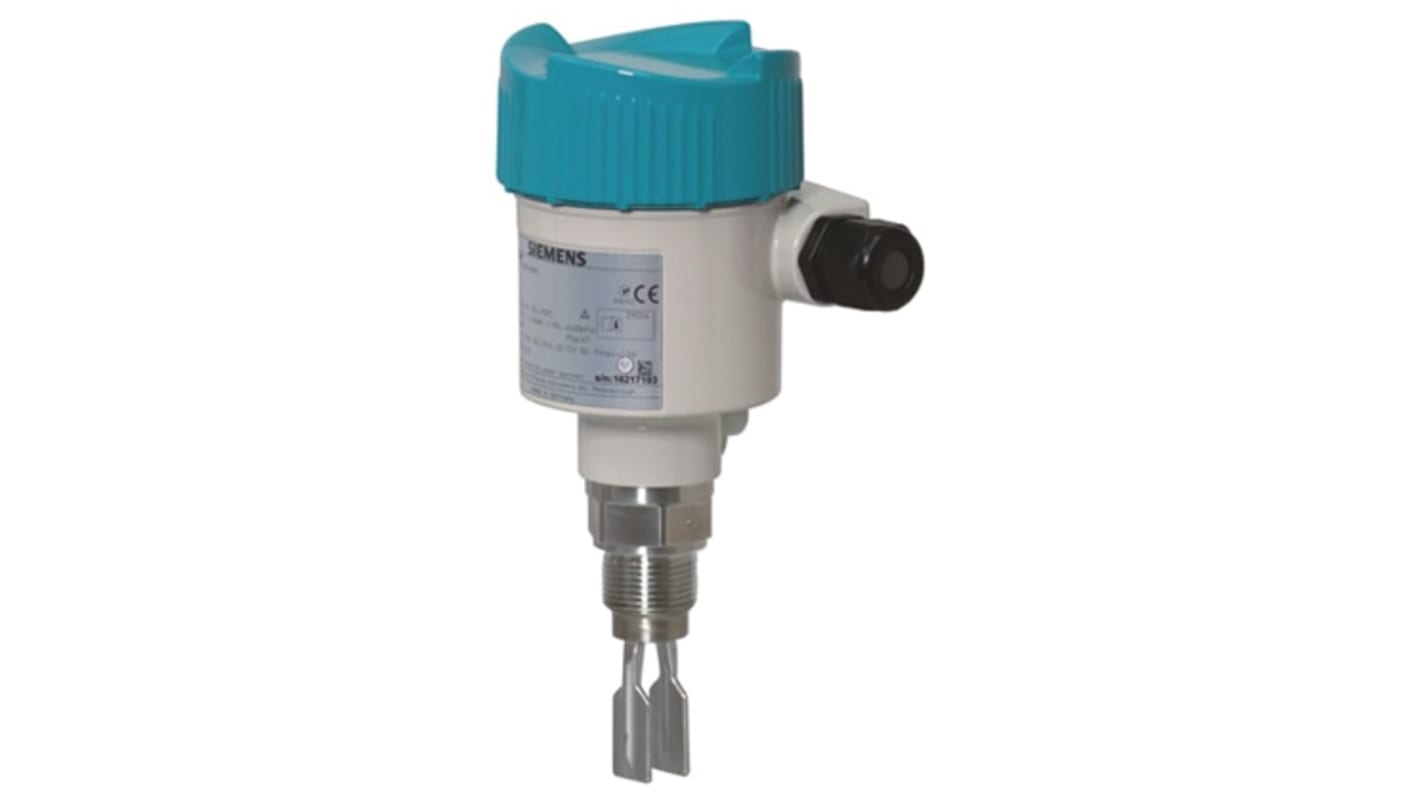

Siemens Vertical Mounting Vibrating Level Switch Relay Output

  • RS Stock No. 804-3963
  • Mfr. Part No. 7ML5746-1BA00-1AA0
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details


SITRANS Vibrating fork level switches can be used as high and low level switches and for dry run protection. Compact in size for easy installation. Vibrating fork sensors operate by oscillating two forks at their natural frequency in air. When submersed in a medium this frequency changes and triggers a response from the level switch. Vibrating point level switches have many advantages including minimal maintenance and installation requirements and they do not need calibration on commissioning. Suitable for a range of applications including Food and beverage, pharmaceuticals, oil and gas, waste water and shipping.

Easy installation
Rotatable enclosure
Adjustable sensitivity
Fault monitoring
Low Maintenance
SIL-2 certified
Die cast aluminium construction
Up to 64 bar working pressure
Up to 250°C process temperature

Vibrating Liquid Level Switches

Attribute Value
Device Type Vibrating Level Switch
Mounting Type Vertical
Switch Output Relay
Body Material Stainless Steel
Minimum Operating Temperature -50°C
Maximum Operating Temperature +250°C
Maximum Current 400 mA
Maximum Pressure 64bar
On back order for despatch 23/09/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 1,857.68
(exc. GST)
$ 2,043.45
(inc. GST)
Per unit
1 +
