ABB CM-ENS Series

  • RS Stock No. 746-7526
  • Mfr. Part No. 1SVR402902R0000
  • Manufacturer ABB
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Liquid Level Relay Accessories - ABB

Accessories including Compact Support assembly components, and electrode components, specifically for use with ABB conductive Liquid Level Relays.

Note

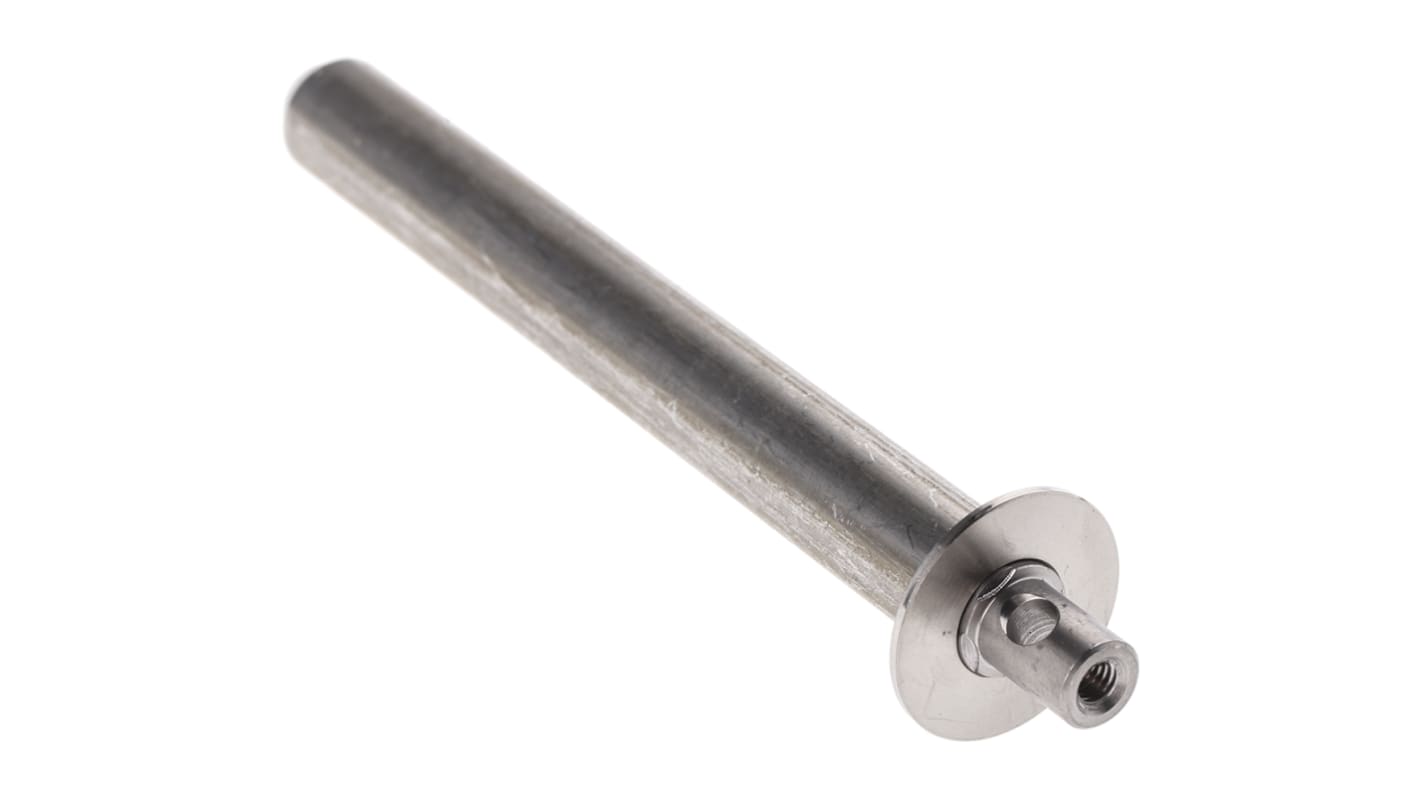

The product image shows the Compact Support and Electrode assembly showing each elements assembled together. Please ensure you select the correct component for your individual requirement: Compact Support for 3 Bar Electrodes - 746-7504 ; Distance Plate for 3 Bar Electrodes - 746-7508 ; Counter Nut for 1 inch thread - 746-7517 ; 3 Bar Electrode, 300mm - 746-7510 ; 600mm - 746-7514 ; 1000mm - 746-7523 . Suspension Electrode - 746-7526

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels

Specifications
Attribute Value
Device Type Electrode
Body Material Steel
Series CM-ENS
15 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 38.48
(exc. GST)
$ 42.33
(inc. GST)
units
Per unit
1 +
$38.48
