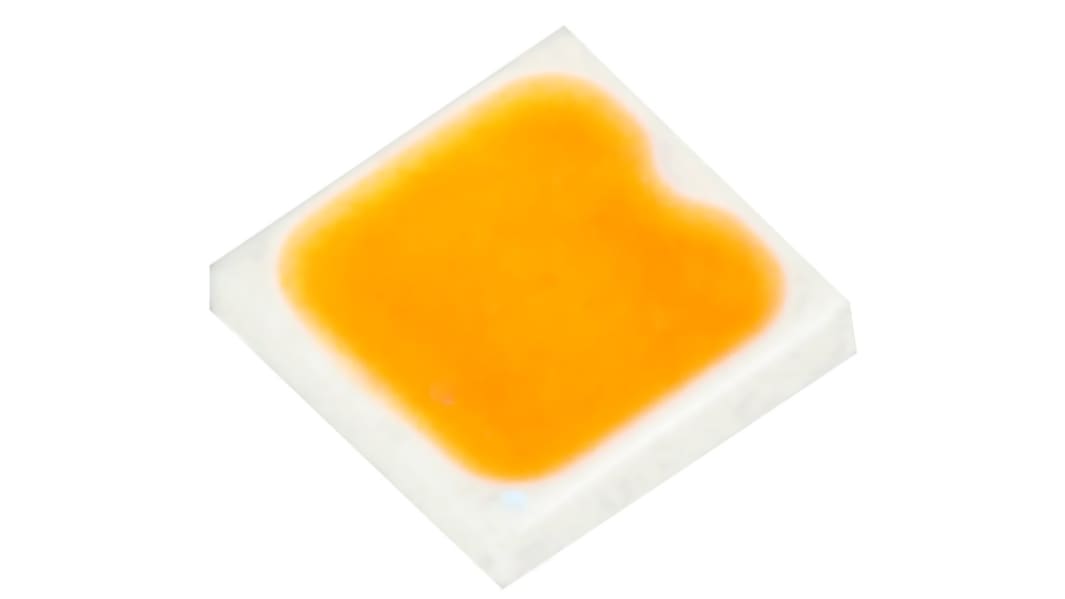

Seoul Semiconductor White LED S1S0-3030509503-0000003S-00001
- RS Stock No.:
- 180-6188
- Mfr. Part No.:
- S1S0-3030509503-0000003S-00001
- Brand:
- Seoul Semiconductor
On back order for despatch 28/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 4500)
$0.412
(exc. GST)
$0.453
(inc. GST)
| Units | Per unit | Per Reel* |
| 4500 - 4500 | $0.412 | $1,854.00 |
| 9000 - 13500 | $0.404 | $1,818.00 |
| 18000 + | $0.396 | $1,782.00 |
| *price indicative | ||
- RS Stock No.:
- 180-6188
- Mfr. Part No.:
- S1S0-3030509503-0000003S-00001
- Brand:
- Seoul Semiconductor
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
Seoul Semiconductor LED
The Seoul semiconductor 3.05V, white, surface mount LED comes in the standard package with a length of 3.0mm, a width of 3.0mm and height of 0.6mm. It has a substrate made from a moulded plastic reflector sitting on top of a lead frame. The die is attached within the reflector cavity and the cavity is encapsulated by silicone. The package design coupled with careful selection of component material allows this product to perform with high reliability.
Features and Benefits
• Thermally enhanced package design
• Mid-power to high power up to 0.2W
• Maximum driving current up to 150mA
• Compact package size
• High colour quality with CRI minimum 95 (R9>85)
• Pb-free reflow soldering application
• Eye safety (Exempt 5000K)
• 5000K 3-step MacAdam ellipse
• Mid-power to high power up to 0.2W
• Maximum driving current up to 150mA
• Compact package size
• High colour quality with CRI minimum 95 (R9>85)
• Pb-free reflow soldering application
• Eye safety (Exempt 5000K)
• 5000K 3-step MacAdam ellipse
Applications
• Commercial sites
• Industrial sites
• Replacement lamps - bulb, tube
• Residential sites
• Industrial sites
• Replacement lamps - bulb, tube
• Residential sites
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| LED Colours | White |
