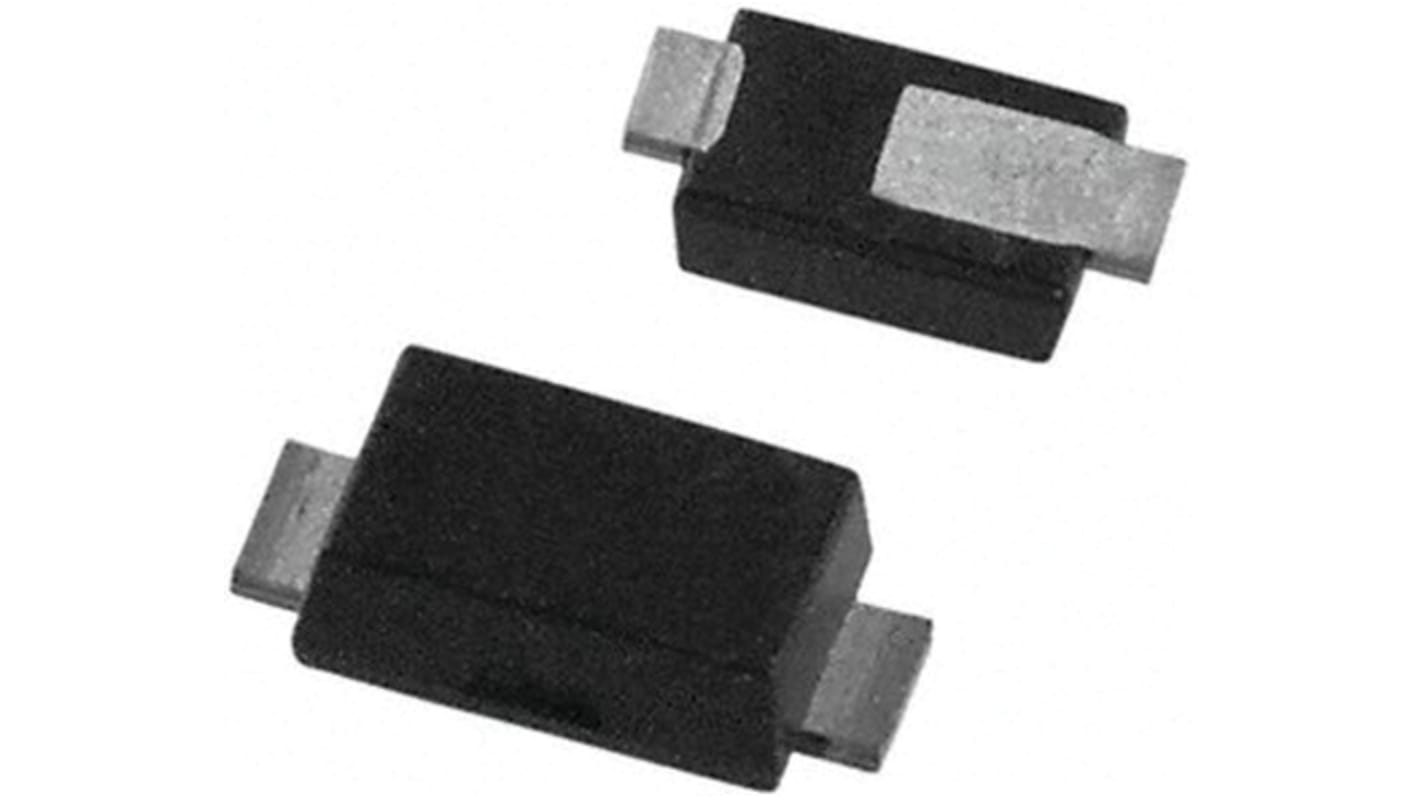

DiodesZetex AL5809-90P1-7 LED Driver IC, 60 V 94.5mA 2-Pin PDI-123

  • RS Stock No. 921-0348
  • Mfr. Part No. AL5809-90P1-7
  • Manufacturer DiodesZetex
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Linear LED Drivers, Diodes Inc

The Linear LED Drivers provide a simple and effective solution to driving low-current, high-brightness LEDs.

LED Drivers, Diodes Inc

Specifications
Attribute Value
Output Current 94.5mA
Input Voltage 60 V
AC or DC Input Voltage Ac, Dc
Dimming Operation PWM
Application Instrumentation Lighting, LED Application, LED Lighting, Signage, White goods
Package Type PDI-123
Number of Pins 2
Maximum Output Voltage 60V
Minimum Output Voltage 2.5V
Current Rating 94.5mA
Power Dissipation 1.24W
Series AL5809
200 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 20)
$ 0.65
(exc. GST)
$ 0.71
(inc. GST)
units
Per unit
Per Pack*
20 - 80
$0.65
$13.00
100 - 480
$0.578
$11.56
500 - 980
$0.526
$10.52
1000 - 2480
$0.494
$9.88
2500 +
$0.489
$9.78
*price indicative
Packaging Options:
