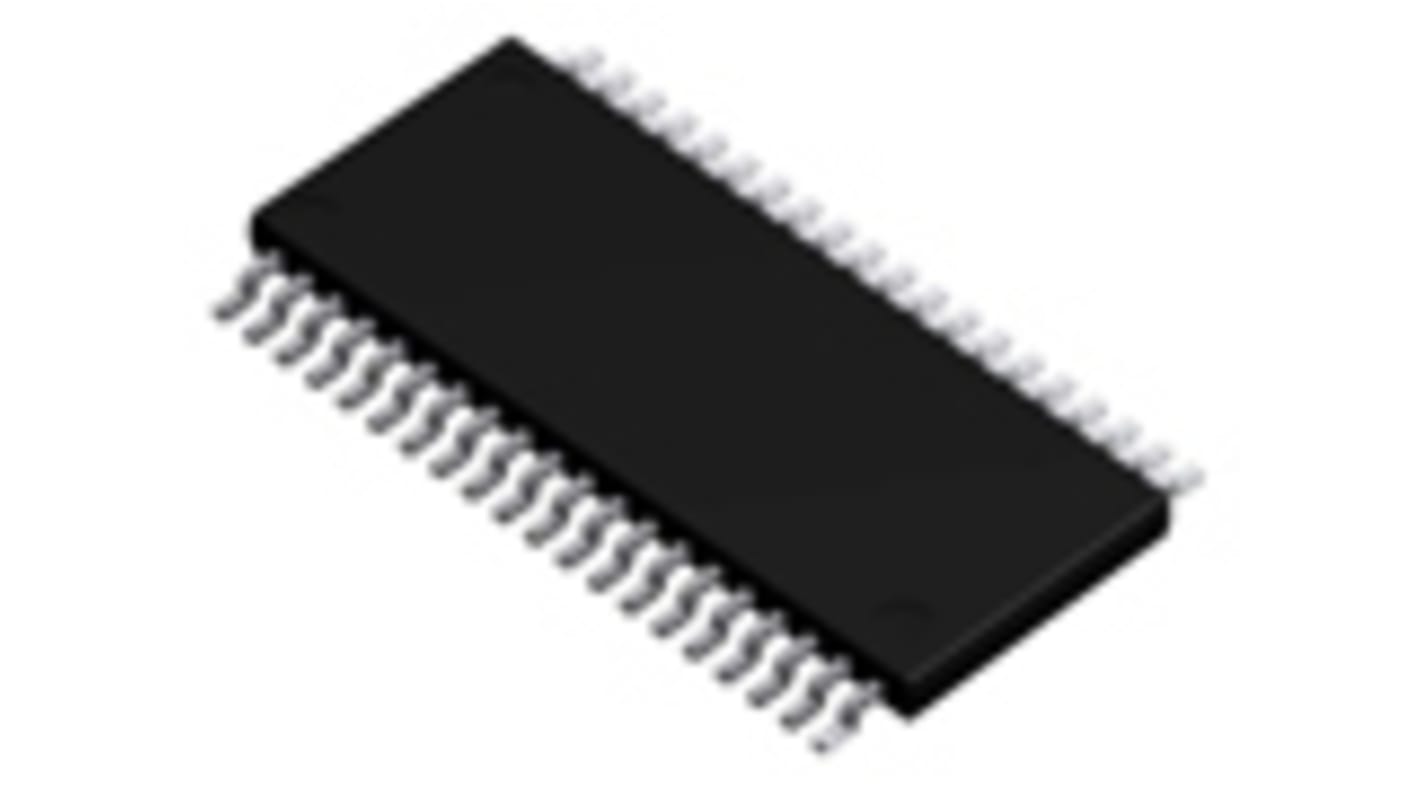

BD9397EFV-GE2, LED driver, HTSOP-40

  • RS Stock No. 171-6956
  • Mfr. Part No. BD9397EFV-GE2
  • Manufacturer ROHM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

ROHM LED Driver

The ROHM BD9397EFV series is a high-efficiency LED driver for white LEDs and designed for a large LCD panel. This IC is a built-in high current drive with high responsibility type 6ch LED drivers and 1ch boost DC-DC converter. It has some protective function against fault conditions, such as the over-voltage protection (OVP), LED open and short protection and the overcurrent limit protection of DCDC (OCP). Therefore, it is available for the fail-safe design over a wide range output voltage.

Features and Benefits

Operating power supply voltage range is 9.0V to 35.0V Oscillator frequency is 500kHz (RT=30kohm) Operating current is 9mA Operating temperature ranges between -40°C and 85°C Constant current accuracy is ±1.8% Error detection output FAIL terminal inside

Applications

Computer Display LCD backlighting Notebook TV

On back order for despatch 25/09/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Pack of 2)
$ 4.03
(exc. GST)
$ 4.43
(inc. GST)
units
Per unit
Per Pack*
2 - 98
$4.03
$8.06
100 - 248
$3.75
$7.50
250 - 498
$3.395
$6.79
500 - 998
$3.105
$6.21
1000 +
$2.88
$5.76
*price indicative
