Infineon ILD6150XUMA1 LED Driver IC, 4.5 → 60 V 1.5A 8-Pin

  • RS Stock No. 166-0822
  • Mfr. Part No. ILD6150XUMA1
  • Manufacturer Infineon
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

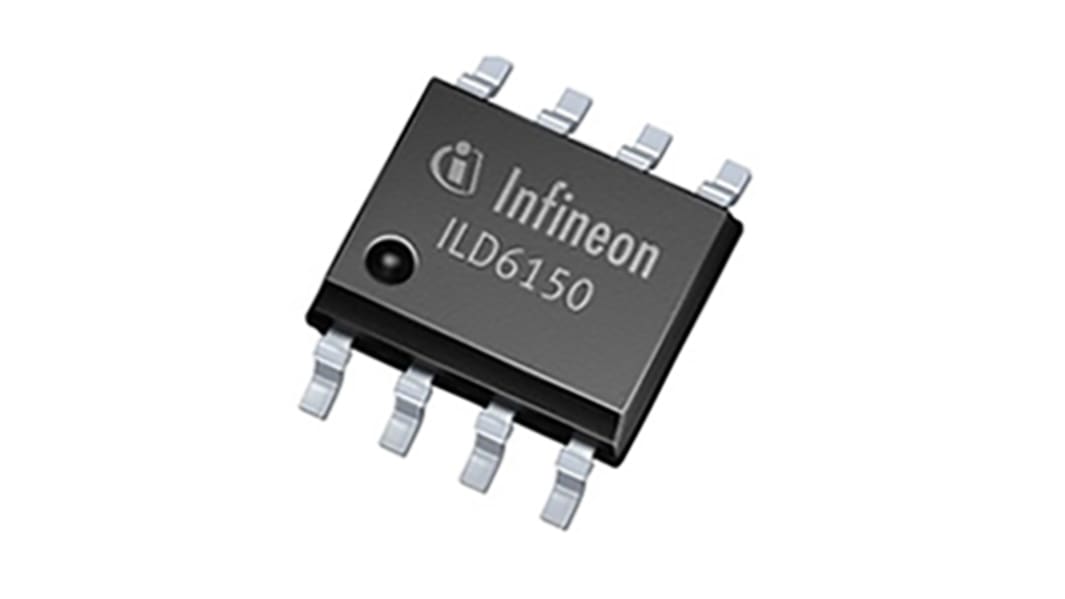

ILD6150 LED Driver IC

The Infineon ILD6150 is a DC/DC LED Driver IC tailored to drive high-power LEDs and LED arrays and it offers flexible dimming options. These highly efficient switch mode LED drivers increase system efficiencies up to 98% and offer analogue or PWM dimming interfaces. Typical applications are luminaires for commercial or residential lighting or electronic control gears.

Features

Supports buck topology
Wide usable input voltage from 4.5 V to 60 V
Integrated switch rated up to 1500 mA
High efficiency up to 90%
Dimming level down to 1%,
PWM or analogue dimming
Adjustable over temperature protection
Overcurrent protection
High output current accuracy ± 3%
Up to 3000:1 contrast ratio

LED Drivers, Infineon

Specifications
Attribute Value
Output Current 1.5A
Input Voltage 4.5 → 60 V
AC or DC Input Voltage Dc
Dimming Operation Analogue, PWM
Application LED Ballasts, LED Driver for General Lighting, Office, Residential Downlights, Retail, Street Lightning, Tunnel Lighting
Number of Pins 8
Maximum Output Voltage 60V
Minimum Output Voltage -0.3V
Power Dissipation 2W
On back order for despatch 31/12/2019, delivery within 5 working days from despatch date.
Price (ex. GST) Each (On a Reel of 2500)
$ 1.94
(exc. GST)
$ 2.13
(inc. GST)
units
Per unit
Per Reel*
2500 +
$1.94
$4,850.00
*price indicative
