- RS Stock No.:
- 912-0554
- Mfr. Part No.:
- HDSM-291C
- Brand:
- Broadcom
- RS Stock No.:
- 912-0554
- Mfr. Part No.:
- HDSM-291C
- Brand:
- Broadcom
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

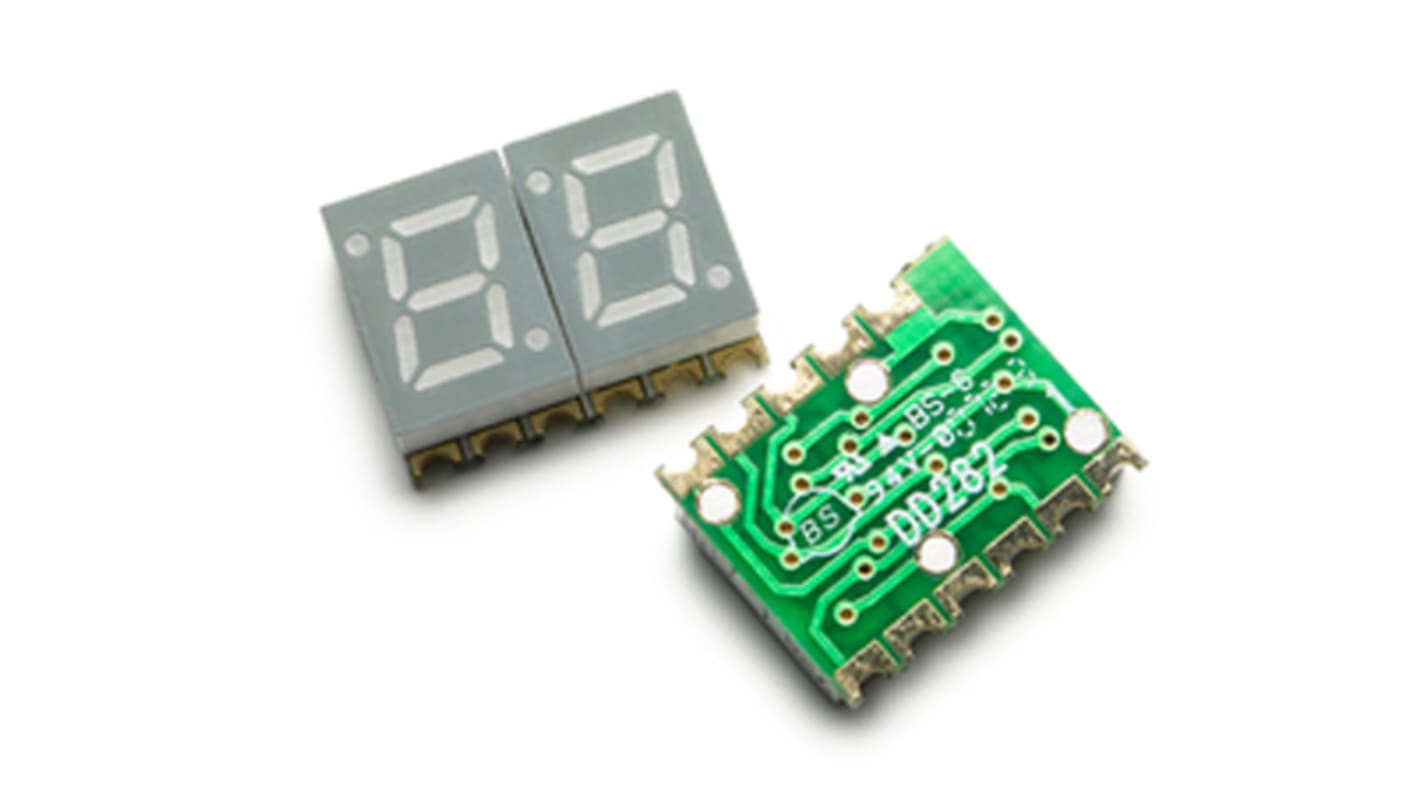

2- and 4-Digit 7-segment LED Displays
A range of 2- and 4-digit 7-segment Red and Green LED displays from Broadcom (Avago Technologies) in a variety of character heights.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | 7-Segment |
Number of Characters | 2 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 632 nm |
Character Width | 4.6mm |
Character Height | 7mm |
Common Connection | Anode |
Mounting Type | Surface Mount |
External Width | 12mm |
External Height | 15.1mm |
External Dimensions | 15.1 x 12 x 3.75mm |
External Depth | 3.8mm |
Luminous Intensity | 7.5 mcd |
Colour of Face | Grey |
Power Dissipation | 65mW |
Forward Voltage | 2 V |
For Use With | Traffic Management |
Forward Current | 25mA |
Series | HDSM |
Operating Temperature Range | -40 → +105°C |
Maximum Operating Temperature | +105°C |
Decimal Orientation | Lower, Upper |
Minimum Operating Temperature | -40°C |
