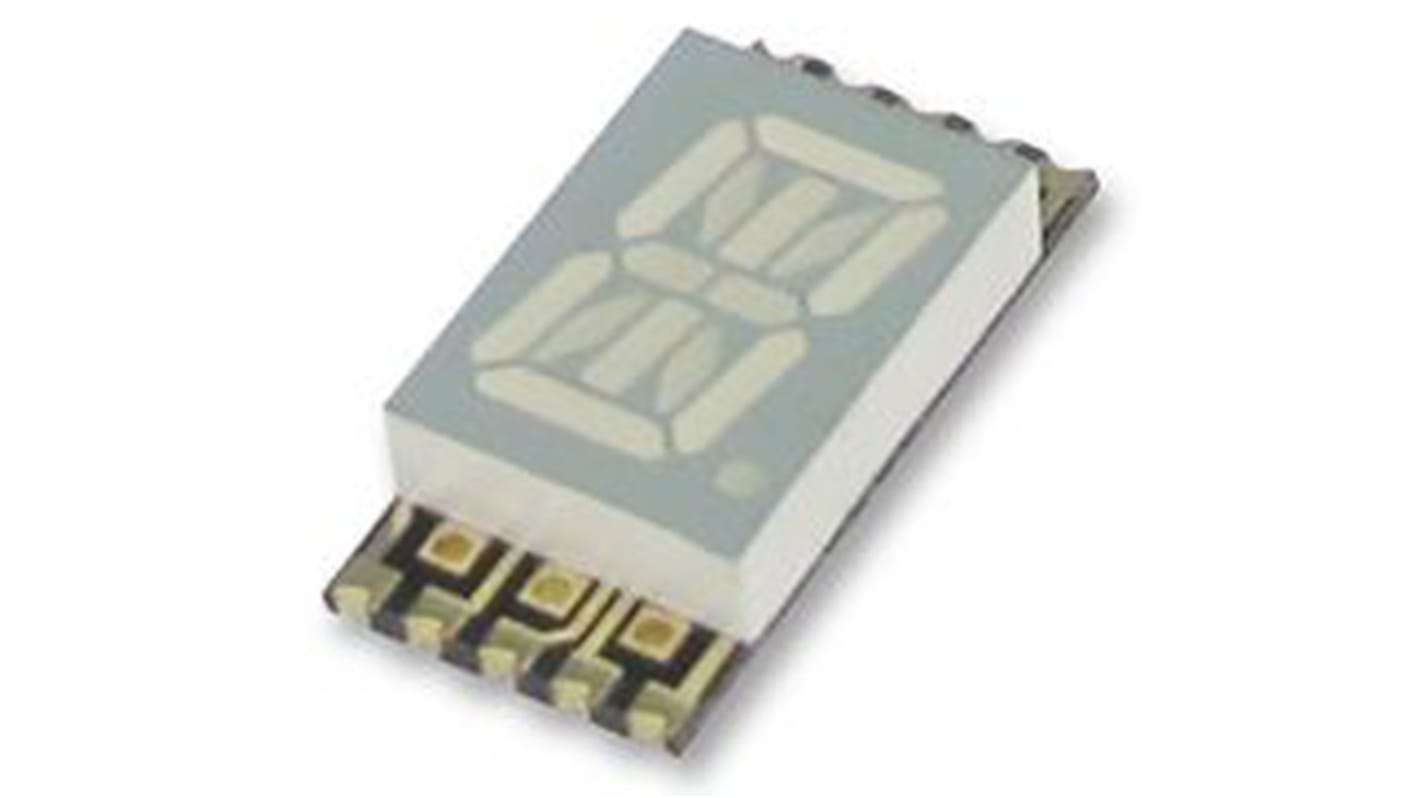

KCPSC04-105 Kingbright 14-Segment LED Display, CC Red 36 mcd RH DP 10.2mm
- RS Stock No.:
- 871-7359
- Mfr. Part No.:
- KCPSC04-105
- Brand:
- Kingbright
52 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 4)
$10.018
(exc. GST)
$11.02
(inc. GST)
| Units | Per unit | Per Pack* |
| 4 - 96 | $10.018 | $40.072 |
| 100 - 196 | $9.783 | $39.132 |
| 200 + | $9.65 | $38.60 |
| *price indicative | ||
- RS Stock No.:
- 871-7359
- Mfr. Part No.:
- KCPSC04-105
- Brand:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Single Digit Alphanumeric Display, Kingbright 10.16 mm (0.4 in)
Sixteen-segment displays
Surface mounted (SMD)
Single-digit for numbers and letters
0.4 inch (10.16 mm) character height
13 x 9.3 mm display module
High contrast and high light output
Low current operation
Grey colour module face
Mechanically rugged
Colours: Red, Green, Yellow
Surface mounted (SMD)
Single-digit for numbers and letters
0.4 inch (10.16 mm) character height
13 x 9.3 mm display module
High contrast and high light output
Low current operation
Grey colour module face
Mechanically rugged
Colours: Red, Green, Yellow
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Alphanumeric LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 14-Segment |
| Number of Characters | 1 |
| LED Colours | Red |
| Number of Segments | 14 |
| Dominant Wavelength | 630 nm |
| Character Width | 6mm |
| Character Height | 10.2mm |
| Common Connection | Cathode |
| Mounting Type | Surface Mount |
| External Depth | 19mm |
| External Height | 3.8mm |
| External Width | 9.3mm |
| External Dimensions | 9.3 x 19 x 3.8mm |
| Luminous Intensity | 36 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 2 V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Series | KCPSC04 |
| Forward Current | 30mA |
| Minimum Operating Temperature | -40°C |
| Decimal Orientation | Right Side |
