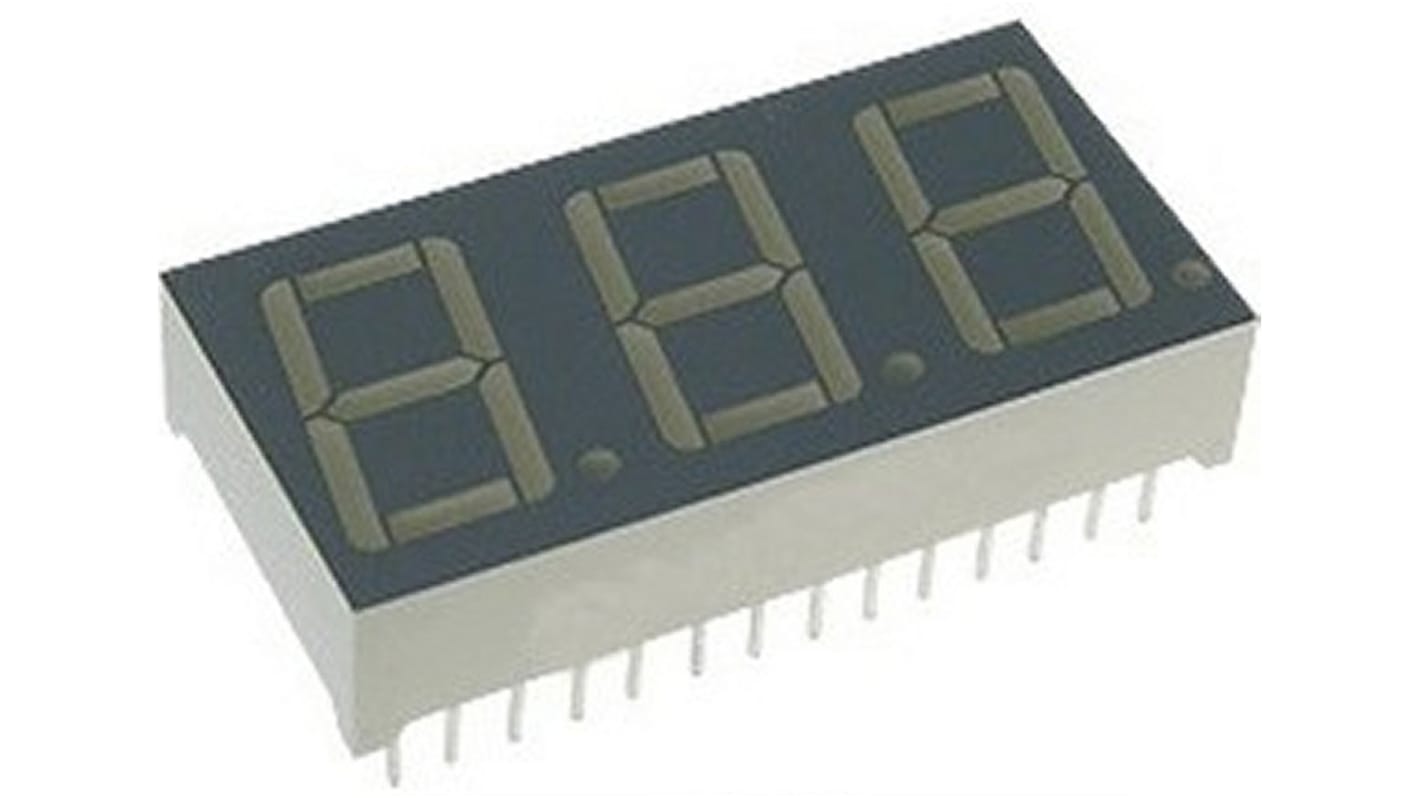

BA56-12SURKWA Kingbright 3 Digit 7-Segment LED Display, CA Red 73 mcd RH DP 14.2mm

  • RS Stock No. 863-4963
  • Mfr. Part No. BA56-12SURKWA
  • Manufacturer Kingbright
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Triple Digit 7-segment Display

A range of triple-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant

7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 3
LED Colours Red
Number of Segments 7
Dominant Wavelength 630 nm
Character Width 8mm
Character Height 14.2mm
Common Connection Anode
Mounting Type Through Hole
External Height 19mm
External Width 37.6mm
External Depth 8.1mm
External Dimensions 37.6 x 19 x 8.1mm
Luminous Intensity 73 mcd
Colour of Face Grey
Power Dissipation 75mW
Forward Voltage 2 V
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
Minimum Operating Temperature -40°C
Forward Current 30mA
Decimal Orientation Right Side
78 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Tube of 13)
$ 8.141
(exc. GST)
$ 8.955
(inc. GST)
units
Per unit
Per Tube*
13 - 13
$8.141
$105.833
26 - 52
$8.065
$104.845
65 - 117
$7.961
$103.493
130 +
$7.858
$102.154
*price indicative
