HDSP-H151 Broadcom 7-Segment LED Display, CA Red 16 mcd RH DP 14.2mm

RS Stock No.:: 830-5151
Mfr. Part No.:: HDSP-H151
Brand:: Broadcom

HDSP-H151 Broadcom 7-Segment LED Display, CA Red 16 mcd RH DP 14.2mm

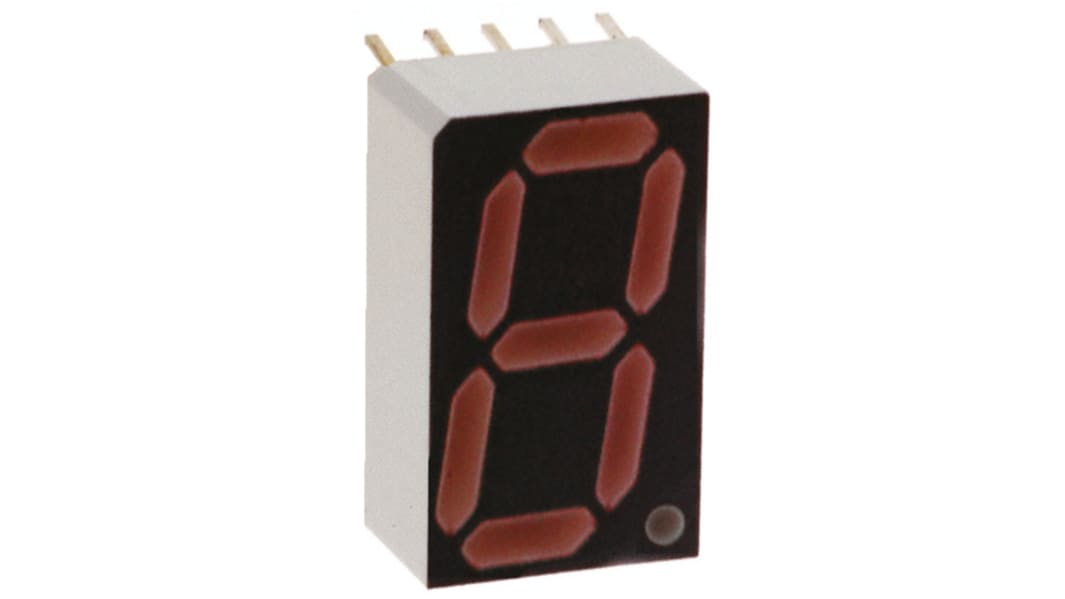

This image is representative of the product range

70 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 5)

$6.888

(exc. GST)

$7.577

(inc. GST)

Units	Per unit	Per Pack*
5 - 75	$6.888	$34.44
80 - 155	$6.768	$33.84
160 +	$6.642	$33.21
*price indicative

RS Stock No.:: 830-5151
Mfr. Part No.:: HDSP-H151
Brand:: Broadcom

Technical data sheets

HDSP Series 14.2 mm (0.56 inch) Seven Segment Displays Datasheet

Legislation and Compliance

Product Details

Single-digit 7-segment Red LED Displays

A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Broadcom 7-Segment LED Displays

Specifications

Attribute	Value
Display Type	7-Segment
Number of Characters	1
LED Colours	Red
Number of Segments	7
Dominant Wavelength	637 nm
Character Width	7.8mm
Character Height	14.2mm
Common Connection	Anode
Mounting Type	Through Hole
External Depth	17mm
External Dimensions	12.573 x 17.02 x 8mm
External Width	12.6mm
External Height	8mm
Luminous Intensity	16 mcd
Colour of Face	Grey
Forward Voltage	1.8 V
Forward Current	40mA
Maximum Operating Temperature	+100°C
Decimal Orientation	Right Side
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +100°C
