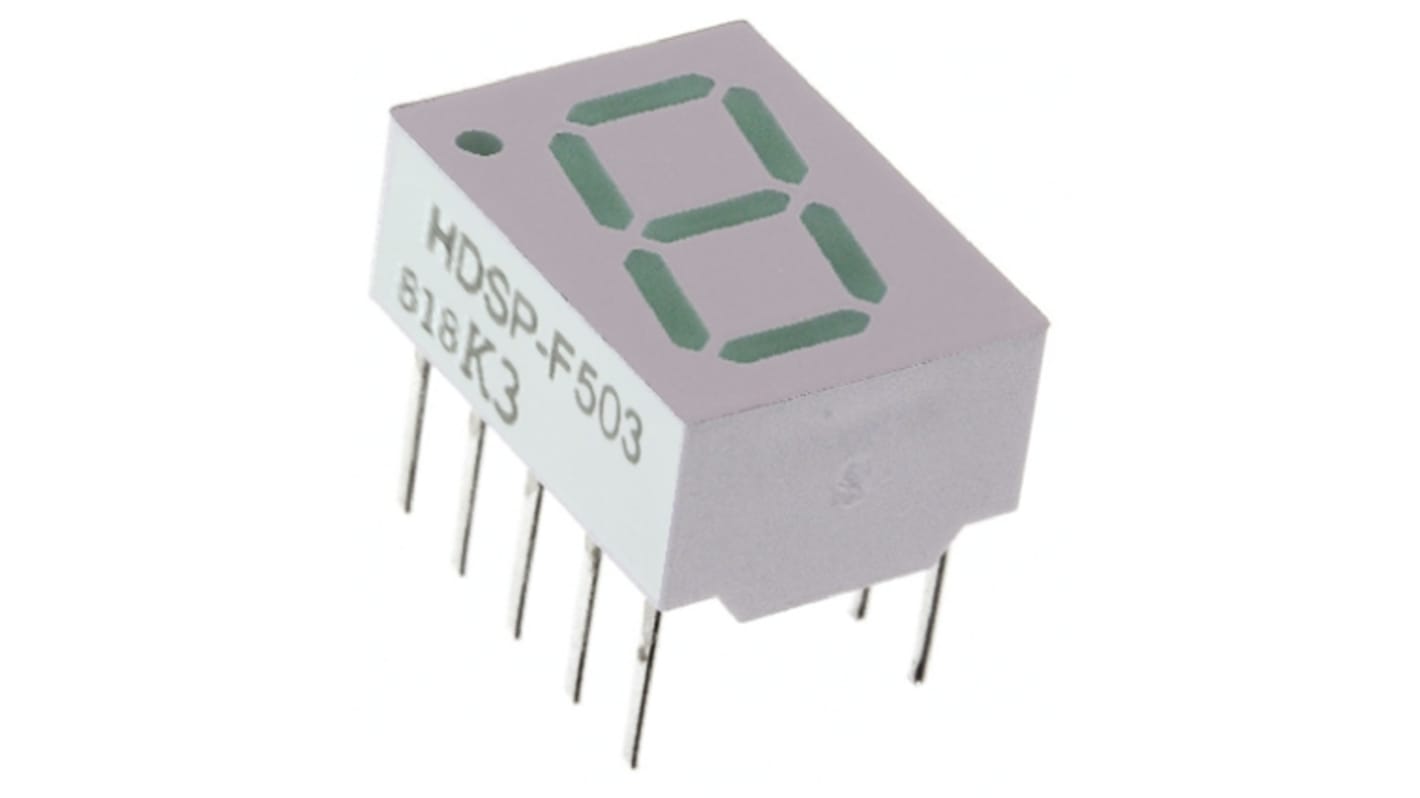

HDSP-F503 Broadcom 7-Segment LED Display, CC Green 3.5 mcd RH DP 10.2mm
- RS Stock No.:
- 246-5500
- Mfr. Part No.:
- HDSP-F503
- Brand:
- Broadcom
19 In Global stock for delivery within 5 working day(s)
39 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$5.61
(exc. GST)
$6.17
(inc. GST)
| Units | Per unit |
| 1 - 49 | $5.61 |
| 50 - 99 | $5.47 |
| 100 + | $5.38 |
- RS Stock No.:
- 246-5500
- Mfr. Part No.:
- HDSP-F503
- Brand:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
Single-digit 7-segment Green LED Displays
A range of single-digit 7-segment Green LED displays from Broadcom (Avago Technologies) in a variety of character heights.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 1 |
| LED Colours | Green |
| Number of Segments | 7 |
| Dominant Wavelength | 571 nm |
| Character Width | 5.6mm |
| Character Height | 10.2mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Depth | 6.4mm |
| External Dimensions | 12.9 x 9.8 x 6.36mm |
| External Height | 12.9mm |
| External Width | 9.8mm |
| Luminous Intensity | 3.5 mcd |
| Colour of Face | Grey |
| Forward Voltage | 2.1 V |
| Maximum Operating Temperature | +100°C |
| Operating Temperature Range | -40 → +100°C |
| Forward Current | 30mA |
| Decimal Orientation | Right Side |
| Minimum Operating Temperature | -40°C |
