- RS Stock No.:
- 178-2987
- Mfr. Part No.:
- HDSP-7503-CD000
- Brand:
- Broadcom
- RS Stock No.:
- 178-2987
- Mfr. Part No.:
- HDSP-7503-CD000
- Brand:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details

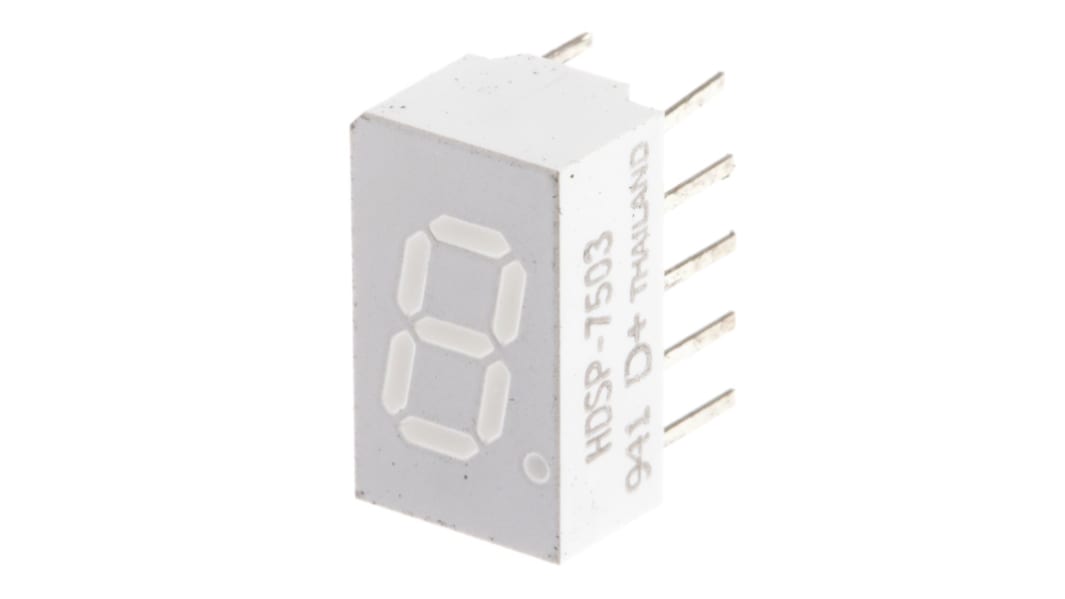

Single-digit 7-segment Red LED Displays
A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Broadcom 7-Segment LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | 7-Segment |
Number of Characters | 1 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 626 nm |
Character Width | 4.2mm |
Character Height | 7.6mm |
Common Connection | Cathode |
Mounting Type | Through Hole |
External Width | 7.6mm |
External Dimensions | 12.7 x 7.6 x 9.91mm |
External Depth | 9.9mm |
External Height | 12.7mm |
Luminous Intensity | 5.4 mcd |
Colour of Face | Grey |
Forward Voltage | 2 V |
Decimal Orientation | Right Side |
Forward Current | 30mA |
Operating Temperature Range | -40 → +100°C |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +100°C |
