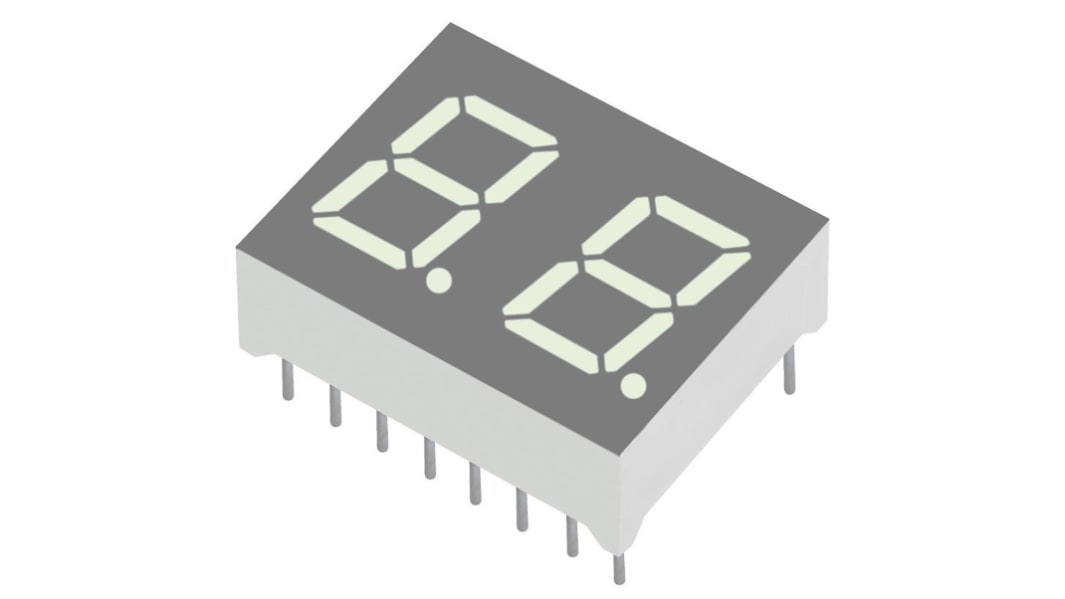

DA04-11SURKWA Kingbright 2 Digit 7-Segment LED Display, CA Red 54 mcd RH DP 10mm
- RS Stock No.:
- 165-4360
- Mfr. Part No.:
- DA04-11SURKWA
- Brand:
- Kingbright
25 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Tube of 25)
$3.414
(exc. GST)
$3.755
(inc. GST)
| Units | Per unit | Per Tube* |
| 25 - 100 | $3.414 | $85.35 |
| 125 + | $3.073 | $76.825 |
| *price indicative | ||
- RS Stock No.:
- 165-4360
- Mfr. Part No.:
- DA04-11SURKWA
- Brand:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Kingbright Dual Digit, 10.0 to 20.3mm
A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
7-Segment LED Displays
Specifications
Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 2 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 6mm |
| Character Height | 10mm |
| Common Connection | Anode |
| Mounting Type | Through Hole |
| External Depth | 16mm |
| External Height | 7mm |
| External Dimensions | 20.2 x 16 x 7mm |
| External Width | 20.2mm |
| Luminous Intensity | 54 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Forward Voltage | 2 V |
| Forward Current | 30mA |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Series | DA04 |
| Decimal Orientation | Right Side |
