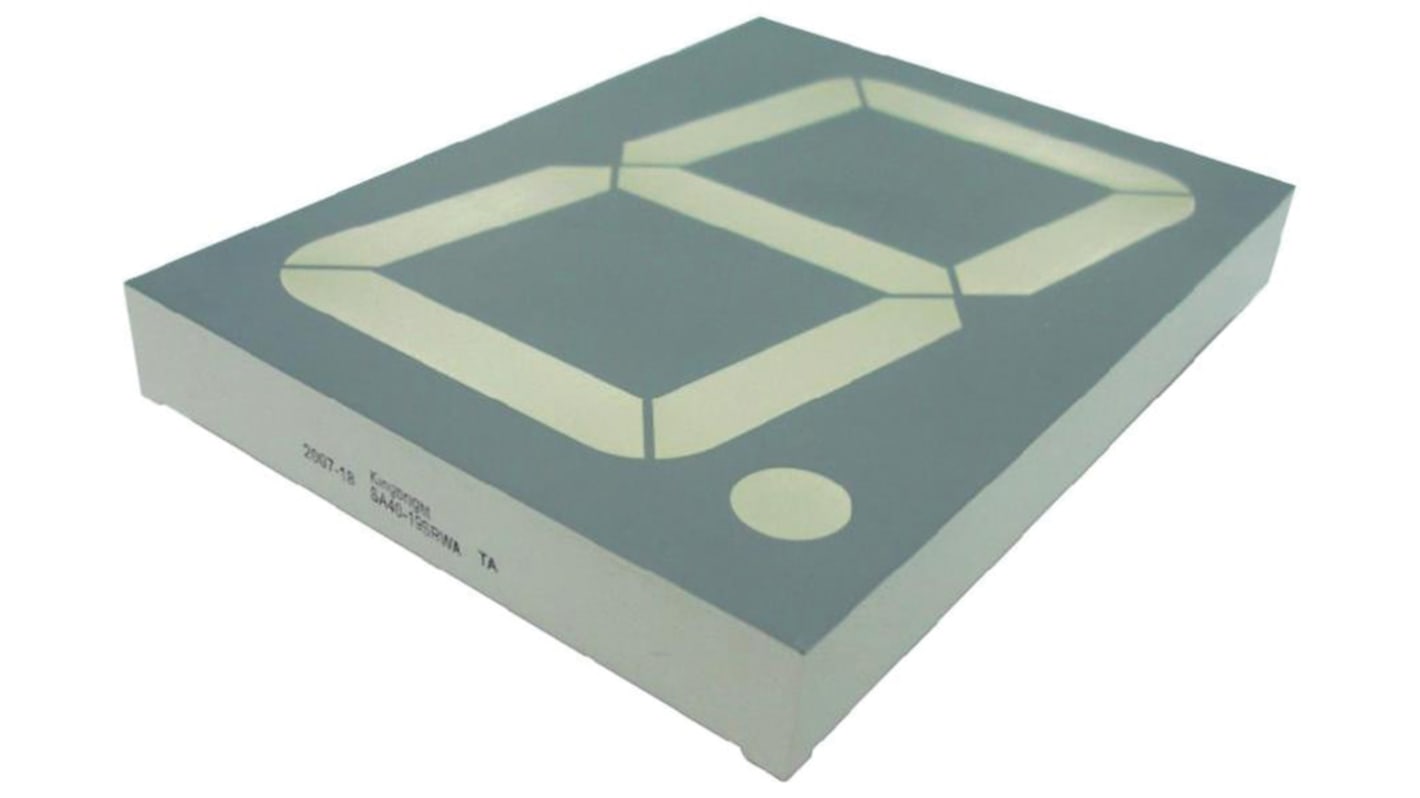

SC40-18SEKWA Kingbright 7-Segment LED Display, CC Orange 500 mcd RH DP 101mm

  • RS Stock No. 165-1520
  • Mfr. Part No. SC40-18SEKWA
  • Manufacturer Kingbright
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Single Digit, 101 & 127mm

A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant

7-Segment LED Displays

Specifications
Attribute Value
Display Type 7-Segment
Number of Characters 1
LED Colours Orange
Number of Segments 7
Dominant Wavelength 601 nm
Character Width 59.5mm
Character Height 101mm
Common Connection Cathode
Mounting Type Through Hole
External Height 15mm
External Depth 122mm
External Width 90mm
External Dimensions 90 x 122 x 15mm
Luminous Intensity 500 mcd
Colour of Face Grey
Power Dissipation 150 mW, 600 mW
Operating Temperature Range -40 → +85°C
Forward Voltage 4.2 V, 8.4 V
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Forward Current 30 mA, 60 mA
Decimal Orientation Right Side
On back order for despatch 07/09/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Tube of 6)
$ 24.435
(exc. GST)
$ 26.879
(inc. GST)
units
Per unit
Per Tube*
6 +
$24.435
$146.61
*price indicative
