KCSC03-105 Kingbright 7-Segment LED Display, CC Red 27 mcd RH DP 7.6mm

RS Stock No.:: 165-1490
Mfr. Part No.:: KCSC03-105
Brand:: Kingbright

KCSC03-105 Kingbright 7-Segment LED Display, CC Red 27 mcd RH DP 7.6mm

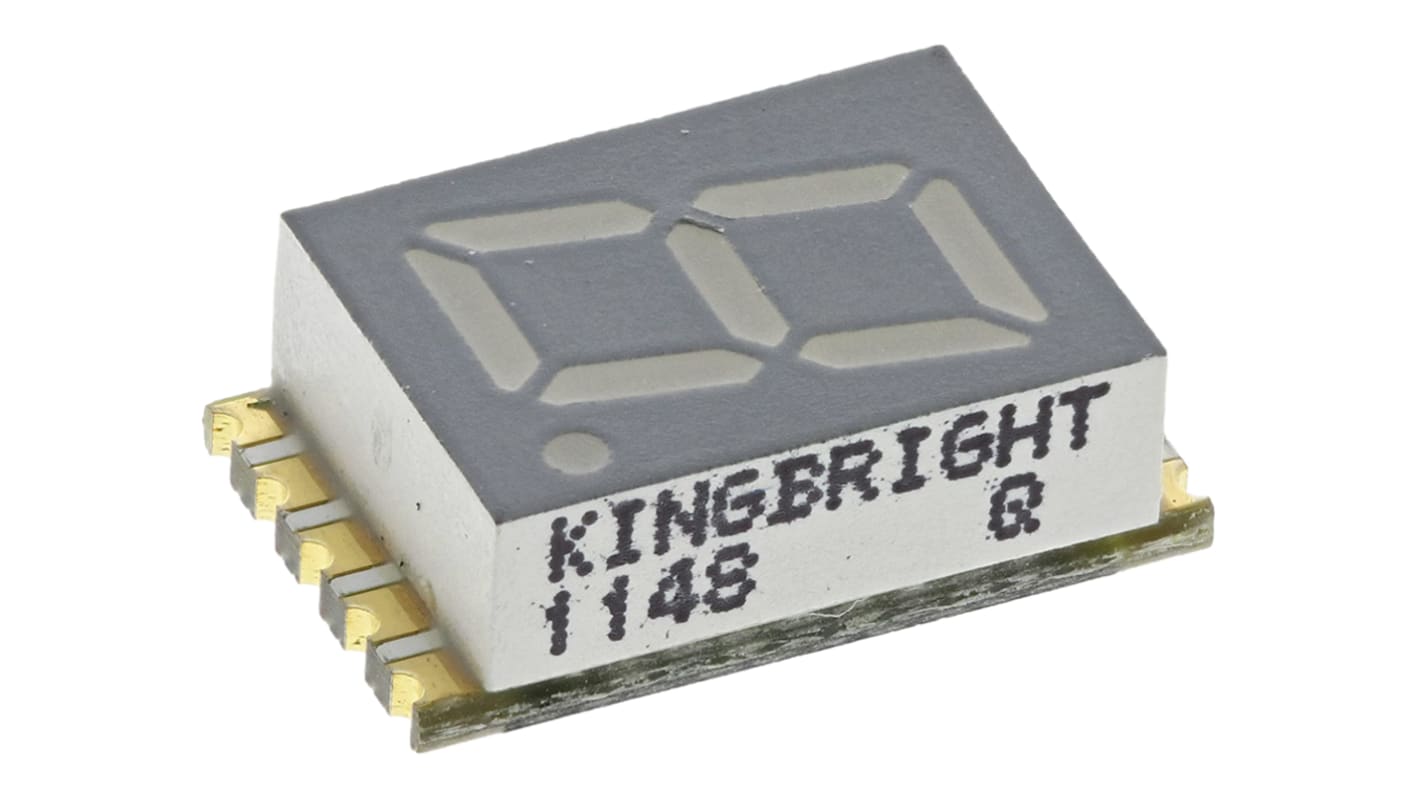

This image is representative of the product range

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each (On a Reel of 550)

$2.792

(exc. GST)

$3.071

(inc. GST)

Units	Per unit	Per Reel*
550 - 2200	$2.792	$1,535.60
2750 +	$2.513	$1,382.15
*price indicative

RS Stock No.:: 165-1490
Mfr. Part No.:: KCSC03-105
Brand:: Kingbright

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Kingbright Single Digit, 5.1 to 8.0mm

A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

7-Segment LED Displays

Specifications

Attribute	Value
Display Type	7-Segment
Number of Characters	1
LED Colours	Red
Number of Segments	7
Dominant Wavelength	630 nm
Character Width	4.2mm
Character Height	7.6mm
Common Connection	Cathode
Mounting Type	Surface Mount
External Dimensions	12 x 7.3 x 3.75mm
External Height	12mm
External Depth	3.8mm
External Width	7.3mm
Luminous Intensity	27 mcd
Colour of Face	Grey
Power Dissipation	75mW
Forward Voltage	2 V
Minimum Operating Temperature	-40°C
Forward Current	30mA
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C
Decimal Orientation	Right Side
