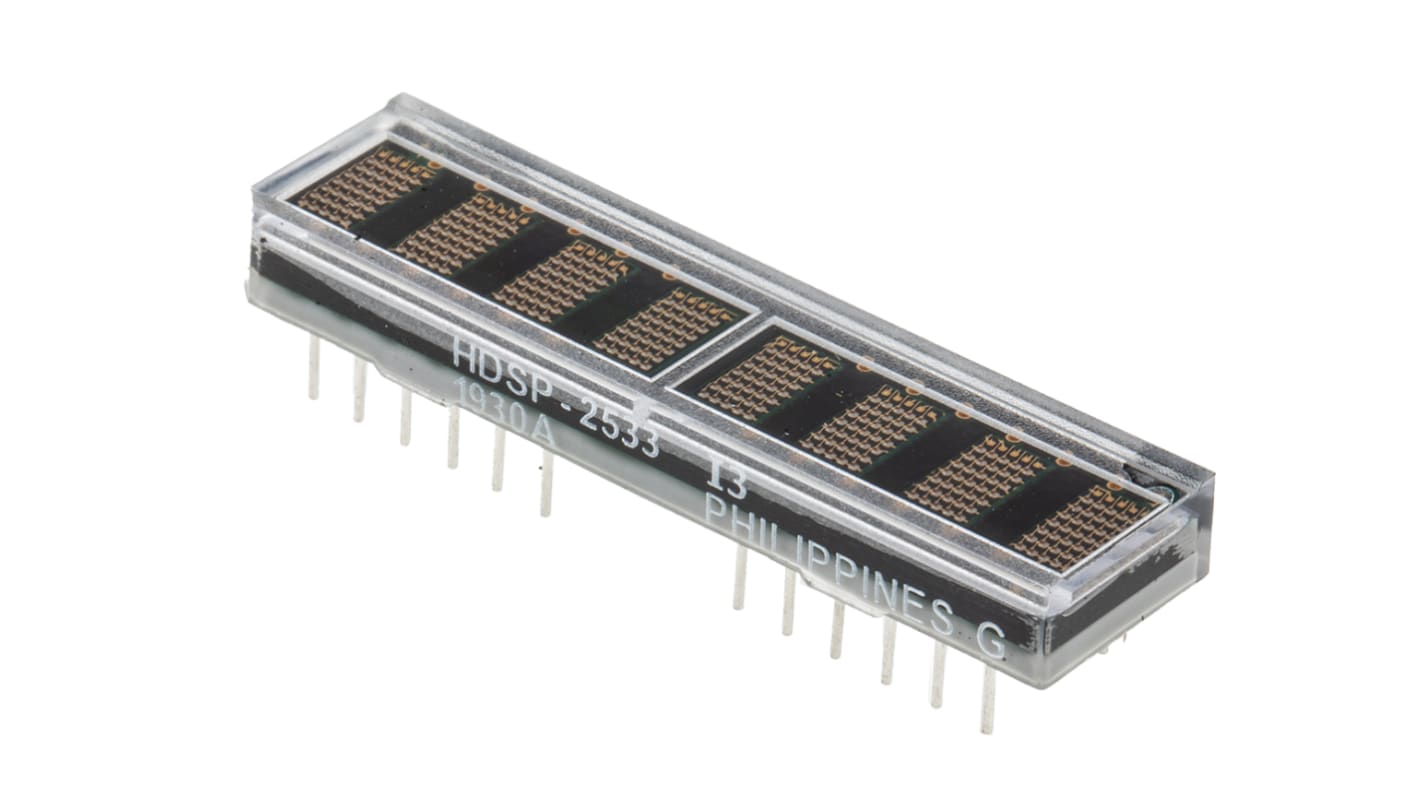

HDSP-2533 Broadcom 8 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Green 7.5 mcd 4.6mm

  • RS Stock No. 826-903
  • Mfr. Part No. HDSP-2533
  • Manufacturer Broadcom
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

8 Digit Alphanumeric Display, Avago HDSP-253x Series

8-digit, 5x7 dot matrix, alphanumeric, programmable 5mm high LED displays.

X-Y stackable
128 ASCII character set
16 user-definable characters
Programmable functions
Multi-level dimming and blanking
Microprocessor bus interface

Applications include: computer peripherals, industrial instrumentation, portable data entry devices, telecommunications, test equipment.

Alphanumeric LED Displays

Specifications
Attribute Value
Display Type Dot Matrix
Number of Characters 8
LED Colours Green
Dominant Wavelength 568 nm
Character Width 2.5mm
Character Height 4.6mm
Mounting Type Through Hole
External Width 42.9mm
External Dimensions 11.4 x 42.9 x 5.3mm
External Height 11.4mm
External Depth 5.3mm
Decoder Included Yes
Luminous Intensity 7.5 mcd
Colour of Face Black
Dots High 7
Dot Matrix Dimensions 7 x 5
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
Minimum Operating Temperature -40°C
Dot Matrix Format 5 x 7
Dots Wide 5
