- RS Stock No.:
- 294-482
- Mfr. Part No.:
- KCDA04-105
- Brand:
- Kingbright
480 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$11.436
(exc. GST)
$12.58
(inc. GST)
Units | Per unit | Per Pack* |
5 - 60 | $11.436 | $57.18 |
65 - 120 | $11.142 | $55.71 |
125 + | $10.996 | $54.98 |
*price indicative |
- RS Stock No.:
- 294-482
- Mfr. Part No.:
- KCDA04-105
- Brand:
- Kingbright
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

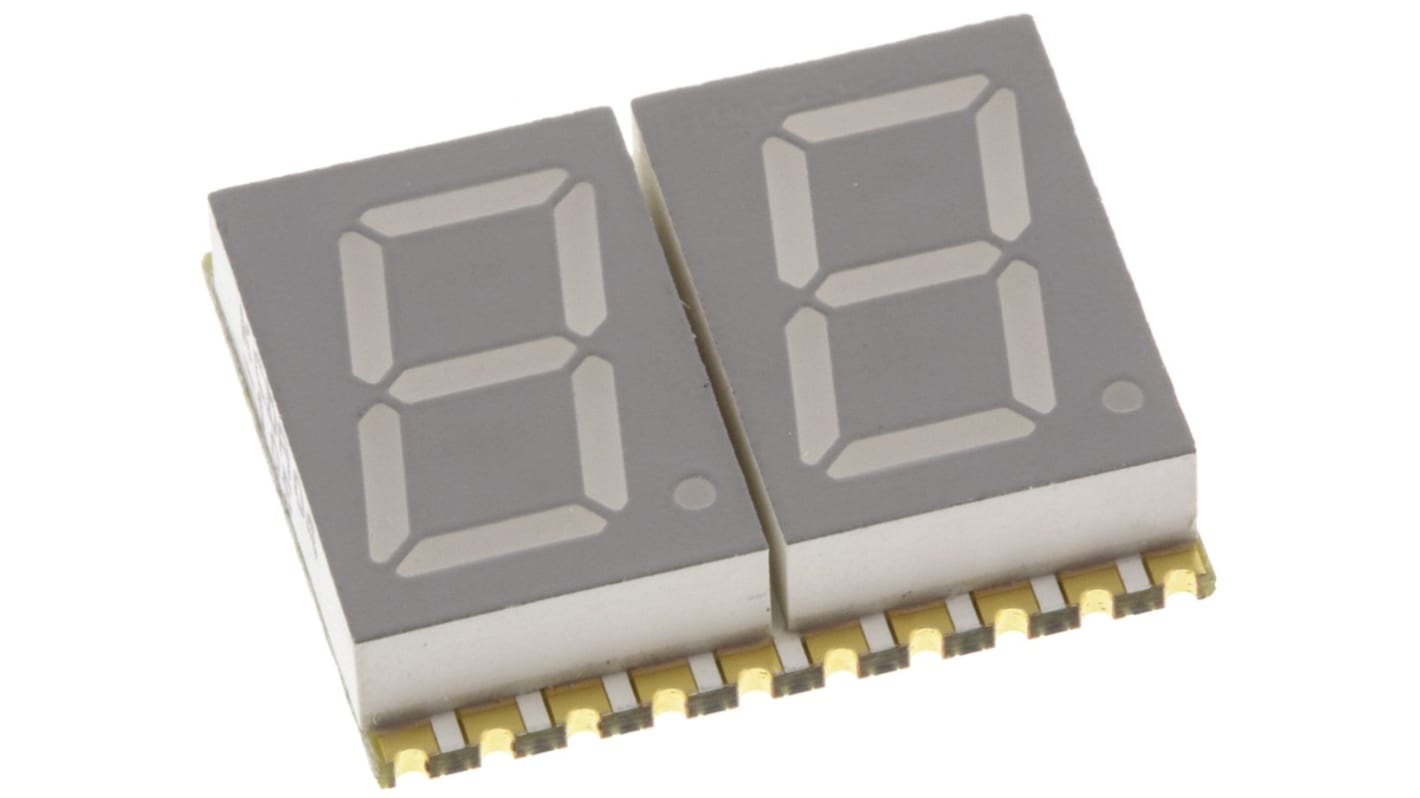

Kingbright Dual Digit, 10.0 to 20.3mm
A range of dual-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
7-Segment LED Displays
Specifications
Attribute | Value |
---|---|
Display Type | 7-Segment |
Number of Characters | 2 |
LED Colours | Red |
Number of Segments | 7 |
Dominant Wavelength | 630 nm |
Character Width | 5.6mm |
Character Height | 10.2mm |
Common Connection | Anode |
Mounting Type | Surface Mount |
External Height | 15mm |
External Width | 18.5mm |
External Depth | 3.8mm |
External Dimensions | 15 x 18.5 x 3.75mm |
Luminous Intensity | 27 mcd |
Colour of Face | Grey |
Power Dissipation | 75mW |
Forward Voltage | 2 V |
Decimal Orientation | Right Side |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Forward Current | 30mA |
