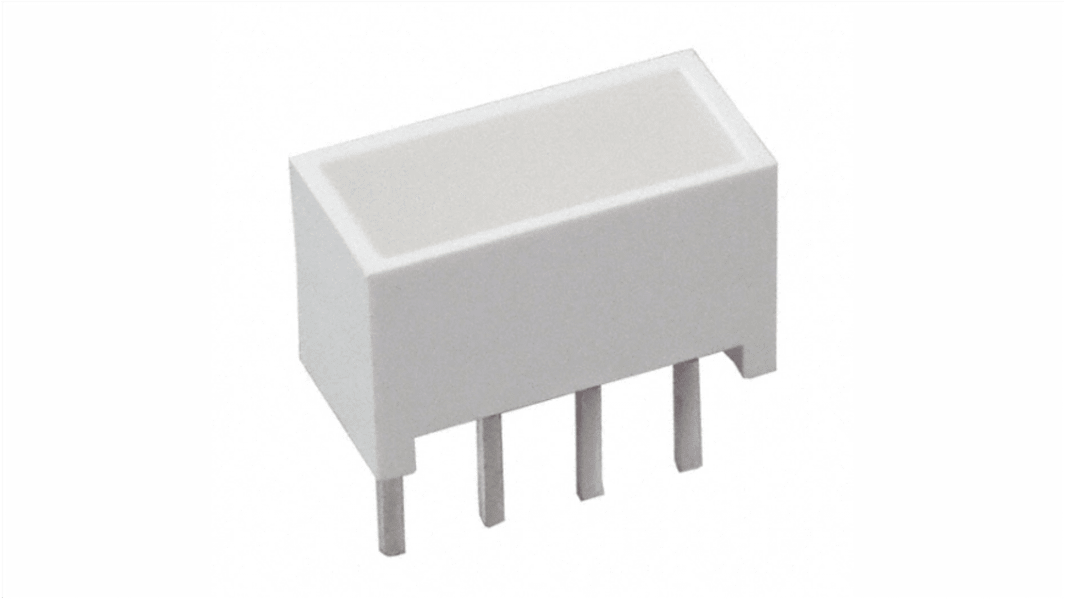

HLCP-A100-BC000 Broadcom Light Bar LED Display, Red 7.5 mcd

RS Stock No.:: 195-013
Mfr. Part No.:: HLCP-A100-BC000
Brand:: Broadcom

HLCP-A100-BC000 Broadcom Light Bar LED Display, Red 7.5 mcd

66 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$3.61

(exc. GST)

$3.97

(inc. GST)

Units	Per unit
1 - 79	$3.61
80 - 159	$3.53
160 +	$3.47

RS Stock No.:: 195-013
Mfr. Part No.:: HLCP-A100-BC000
Brand:: Broadcom

Technical data sheets

HLCP/HLMP Rectangular LED Light Bars - Technical Data Sheet

Legislation and Compliance

Product Details

Broadcom HLCP-X100 and HLMP-2XXX Light Bar Arrays

The HLCP-X100 and HLMP-2XXX range of LED light bars are available in a range of sizes and colours. These LED light bars are ideal for applications which require a bright and uniform light.
HLCP-X100 and HLMP-2XXX light bars have either single or segmented light emitting areas which offer a good on-off contrast. Suitable applications for the HLCP-X100 and HLMP-2XXX light bars include; telecommunications indicators, front panel status indicators and bar graphs.

Features of the HLCP-X100 and HLMP-2XXX LED light bars:
Rectangular LES (single or segment)
Uniform light emitting area
X-Y stackable
Flush mountable

Caution

Observe Anti-static precautions when handling devices.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Broadcom Light Bar Arrays

Specifications

Attribute	Value
Display Type	Light Bar
LED Colours	Red
Number of Segments	1
Dominant Wavelength	637 nm
Mounting Type	Through Hole
External Depth	6.2mm
External Width	10.2mm
External Dimensions	5 x 10.2 x 6.2mm
External Height	5mm
Luminous Intensity	7.5 mcd
Colour of Face	White
Forward Voltage	1.8 V
Maximum Operating Temperature	+100°C
Forward Current	45mA
Operating Temperature Range	-20 → +100°C
Minimum Operating Temperature	-20°C
