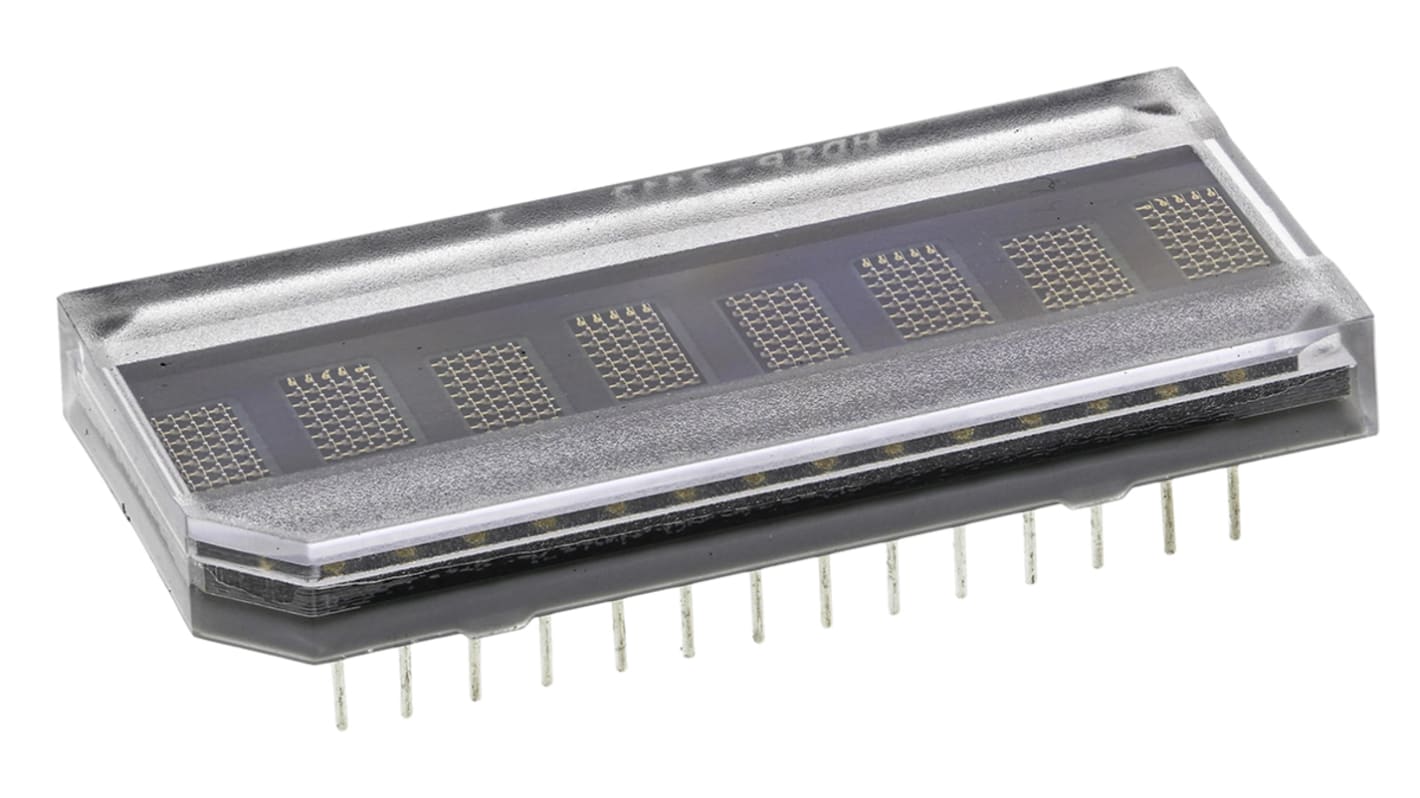

HDSP-2112 Broadcom 8 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Red 7.5 mcd 4.8mm

RS Stock No.:: 194-341
Mfr. Part No.:: HDSP-2112
Brand:: Broadcom

HDSP-2112 Broadcom 8 Digit Dot Matrix LED Display, 7 x 5 Dot Matrix Red 7.5 mcd 4.8mm

On back order for despatch 25/09/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$94.38

(exc. GST)

$103.82

(inc. GST)

Units	Per unit
1 - 2	$94.38
3 - 4	$93.70
5 +	$90.79

RS Stock No.:: 194-341
Mfr. Part No.:: HDSP-2112
Brand:: Broadcom

Technical data sheets

HDSP-210x Series, Eight Character 5mm and 7mm Smart Alphanumeric Displays

Legislation and Compliance

Product Details

8 Digit Alphanumeric Display, Avago HDSP-210x, HDSP-211x, HDSP-250x

8-digit, 5´7 dot matrix, programmable 5mm high LED displays in standard 28-pin d.i.l. packages.

X stackable
128 ASCII character set
16 user-definable characters
Programmable functions
Multi-level dimming and blanking
Microprocessor bus interface

Applications include: industrial instrumentation, test equipment, telecommunications, computer peripherals, portable data entry devices and medical equipment

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Alphanumeric LED Displays

Specifications

Attribute	Value
Display Type	Dot Matrix
Number of Characters	8
LED Colours	Red
Dominant Wavelength	626 nm
Character Width	2.7mm
Character Height	4.8mm
Mounting Type	Through Hole
External Dimensions	19.6 x 42.6 x 5.3mm
External Depth	5.3mm
External Height	19.6mm
External Width	42.6mm
Decoder Included	Yes
Luminous Intensity	7.5 mcd
Colour of Face	Black
Operating Temperature Range	-45 → +85°C
Dots Wide	5
Dots High	7
Dot Matrix Dimensions	7 x 5
Minimum Operating Temperature	-45°C
Maximum Operating Temperature	+85°C
Dot Matrix Format	5 x 7
